2. Setting Up the Printer
INTERFACE CONNECTOR
PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR
INTERFACE CONNECTOR (USB)
For connection to a
host computer.
For connection to a
host computer.
For connection of the
AC adapter.
Never unplug the AC
adapter while the
printer is on.
Connects to peripheral
units such as cash
drawer, etc.
Do not connect this to a
telephone.

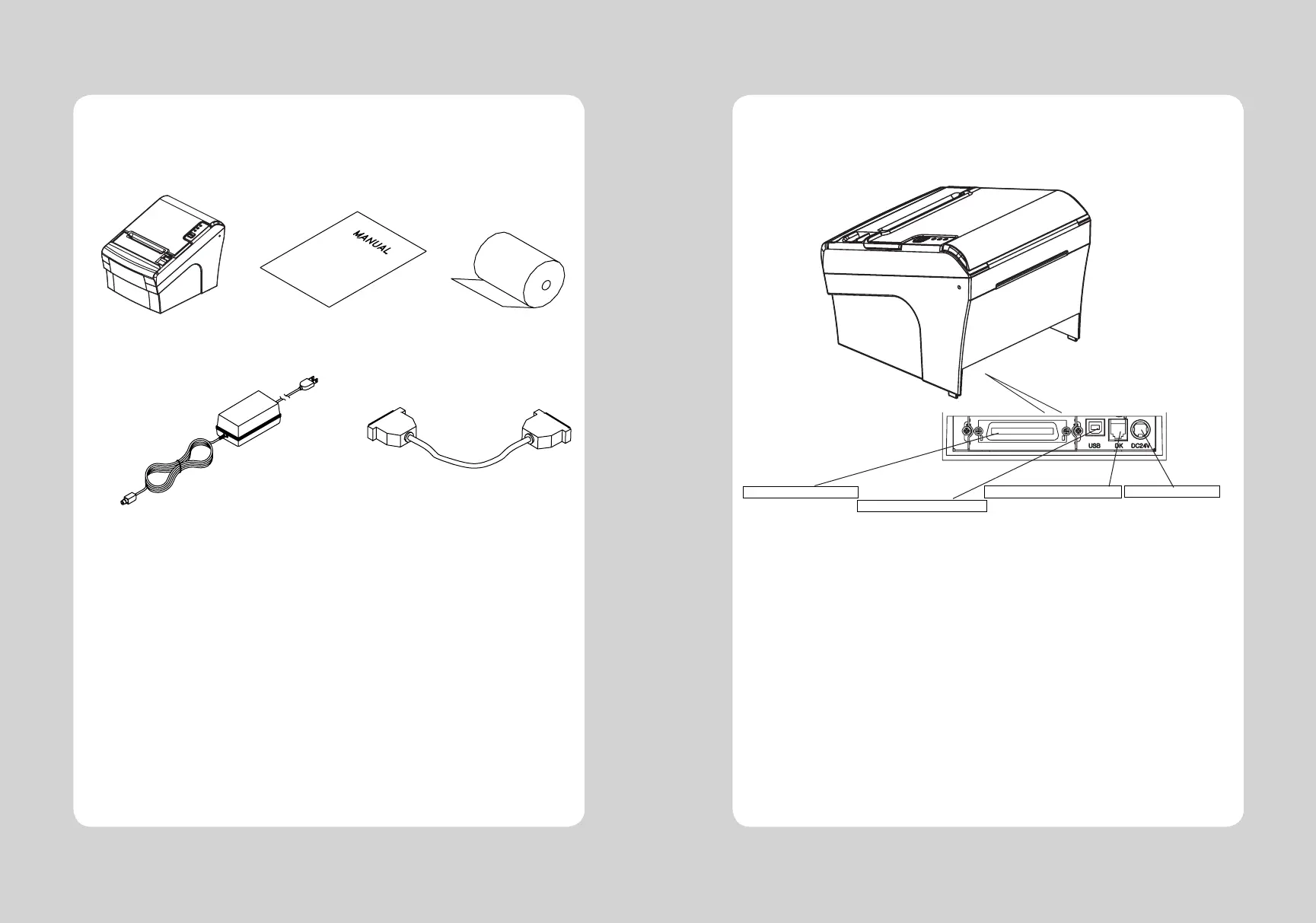

2-1. Unpacking
Your printer box should include these items. If any items are damaged or missing, please contact your
dealer for assistance.
The Printer User's Manual Roll Paper
Adaptor(optional) Interface Cable(optional)
2-2. Connecting the Cables
You can connect up the cables required for printing to the printer.
They all connect to the connector panel on the back of the printer, which is shown below :
Before connecting any of the cables, make sure that both the printer and the computer are turned off.
