Maxim MRT500 - Tine Assembly

26
REPAIR PARTS
TILLER - - MODEL NUMBER MRT500 (MXR500Q)

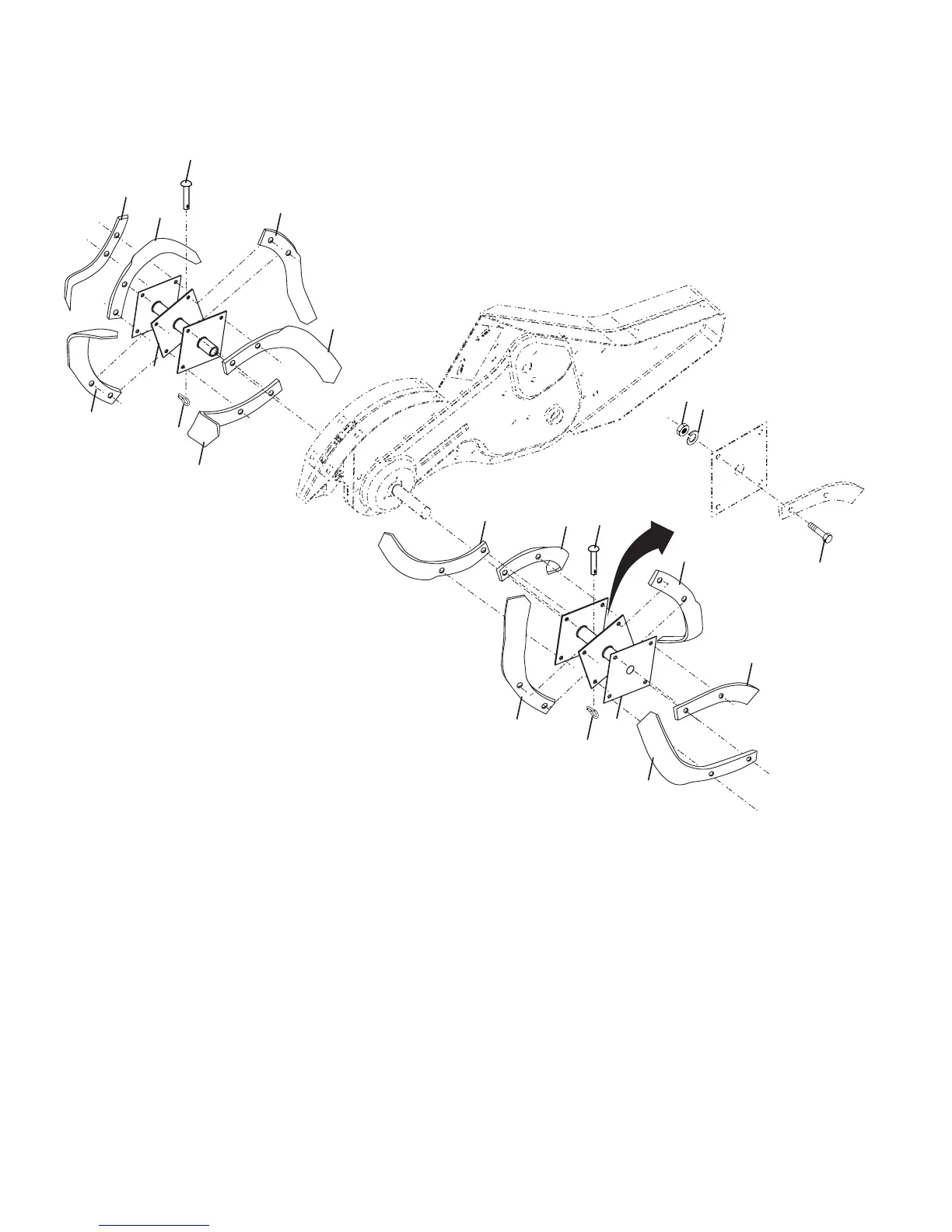

TINE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
8 74610616 Bolt, Hex 3/8-24 x 1
9 4460J Tine, Outer, R.H.
10 132728 Assembly, Hub and Plate, R.H.
11 6555J Tine, Inner, R.H.
KEY PART
NO. NO. DESCRIPTION
1 4459J Tine, Outer, L.H.
2 132673 Clevis Pin
3 6554J Tine, Inner, L.H.
4 3146R Retainer, Spring
5 132727 Assembly, Hub and Plate, L.H.
6 73610600 Nut, Hex 3/8-24
7 10040600 Washer, Lock 3/8
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
