Maxim MRT500 - Tools Required for Assembly; Contents of Hardware Pack; Assembly

4
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Tire pressure gauge
(1) Pair of pliers
(1) 9/16" wrench

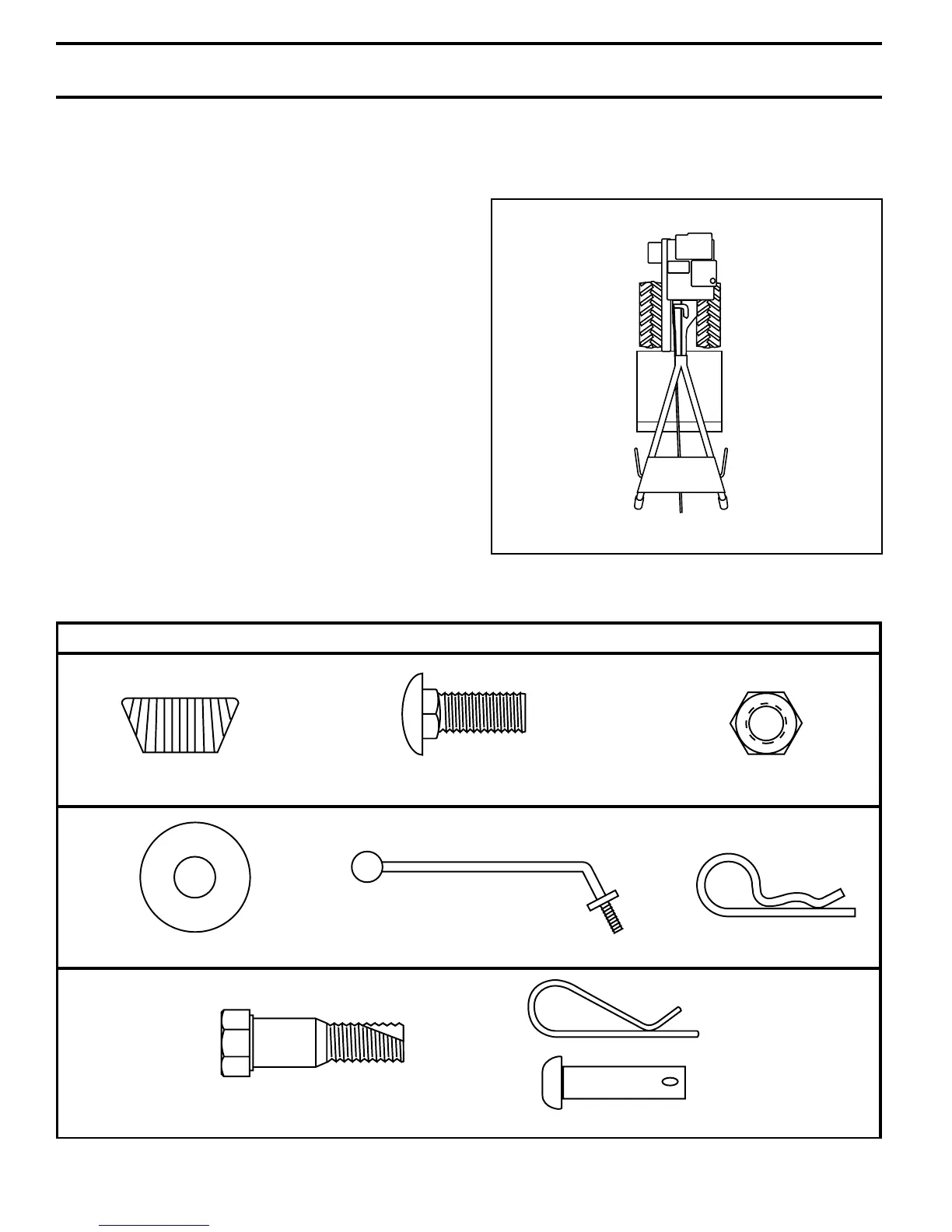

OPERATOR’S POSITION (See Fig. 1)
When right or left hand is mentioned in this manual, it
means when you are in the operating position (standing
behind tiller handles).
Your new tiller has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
To ensure safe and proper operation of your tiller, all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to insure proper tightness.
LEFT
RIGHT
FIG. 1
FRONT
OPERATOR’S
POSITION
(1) Hairpin Clip
(1) Carriage Bolt
3/8-16 UNC x 1 Grade 5
(1) Center Locknut
3/8-16 UNC
(1) Handle Lock Lever
(1) Flat Washer 13/32 x 1 x 11 Gauge
CONTENTS OF HARDWARE PACK
(2) Handle Locks
(1) Pivot Bolt
3/8-16 UNC Grade 5
Extra Shear Pins & Clips
ASSEMBLY
