Maxim RMT55H - Transmission Parts Breakdown

RMT55H
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
800.621-2789
20

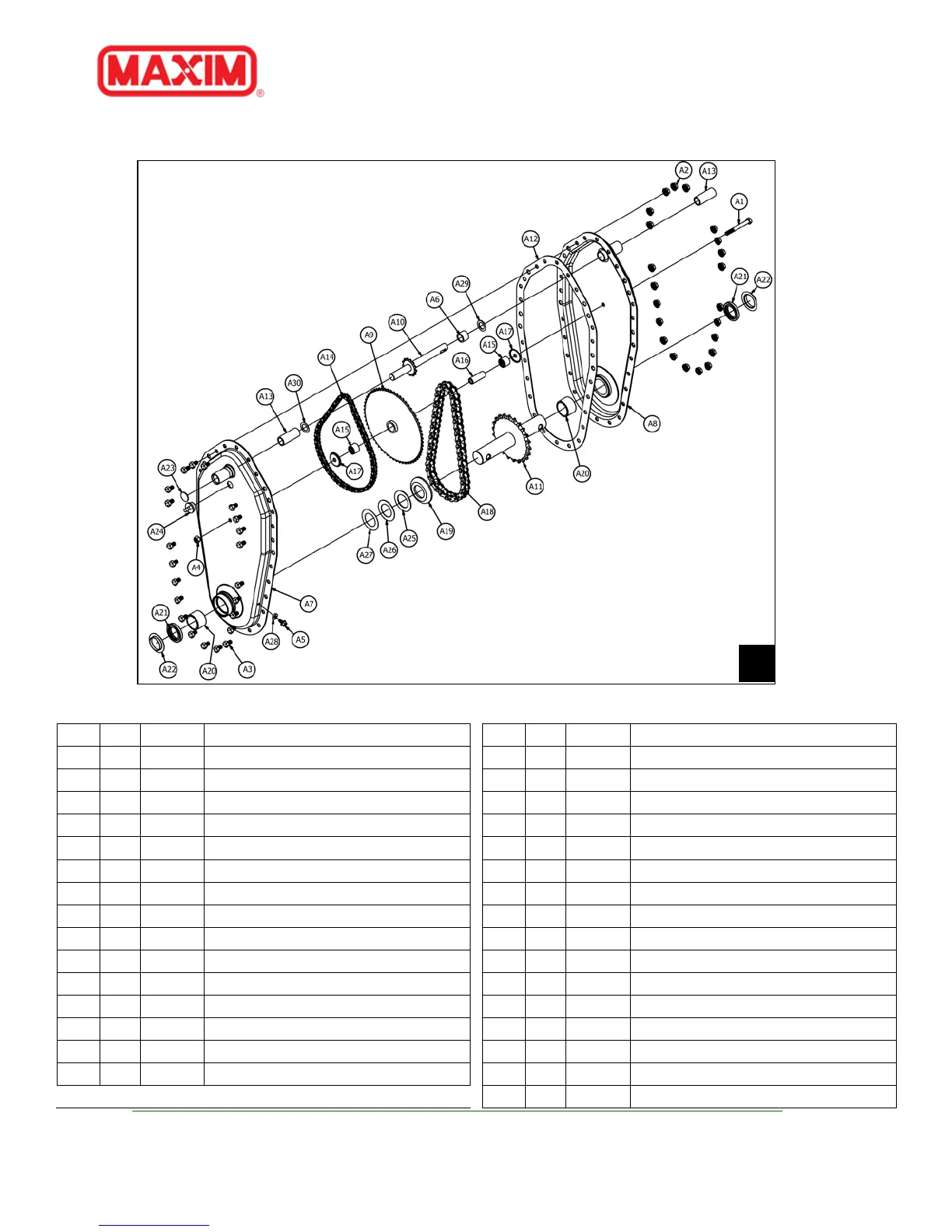

3.3 Transmission Parts Breakdown
Ref.
Qty
Part #
Description
A
1
130400
Complete Transmission Assembly
A1
1
80045
Bolt, HHCS, 5/16-18 x 2 ¾, GR5 Zinc
A2
22
80150
5/16-18 Serrated Flange Nut
A3
22
86032
5/16-18 x ½ Hex Cap Screw GR 5-Zinc
A4
1
86101
5/16 Nylon Lock Nut
A5
1
87277
¼-20 x ½ Hex Ser FL Screw
A6
1
87346
Spacer Input Shaft
A7
1
130692
R.H. Case Side
A8
1
130693
L.H. Case Side
A9
1
162023
Idler Sprocket Cluster
A10
1
162037
Input Shaft/Sprocket (35A13)
A11
1
162038
Output Shaft/Sprocket (50A22)
A12
1
336675
Gasket, Case
A13
2
359293
Bushing, Input (AA811) Bronze
A14
1
359296
Chain, #35 X 70 Links
Ref.
Qty
Part #
Description
A15
2
359297
Idler Bearing, #SCH912
A16
1
359298
Bushing, Idler Cluster
A17
2
359299
Washer, Transmission – Form
A18
1
359302
Chain, #50 X 44 Links
A19
1
359303
Output Shaft Spacer – Form
A20
2
359304
Bearing # SCE2016, Output Shaft
A21
2
359305
Oil Seal, Output Shaft
A22
2
359306
Dust Shield – Form
A23
1
359310
Plug, Expansion
A24
1
359312
Oil Fill Plug
A25
1
359313
Washer, .062 x 20D x 1.265” ID
A26
1
359314
Washer, .0375 x 2” OD x 1.265” ID
A27
1
359315
Washer, .020 x 2” OD x 1.265” ID
A28
1
359336
Washer, Rubber Seal
A29
1
455049
Washer, Shim, 41/64 x 1 x .0625#
A30
1
455062
Washer, Shim 41/64” x 1” x .032”
A
