10

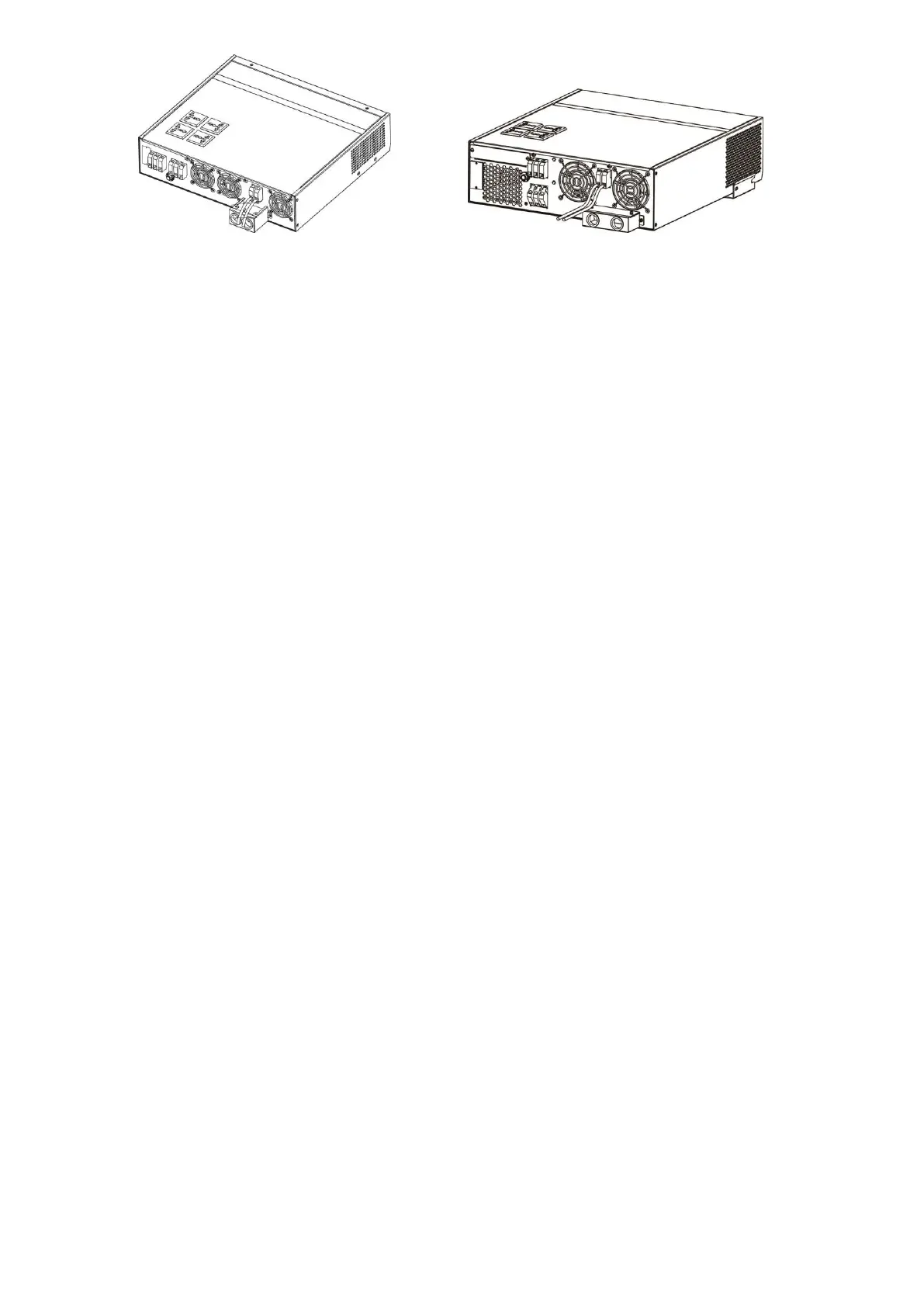

3K 5K
3. Make sure the wires are securely connected.
Communication Connection
The inverter is equipped with communication port either RS-232 or USB. Please use supplied communication
cable to connect to inverter and PC. This communication port is also can be replaced with SNMP card. When
installing with SNMP card in the inverter, it will provide advanced communication and monitoring options.
After communication cable is connected well, insert bundled CD into a computer and follow on-screen
instruction to install the monitoring software. For the detailed software operation, please check user manual of
software inside of CD.
