OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
to turn on the unit.

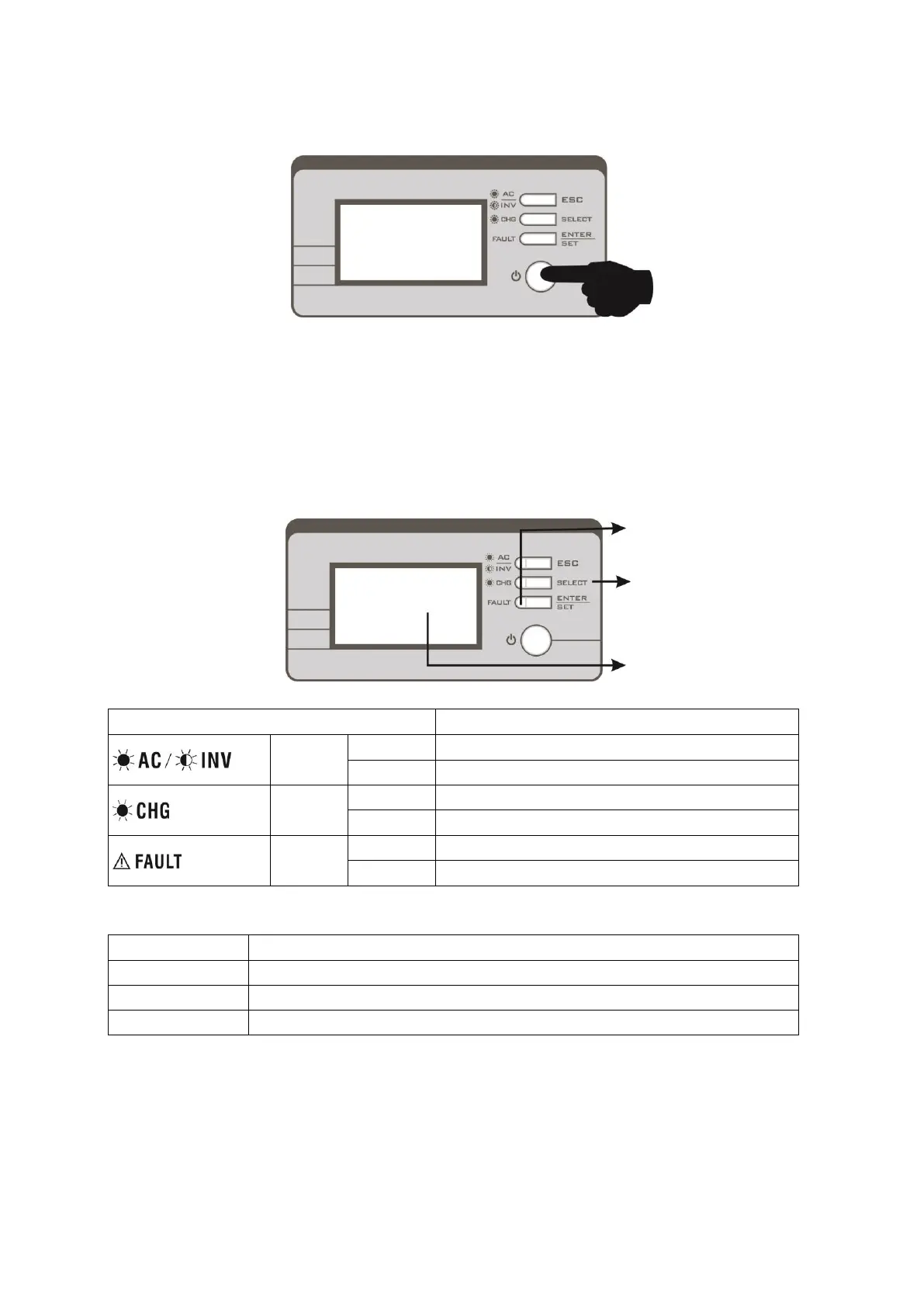

Operation and Display Panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three LED indicators, three function keys and a LCD display, indicating the operating status and
input/output power information.
LED Indicators
LED Indicator
Messages
Green
Solid On
Output is powered by utility in Line mode.
Flashing
Output is powered by battery or PV in battery mode.
Green
Solid On
Battery is fully charged.
Flashing
Battery is charging.
Red
Solid On
Fault occurs in the inverter.
Flashing
Warning condition occurs in the inverter.
Function Keys
Function Key
Description
ESC
To exit setting mode
SELECT
To go to next page or next selection
ENTER
To confirm the selection in setting mode or enter setting mode
LED indicators
Function keys
LCD display
