50%> Load > 20%
< 1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
> 1.983
Load < 20%
< 1.867V/cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
> 2.033

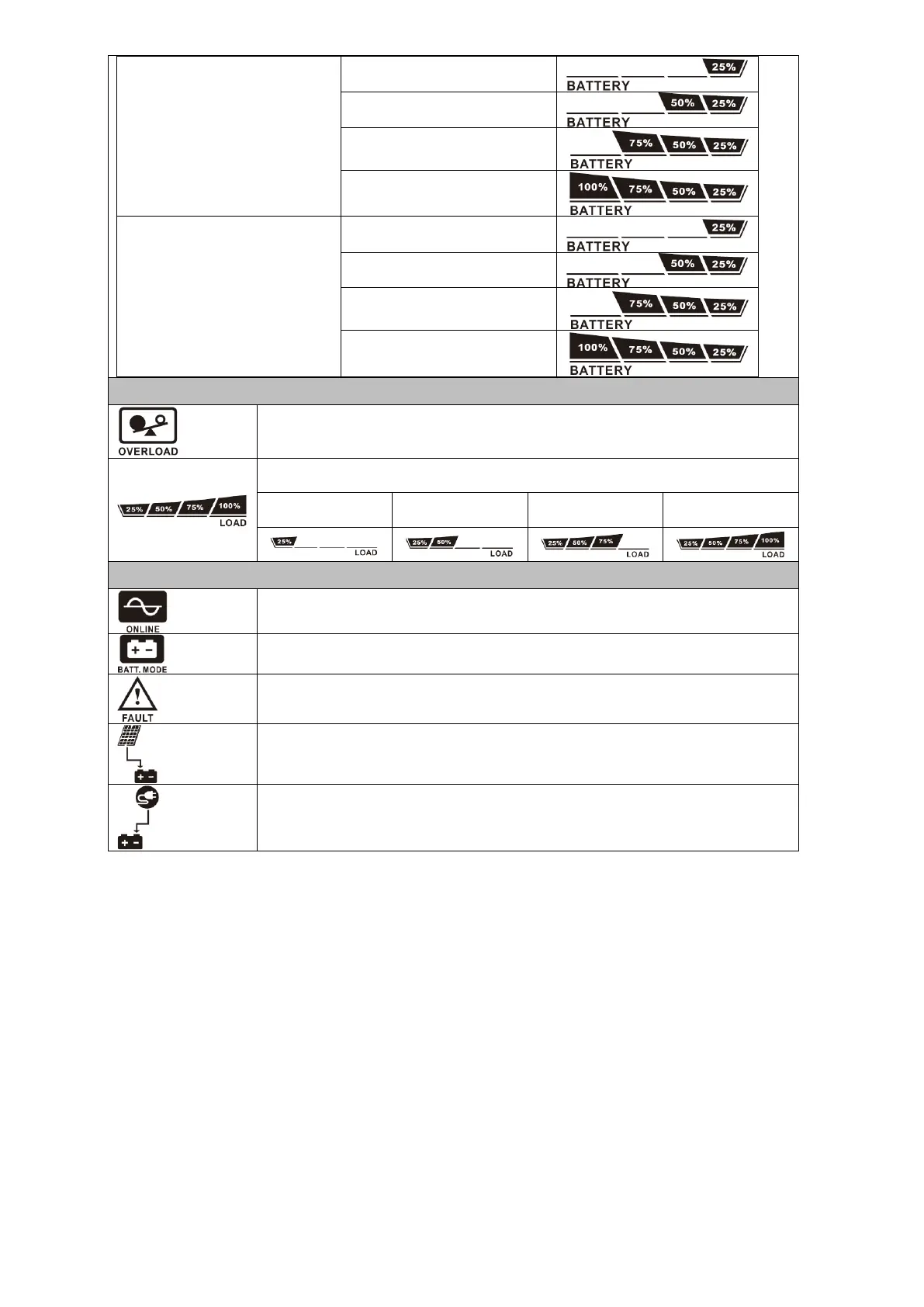

Load Information
Indicates unit is overload.
Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.
0%~25%
25%~50%
50%~75%
75%~100%
Mode Operation Information
Indicates the load is supplied by utility power.
Indicates the load is supplied by battery or solar.
Indicates alarm or fault is happened.
Indicates the solar charger circuit is working.
Indicates the utility charger circuit is working.
