Maxima 3KVA - Three Phase Operation Diagrams

35

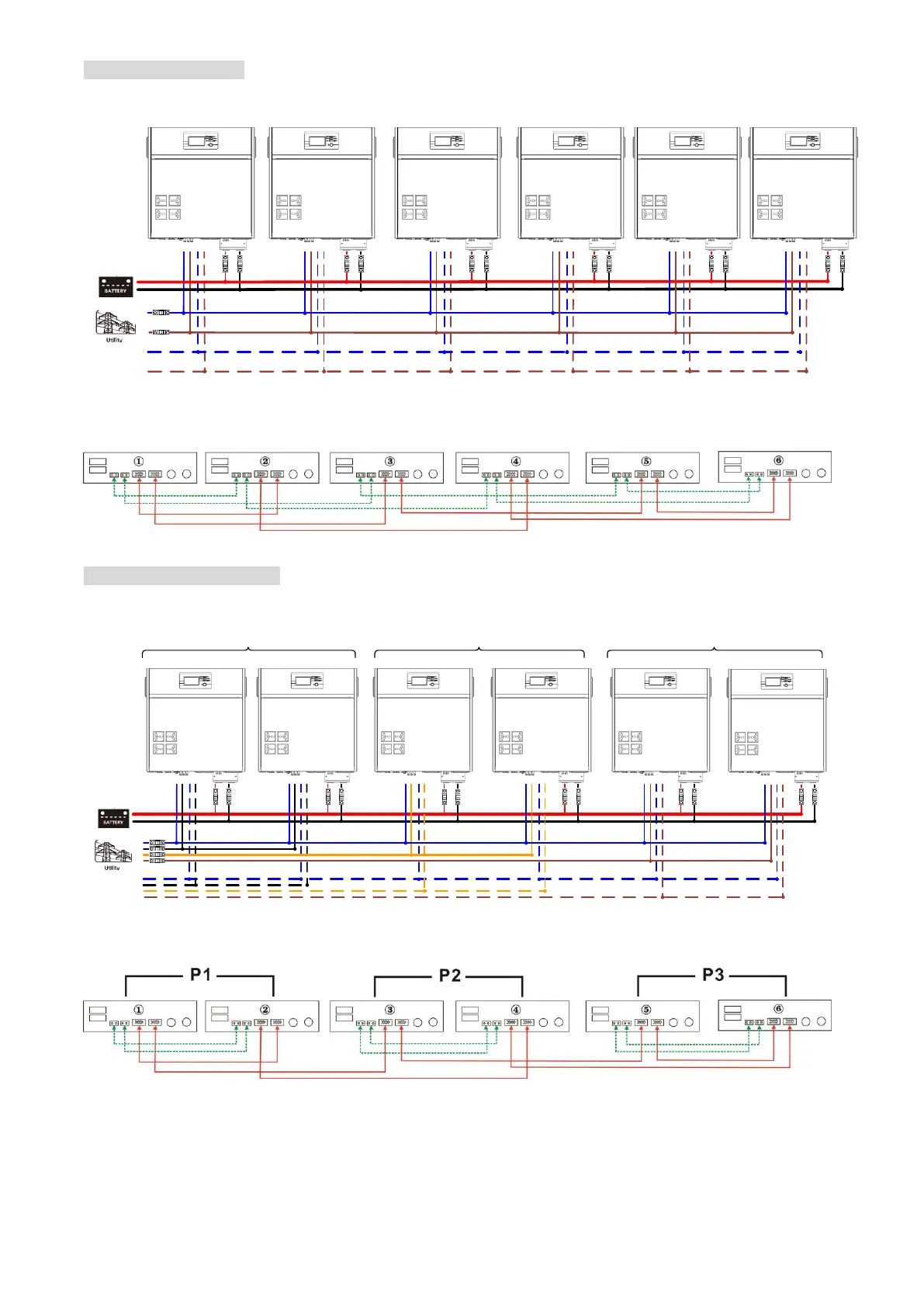

Six inverters in parallel:
Power Connection
N
L
N
L
Load
Communication Connection
5-2. Support 3-phase equipment
Two inverters in each phase:
Power Connection
N
L1
L2
L3
N
L1
L2
L3
Load
P1 P2 P3
Communication Connection
