Maxima 3KVA - Page 39

37

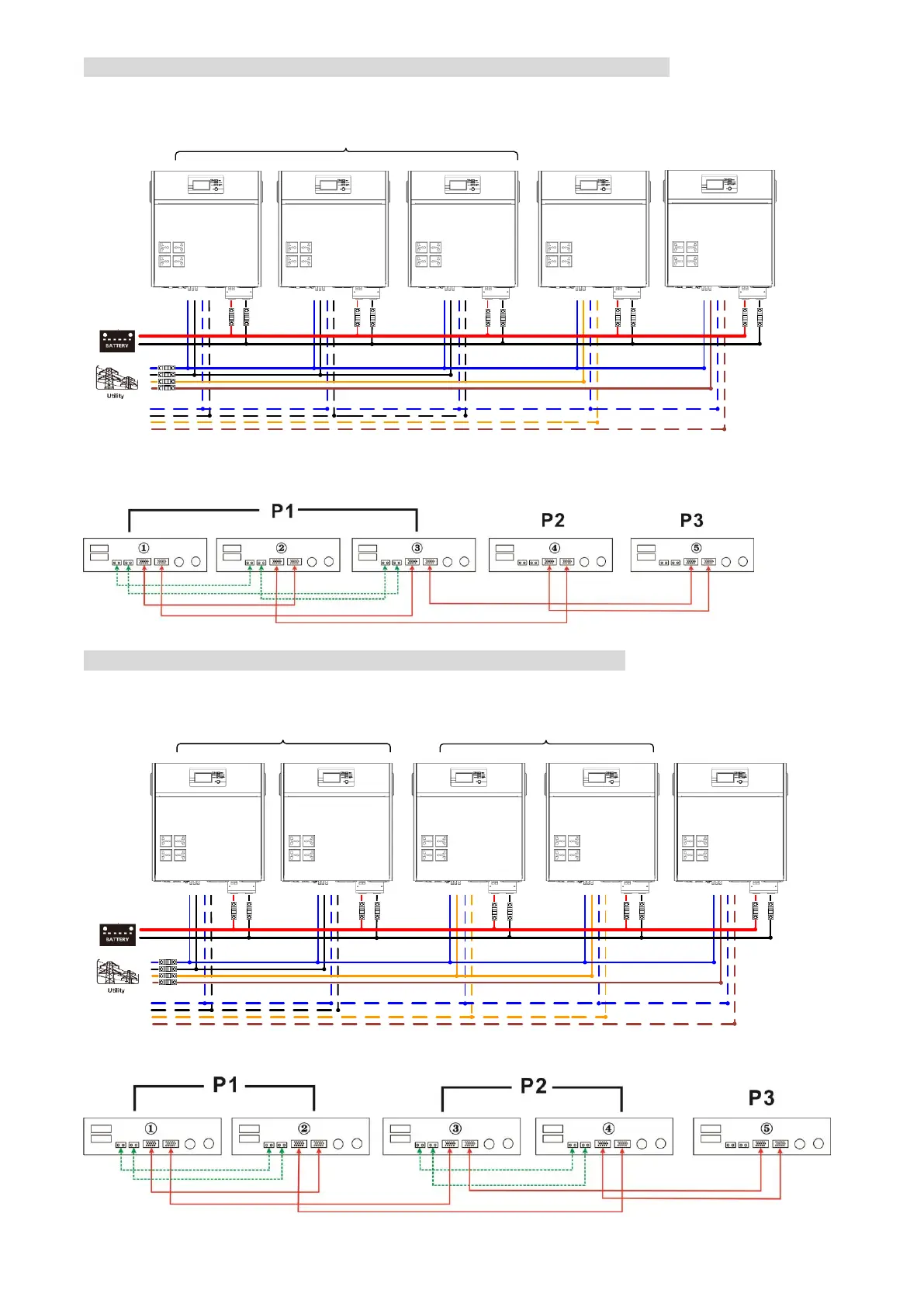

Three inverters in one phase and only one inverter for the remaining two phases:
Power Connection
N
L1
L2
L3
N
L1
L2
L3
Load
P1
P2
P3
Communication Connection
Two inverters in two phases and only one inverter for the remaining phase:
Power Connection
N
L1
L2
L3
N
L1
L2
L3
Load
P1 P2 P3
Communication Connection
