13
KNOW YOUR SCROLL SAW
12
KNOW YOUR SCROLL SAW
SAW BLADE
The saw blade furnished with the scroll saw is a carbide-tipped combination blade that is
5" (12.7 cm) long, 2.6 mm wide and has 18 teeth per inch. It is used for producing a good
quality cut for many applications.
BLADE WIDTH
The width of the blade is the distance from the tip of a tooth to back of the blade.
BLADE THICKNESS
The blade thickness is the distance between sides of blade. A thicker blade has more
rigidity and stronger teeth. A narrow, thick blade is used to make curves and a wide, thin
blade is used to make long, straight cuts.
BLADE PITCH
The blade pitch is the number of teeth per inch or tooth size. A blade with more teeth per
inch produces a smoother cut. The type of material to be cut determines the number of
teeth that should be in contact with the workpiece.
FREEHAND
Performing a cut without the workpiece being guided by a fence, mitre gauge or other
aid. Workpiece must supported by the work table.
ON/OFF SWITCH
The On/Off switch located on the top of the scroll saw, allows the operator to turn
On/Off the scroll saw easily, and it turns the dust blower on and off.

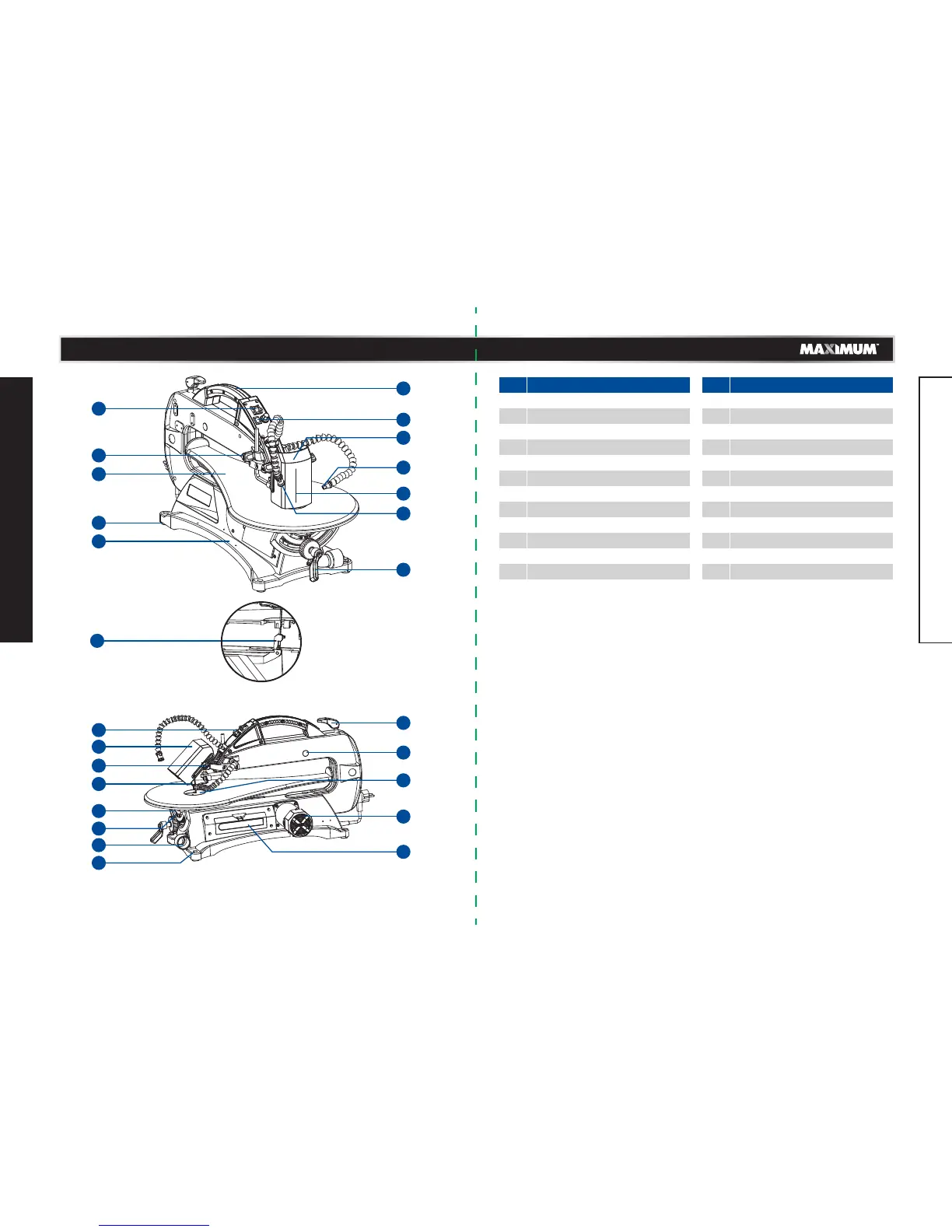

No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Description
Carry handle
LED light switch
Upper blade holder
Dust blower
Saw blade
LED light
Bevel adjustment knob
Blade tension knob
Rubber bearing cover
Table insert
Motor
Storage compartment
Mounting hole
No.
14
15
16
17
18
19
20
21
22
23
24
25
26
Description
Dust extraction port
Bevel indicator
Bevel scale
Drop foot
Blade guard lock knob
Blade guard
Variable speed knob
Lower blade holder
Base
Rubber foot
Work table
Drop foot lock knob
On/Off switch
26
20
24
25
21
17
16
15
18
19
14
13
2
1
5
6
7
8
9
10
12
11
3
4
22
23
model no. 055-6706-6 | contact us 1-800-689-9928model no. 055-6706-6 | contact us 1-888-670-6682
