IMPORTANT FLOW DIVIDER INFORMATION
There is a Hydraulic OUT Port on either side of the Flow Divider, and a Hydraulic IN Port on the lower Ports. Depending
on the Flow Divider that came with your Lift, the Ports may be congured dierently.
Your Lift will not work right if the Flow Divider is installed incorrectly!

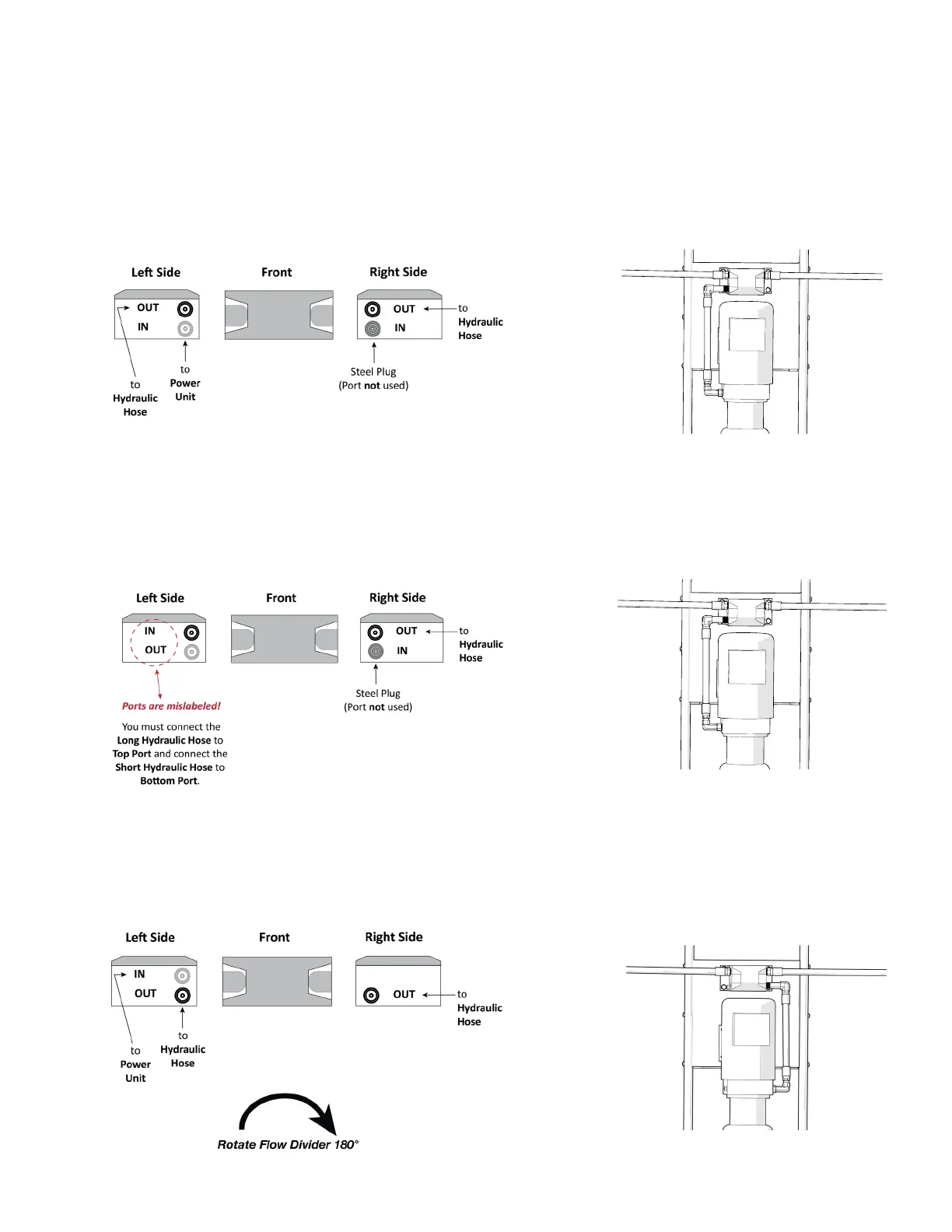

If your Flow Divider looks like the graphic below, connect the two Long Hydraulic Hoses to the top OUT Ports, and the
Short Hydraulic Hose connects to the Bottom Left IN Port.
If your Flow Divider looks like the graphic below, the Left side Ports are mislabeled. Do not connect the Short
Hydraulic Hoses to the Top Left Port. Connect the Short Hydraulic Hose connects to the Bottom Left Port, and two
Long Hydraulic Hoses connect to the Top Ports on either side of the Flow Divider.
If your Flow Divider looks like the graphic below, rotate the Flow Divider 180° so that the side with an IN and
OUT Port is on the right side, and then connect the Short Hydraulic Hose to the Lower IN Port; the other end of the
Short Hose connects to the Pressure Port on the right side of the Power Unit..
