MaxJax M6K - Installing the Safety Release Assemblies

16
1. Install the Safety Release Handle on the Safety Weldment Pin.
2. Slide the Safety Release Assembly onto the Safety
Release Plate on the Post.
3. Insert the Clevis Pin through the Torsion Spring.
4. Insert the Clevis Pin through the Safety Weldment and
the Release Plate.
5. Insert the second Torsion Spring on to the Clevis Pin.
6. Attach the C Ring to the Clevis Pin.
7. Repeat Steps 1 through 6 for the other Post.
C Clip
(P/N 5540109)
Clevis Pin
(P/N 5505076)

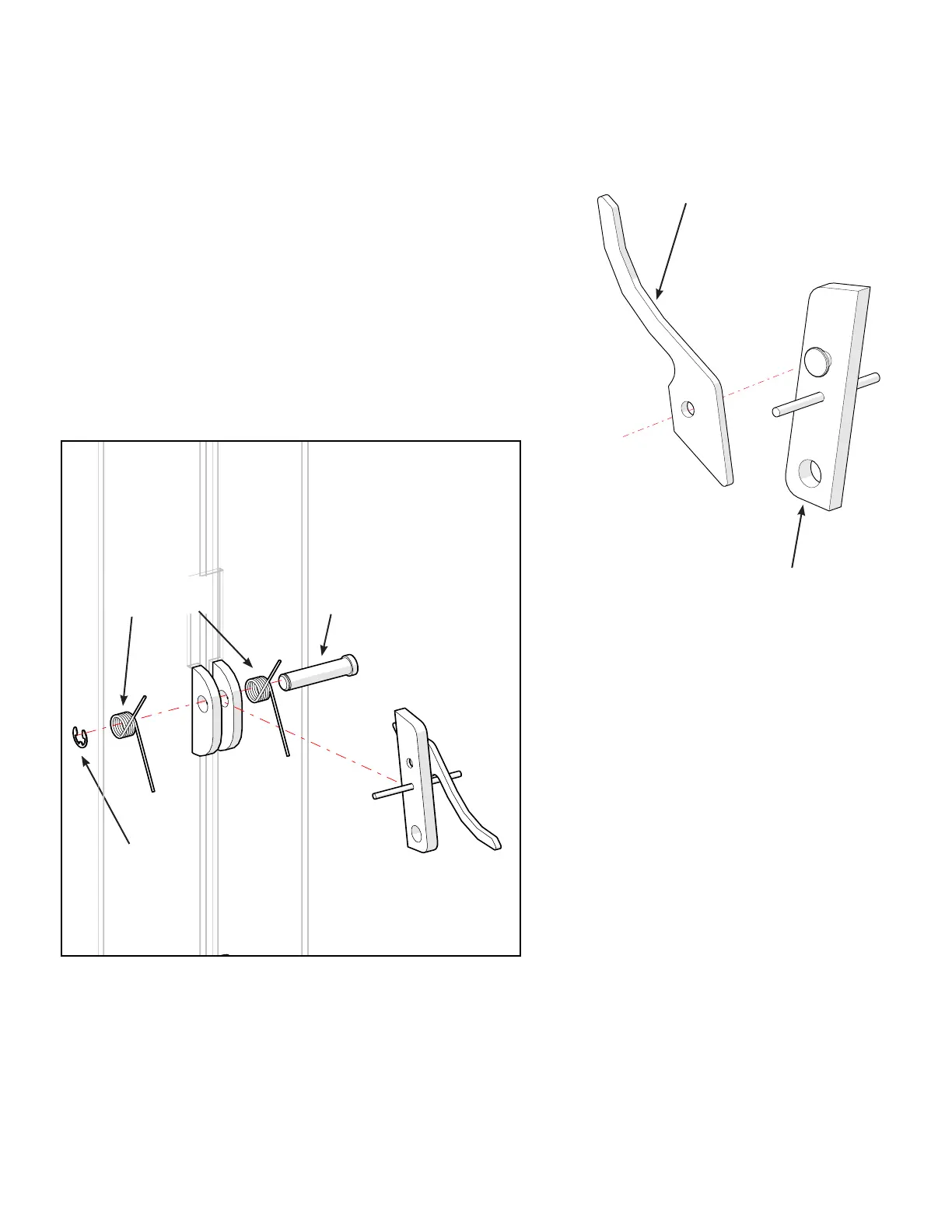

STEP 10
INSTALLING THE SAFETY RELEASE ASSEMBLIES
Safety Release Handle
(P/N 5737159)
Safety Weldment
(P/N 5735812)
Torsion Spring
(P/N 5540075)
