8

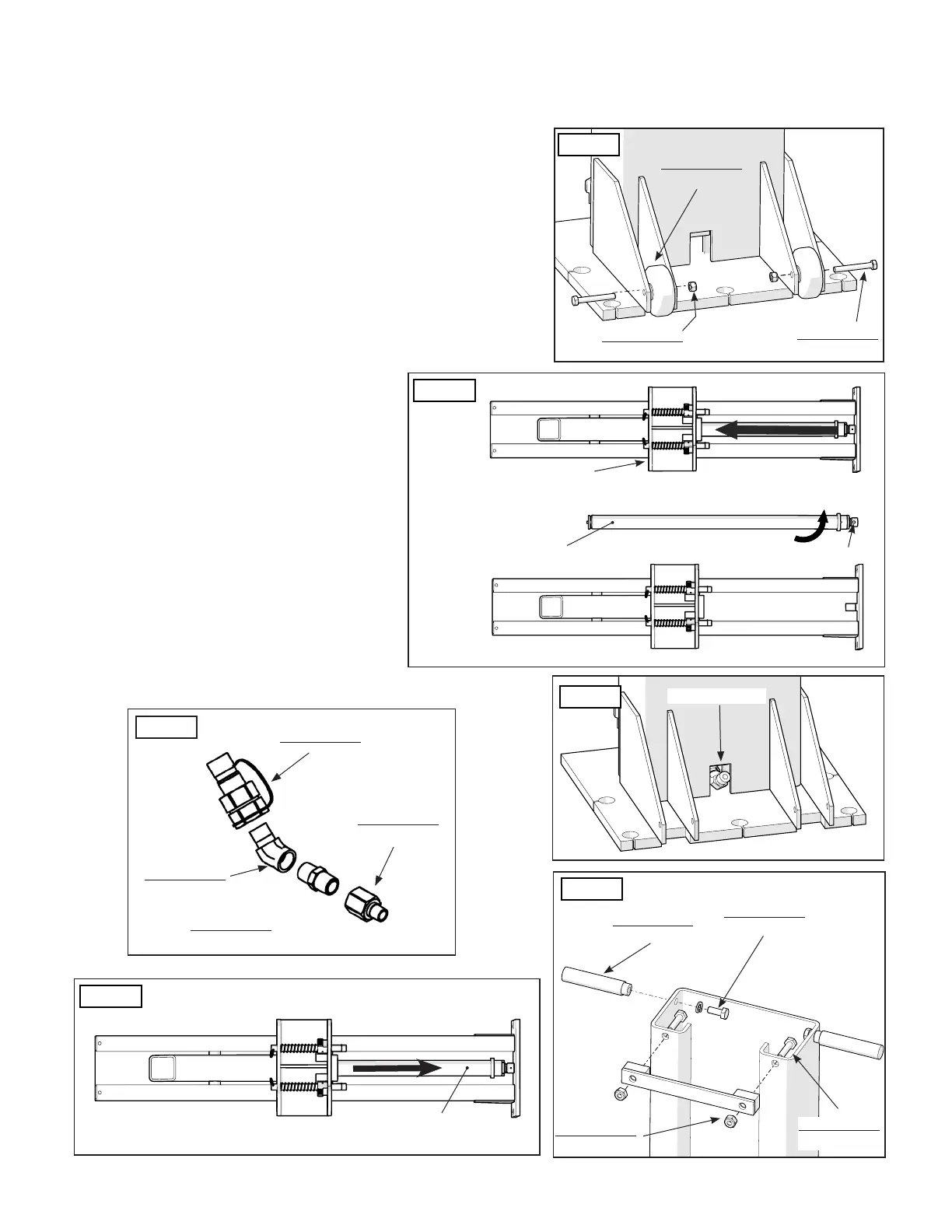

Remove the 6mm Allen Bolt and install the Cylinder Fittings.
Assemble all Fittings together, including the Quick Disconnect,
preferably in a vice. Then, install the Fitting Assembly into the
Hydraulic Cylinder. (See Figure 3)
STEP 3
INSTALLING THE HYDRAULIC CYLINDERS
Install the Post Wheels (P/N 5575061) using M8x55 Hex Head Bolts
(P/N 5530377) and M8 Nylon Nuts (P/N 5535001) onto each Post.
(See Figure 1)
Slide the Fitting Assembly through the
access hole located on the backside of
the Posts. (See gure 4)
Slide the Lift Head until it rests rmly on
the Base Plate, then carefully stand up
each post.
1.
2.
4.
3.
Fig. 2
Install the Post Handles (P/N 5505071) with
M10 x 25 Hex Head Bolts (P/N 5530738) with
M10 Washers (P/N 5545200) and install the
Post Straps Assemblies (P/N 5601487) with
M10 x 40mm Hex Bolts and M10 Nylon
Lock Nuts. (See Figure 6)
Slide the Hydraulic Cylinders through the
Lift Head tube. (See gure 5)
P/N 5505071
4
P/N 5530738
4
P/N 5535013
4
P/N 5530302
4
P/N 5550209
1
P/N 5550076
1
P/N 5550077
1
P/N 5550014
1
5.
Fig. 5
Fig. 3Fig. 3
Fitting Assembly
6.
Turn the Posts over and lay them down with the open side up.
Slide the Lift Head to the top of the Post. Remove the Hydraulic
Cylinder from the Post. Rotate Hydraulic Cylinder to access the
Hydraulic Cylinder Port. (See Figure 2)
7.
Fig. 4
Fig. 6
Fig. 1
P/N 5530377
4
P/N 5575061
2
P/N 5535001
4
Lift Head
Hydraulic
Cylinder
Hydraulic
Cylinder
2a.
2b.
Cylinder
Port
