Installing the Raceway Trim
Pull down one Raceway Cover on each PL4848 1.
Panel (except Panels 1 & 2) by gently pulling
on the top of the Raceway Covers.

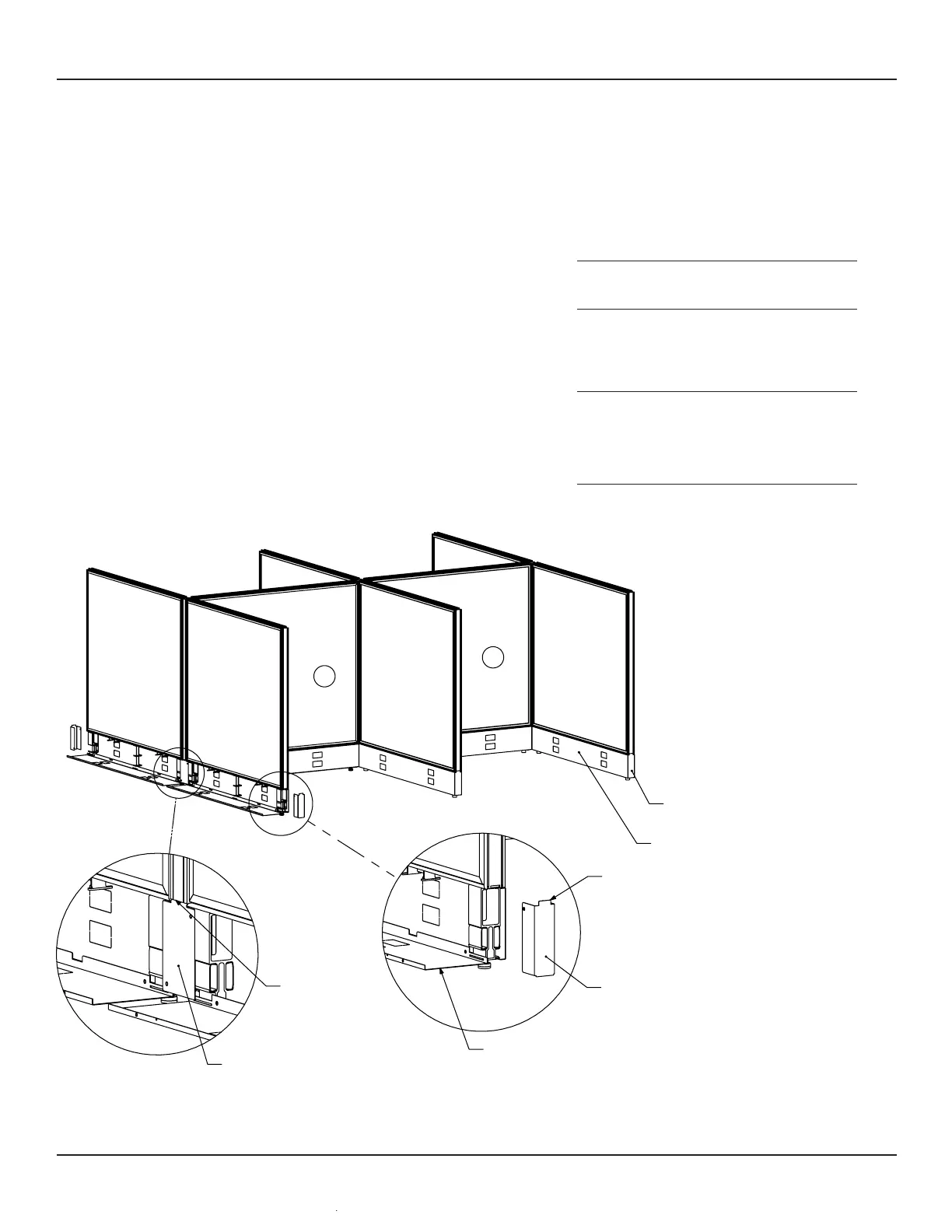

Install one EC1E Raceway End Cover onto the 2.
exposed end of each PL4848 Panel on the
inside of the Raceway Cover (Figure 6).
TIP! You will need six EC1E Raceway
End Covers total.
Install one 3-Way End Cap at each end of the 3.
assembly (Figure 7).
TIP! You will need two 3-Way End
Caps total. The bent tab of the 3-Way
End Cap should be placed against
the PLCP48 Corner Post.
Close the Raceway Covers.4.
Raceway Cover
1
2
EC1E
Raceway End Cover
Tab at top
EC1E
Raceway End Cover
Raceway Cover
3-Way End Cap
Bent tab
at top
Figure 7
Figure 6
