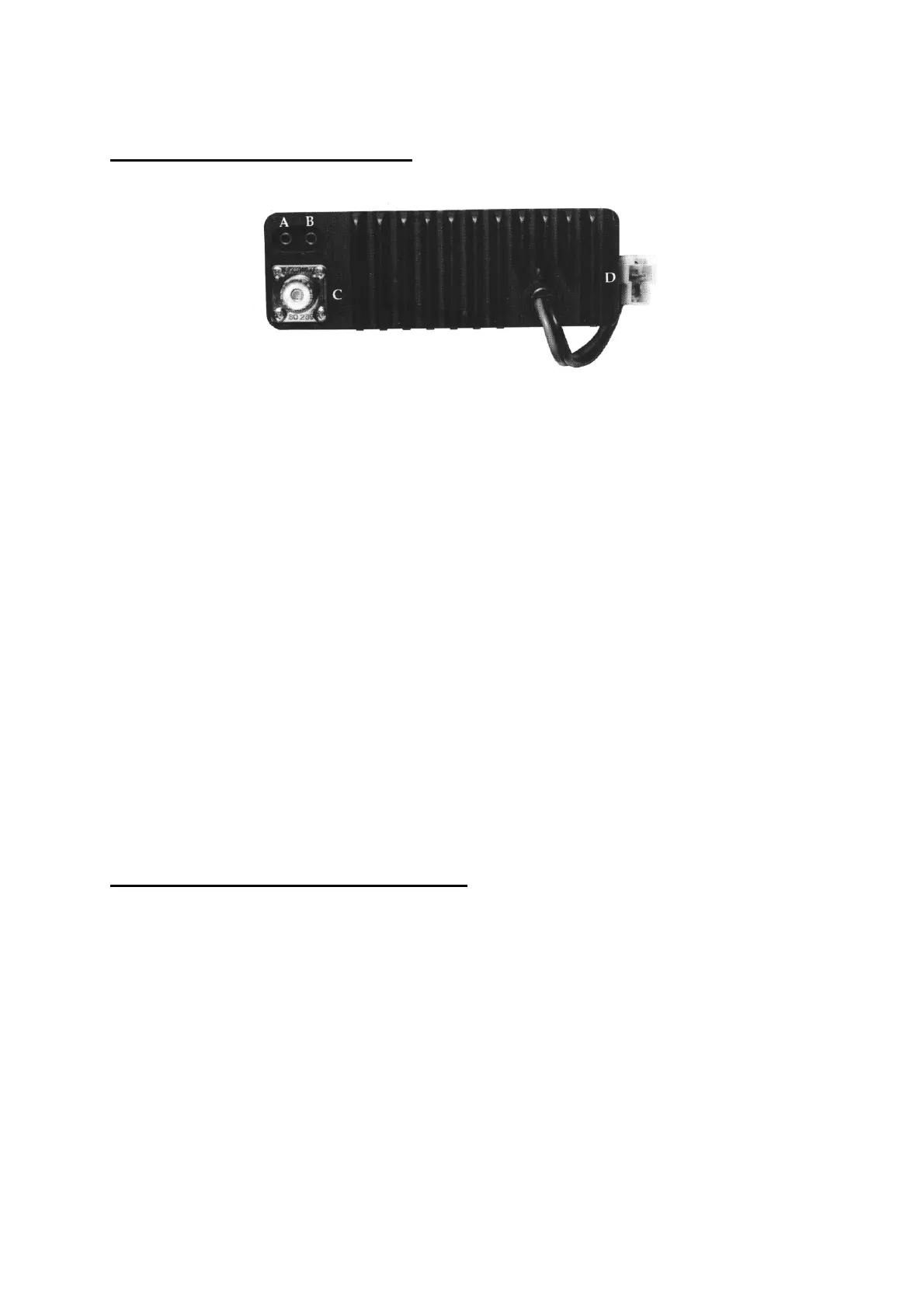

REAR PANEL CONNECTORS
A) EXTERNAL SPEAKER CONNECTOR
A 3.5mm diameter jack is provided for a 4 ohm external speaker. The
internal speaker is silenced when the external speaker is connected.
B) AUXILIARY SPEAKER CONNECTOR
A 3.5mm diameter jack for a 4 ohm auxiliary speaker.
C) ANTENNA CONNECTOR
SO-239 type connector. Output is 50 ohms and must be connected to a
properly installed .50 ohm antenna.
D) DC 13.2
Polarized plug: 13.2 volt DC input for NEGATIVE GROUND SYSTEM
ONLY.
GENERAL SAFETY INFORMATION
The following precautions are recommended:
- DO NOT operate the transmitter of a mobile radio when someone outside
the vehicle is within two feet (0.6 meter) of the antenna.
- DO NOT operate the transmitter of any radio unless all RF connectors are
secure and any open connectors are properly terminated.
- DO NOT operate this equipment near electrical blasting caps or in an
explosive atmosphere.
