MAXPhotonics MA1-35 User Manual

Size: 580mm×360mm×244.5mm
Features:
(1) The device offers laser coupling, a dual driving force mechanism, a closed
circuit board design, and a robust cold rolled plate shell for enhanced efficiency
and durability.l.
(2) Supports wire feeding/drawing speeds ranging from 2 to 100mm/s, offering
both continuous and pulse wire feeding options, allowing for precise fish scale
welding.
(3) Equipped with automatic pumping and filling functionalities for added
convenience during the welding process.
Primarily designed for scenarios that require wire feeding welding or larger
welds, this wire feeding machine is both versatile and effective.
Welding wire diameter compatibility: 0.8/1.0/1.2/1.6mm

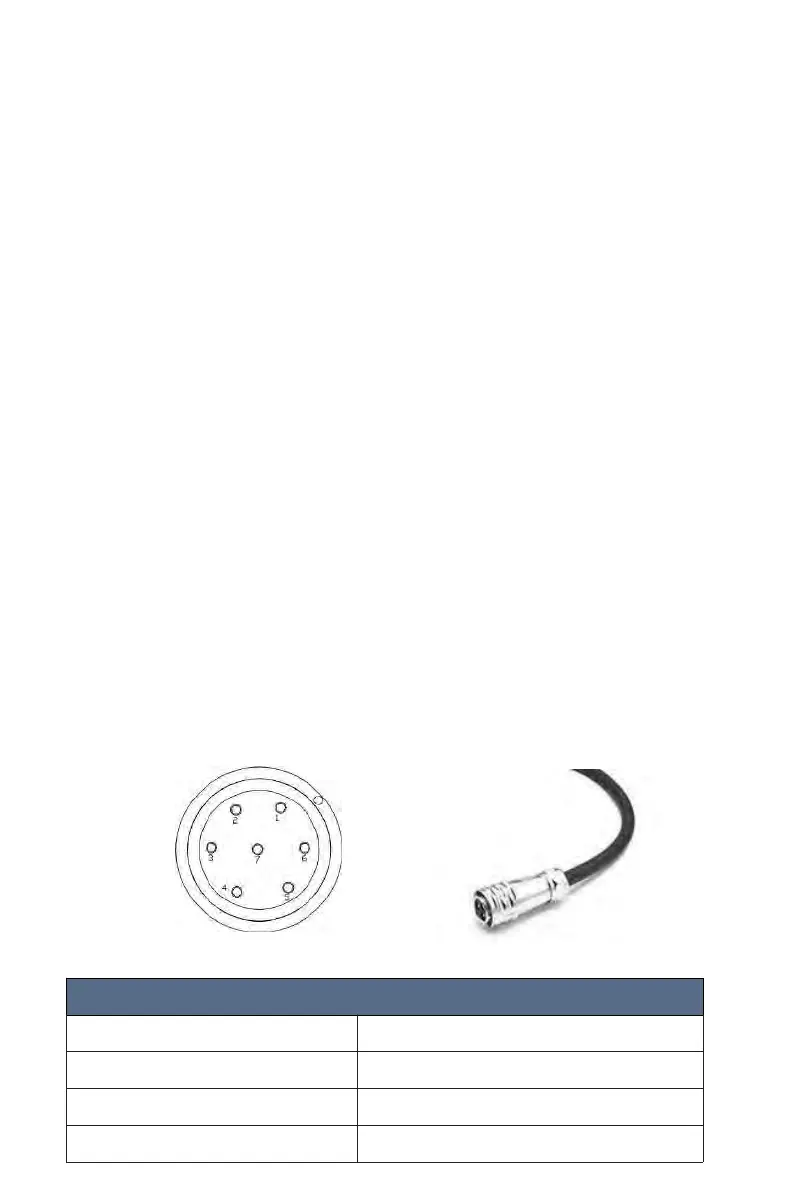

4. General definition of circuit connection
Connection Definition
1，2 pins
Connect to power +24V
3 pins Signal input/low level is active
4 pins Connect to the power GND
5 pins Shell PE
52

MAXPhotonics MA1-35 Specifications

General

Brand	MAXPhotonics
Model	MA1-35
Category	Welding System
Language	English
