MAXPhotonics MA1-35 User Manual

7-Installation of Wire Feeding Tube

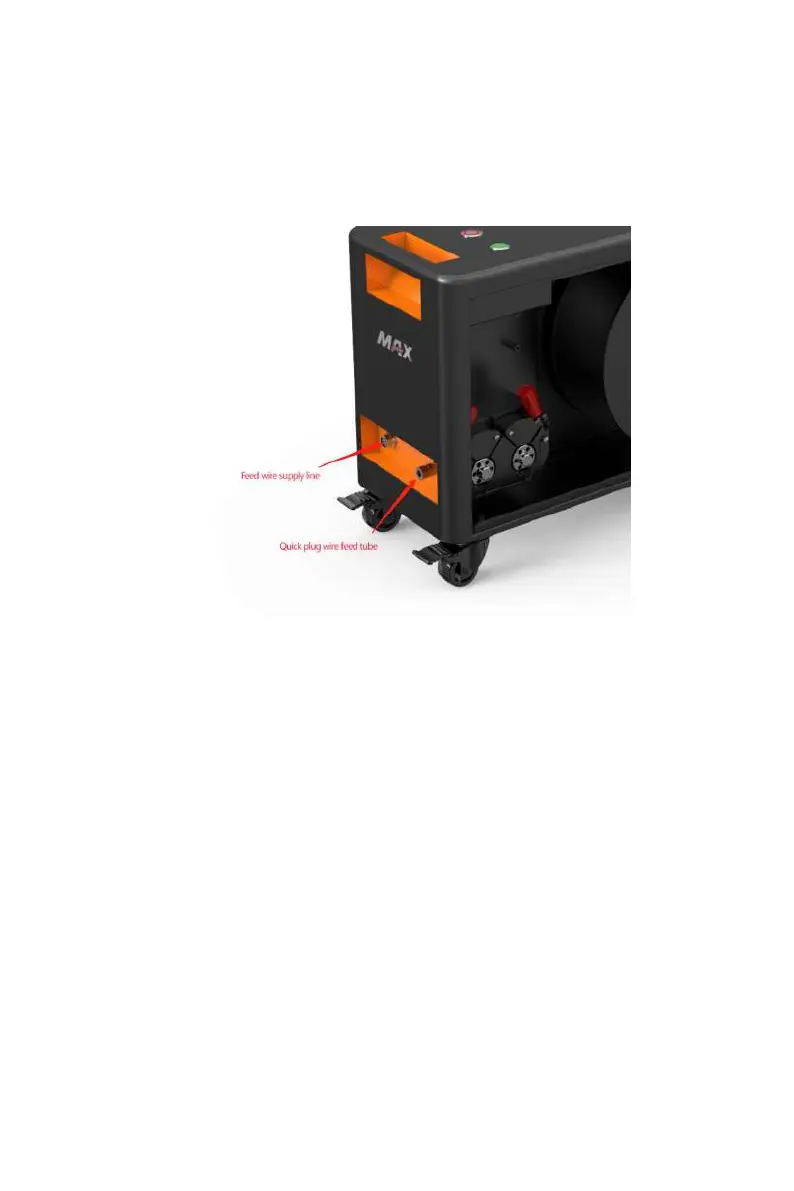

1. Interface of wire feeder
1. Connect the communication wire of the wire feeder (left side) as shown in the
above diagram (with the red point of the wire plug aligned to the upward direction of
the parent). Connect the other end to the wire feeding interface of the laser;
2. Attach the wire feed pipeline (right side) to the right interface as illustrated in the
above diagram, and connect the other end to the gun head;
3. The main types of tubes available for use are graphite tubes, stainless steel
tubes, and Teflon tubes.
56
