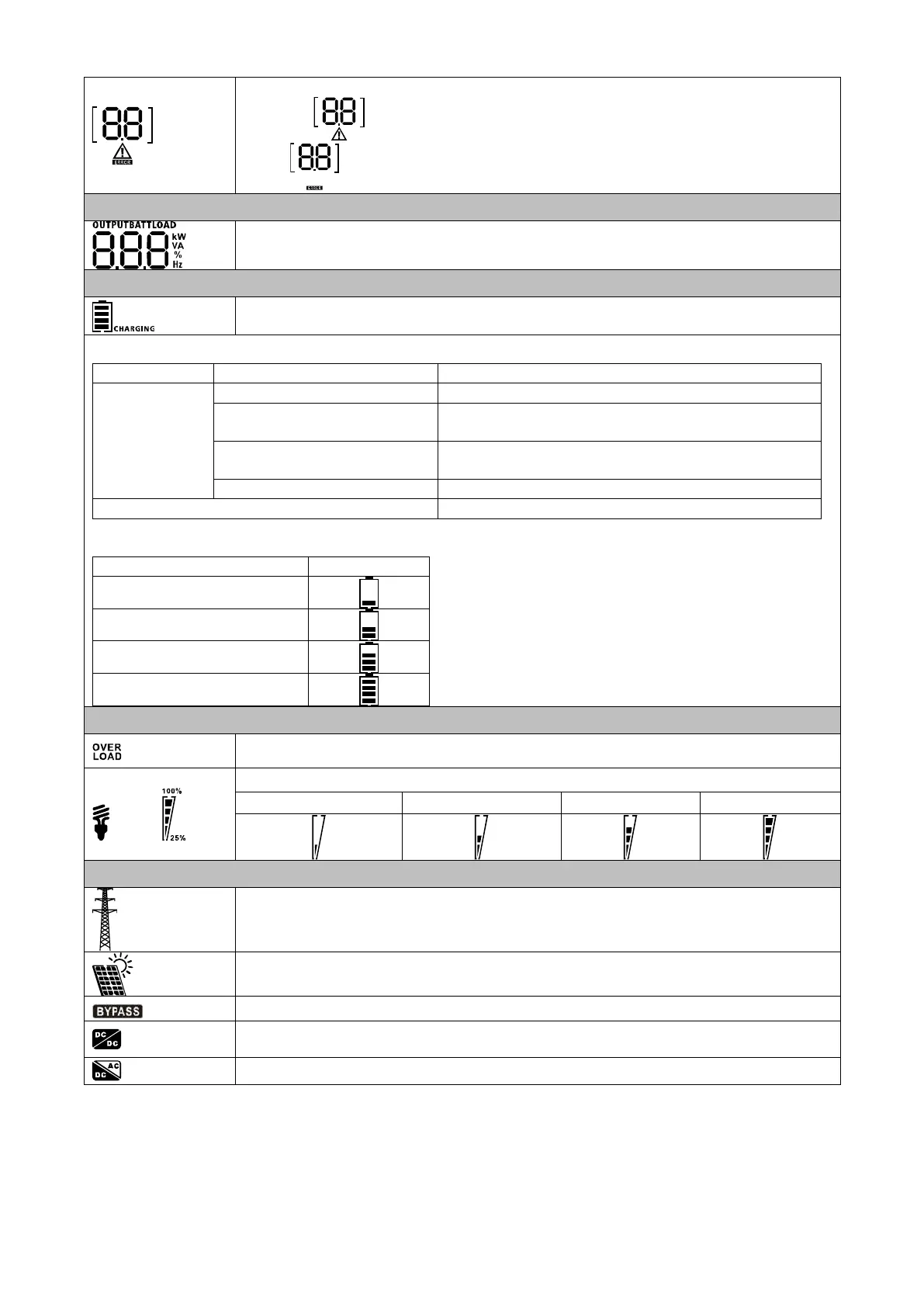

Indicates the warning and fault codes.
Warning: Flashing with warning code
Fault: Lighting with fault code
Output Information
Indicates the output voltage, output frequency, load percent, load in VA, load in Watt,
battery voltage, main board firmware version and SCC firmware version
Battery Information
Indicates the Battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode,
charging status in line mode.
In AC mode, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
< 11Vdc/pcs
4 bars will flash in turns.
11Vdc ~ 11.5Vdc/pcs
Bottom bar will be on and the other three bars will
flash in turns.
11.5Vdc ~ 12.5Vdc/pcs
Bottom two bars will be on and the other two bars will
flash in turns.
> 12.5Vdc/pcs
Bottom three bars will be on and the top bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
In battery mode, it will present battery capacity.
Battery Voltage
LCD Display
< 11Vdc/pcs
11.0Vdc ~ 11.5Vdc/pcs
11.5Vdc ~ 12.5Vdc/pcs
> 12.5Vdc/pcs
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74%, and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%
Mode operation information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel
Indicates load is supplied by utility power.
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
