866.4.Maxtec www.maxtec.com 5
Medical Air Inlet Connector - An air fitting for connection to an air inlet hose
from the air gas source.
Flowmeter Outlet - A fitting for connection to the patient delivery tubing.
Oxygen Concentration Selector Control - A knob which allows for selections
of mixed oxygen concentrations from 21% to 100%.
O
2
Inlet Fitting - An O
2
fitting for connection to the O
2
inlet hose from the
gas source.

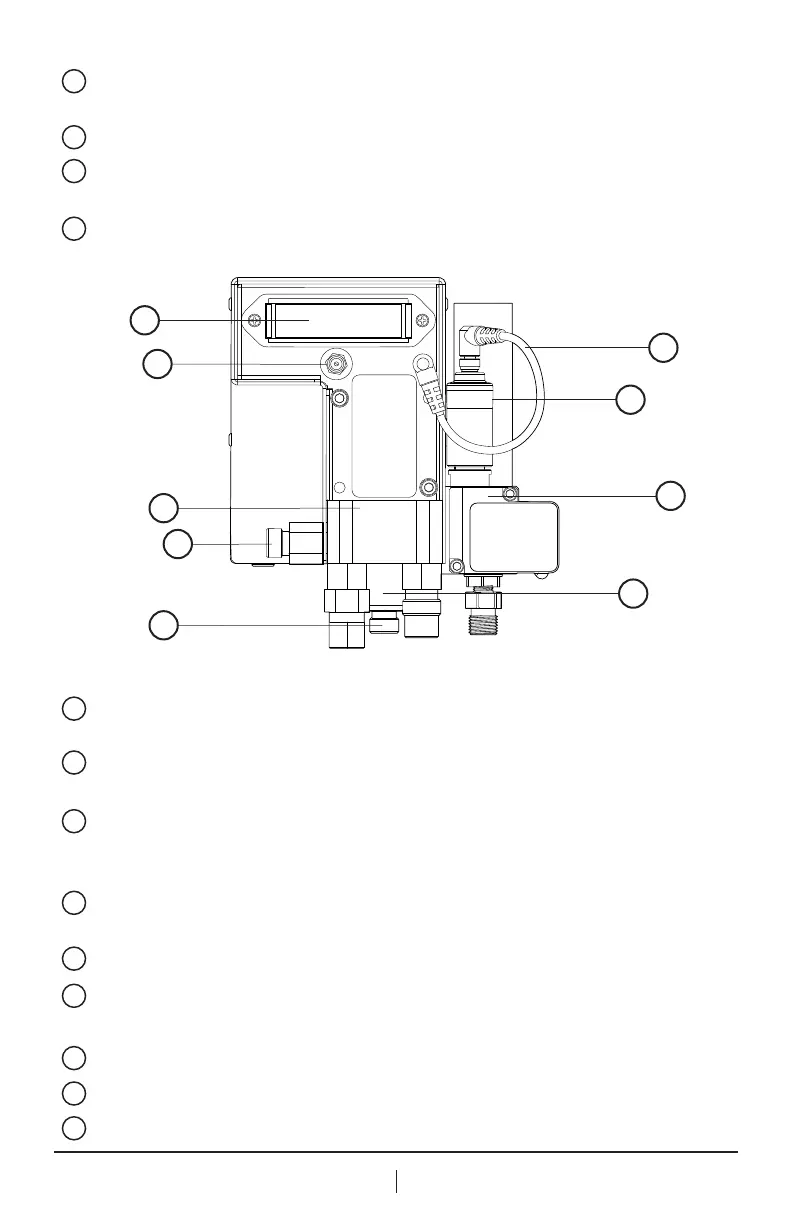

1.5 Back View
Mount Adapter - An adapter which allows the MAXBlend2 to be mounted
onto a mating bracket for mounting to a rail or ventilator system.
O
2
Sensor Port - A sampling port for the oxygen sensor. It allows
mixed gas from the blender to flow over the sensor membrane.
Pressure Differential Reed Alarm - An audible alarm which, when activated,
indicates that an unacceptable pressure differential exists between the two gas
source pressures.
Sensor with Diverter - The sensor with flow diverter is designed to fit into a
port behind the flow meter.
Sensor Cable - The cable connects the MAXBlend2, to the MAX-550E Sensor.
External Power Supply Port - The port provides connection for the external
power adapter. See section 2.7 for more information on the power supply.
Auxiliary Mixed Gas Outlet - Can be used to add additional flowmeters.
Auxiliary Mixed Gas Outlet - Can be used as power take off.
Battery Compartment - powered by four, AA, alkaline batteries.
B
E
D
C
F
I
A
G
H
23
24
25
26
F
G
H
I
E
D
C
B
A
