Maxum Sport Deck - Control Max Docking System Electrical Components (if equipped); Controls

16 CHAPTER 2: FEATURES / SYSTEMS
Sport Deck • Owner’s Manual Supplement
Control Max Docking System Electrical Components (if equipped)
If your boat is equipped with the Control Max Docking System, it has two addi-
tional circuit breakers, a battery charge equalizer, and an electronic control unit.
Controls
Read and
understand
the Controls
section of
both the Sport
Boat Owner’s
Manual and
engine man-
ual, provided
in the
owner’s
packet.

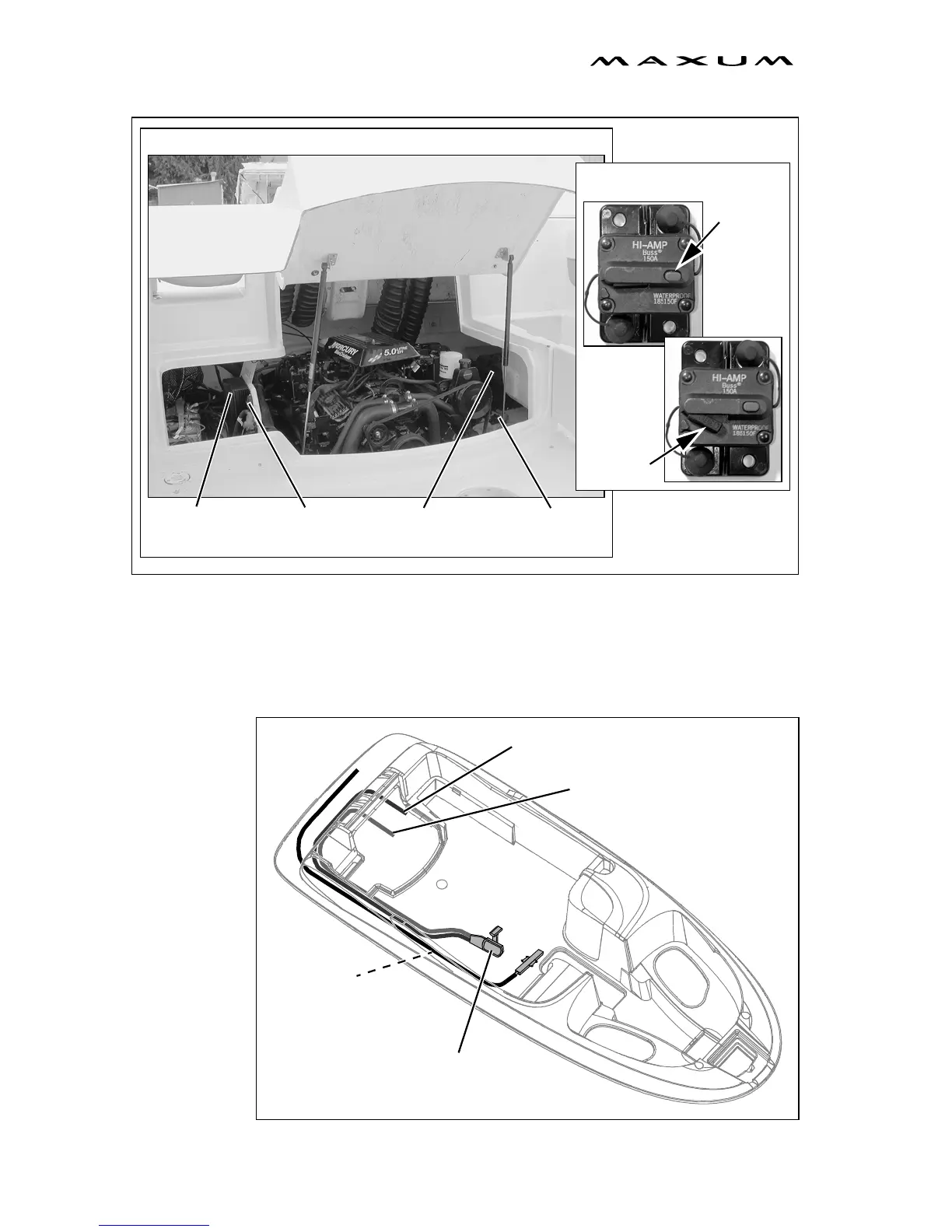

VIEW OF ENGINE COMPARTMENT
50 AMP
CIRCUIT
BREAKERS
150 AMP
CIRCUIT
BREAKERS
ELECTRONIC
CONTROL
UNIT
BATTERY
CHARGE
EQUALIZER
CONTROL MAX CIRCUIT
PUSH
TO TEST
BREAKERS (TYPICAL)
PUSH TO
RESET
SHIFT/THROTTLE
LEVER
SHIFT CABLE
THROTTLE CABLE
STEERING
CABLE
