Maxum Sport Deck - CHAPTER 3: ELECTRICAL ROUTINGS; Deck Routing

Sport Deck • Owner’s Manual Supplement
30

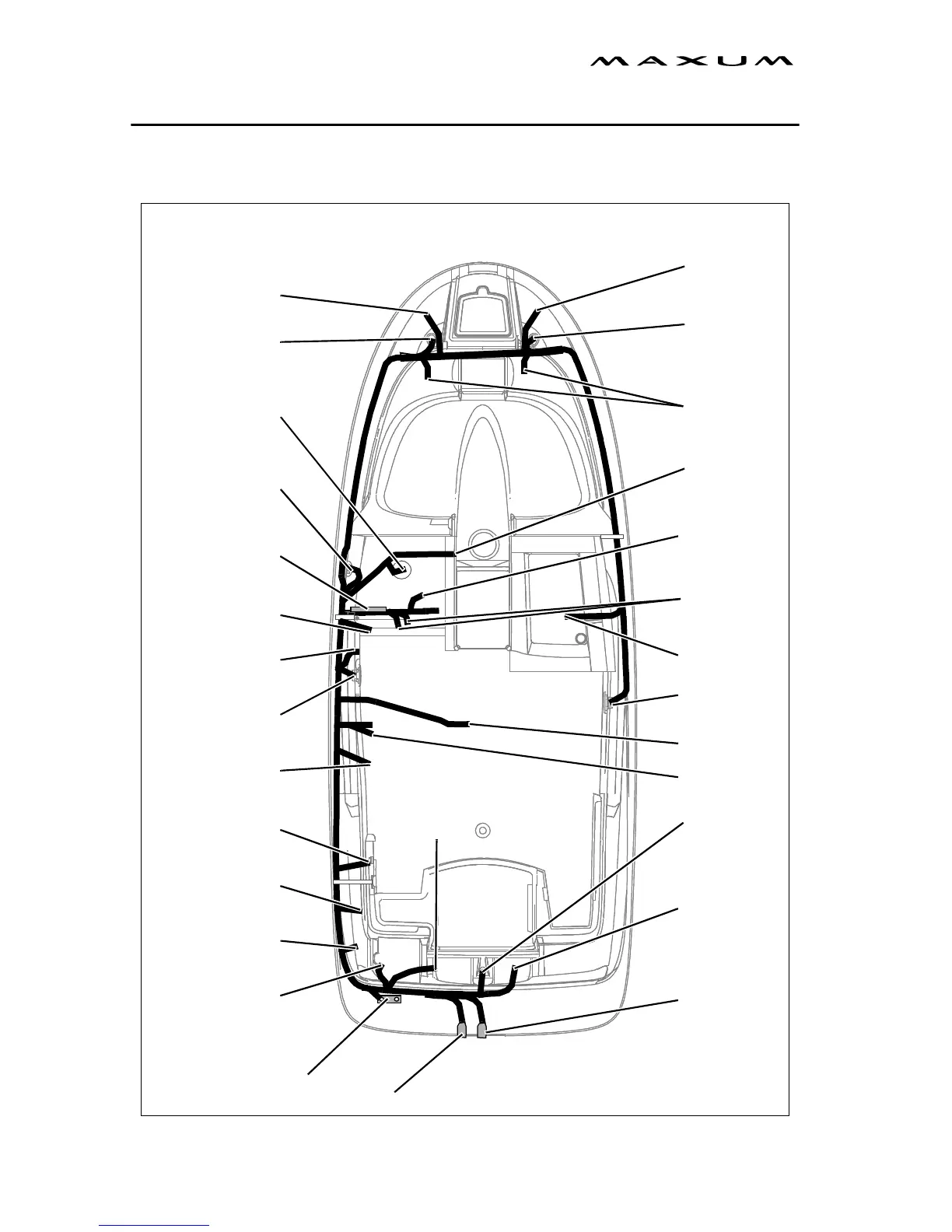

CHAPTER 3: ELECTRICAL ROUTINGS
Deck Routing
PORT
BOW
LIGHT
STARBOARD
BOW LIGHT
DOME
LIGHT
SPEAKER
HORN
DOME
LIGHT
COURTESY
LIGHT
DASH
COURTESY
LIGHT
WATER
PUMP
SHIFTER
COURTESY
LIGHT
GROUND
BAR
FUEL FILL
GROUND
TRIM
PUMP
ENGINE
PLUG
STERN
LIGHT
SPEEDO
DECK
PLUG
STEREO
MEMORY
12 VOLT
RECEPTACLE
STEREO
CIRCUIT
12 VOLT
RECEPTACLE
FIRE
SYSTEM
(OPTION)
STARBOARD
DOCK LIGHT
(OPTION)
PORT
DOCK LIGHT
(OPTION)
NOTE: VIEW IS OF THE UNDERSIDE OF THE DECK
SPEAKER
SPEAKER
BREAKERS
