Page 4
A. Antenna
The Antenna is mounted to the roof. It uses electric motors to scan for satellite signals. It has 3 cable
connections; 1 for controlling the motors and 2 satellites signal cables from the Twin LNB.
B. Control Box
The Control Box requires wired connections for power, antenna control and satellite signal. It can be mounted
discretely in a cupboard and can be fixed vertically and horizontally.
C. Wireless/wired Control Panel
Wireless technology allows the Seeker Control Panel to be mounted in a convenient position without
unsightly wires. When not in use the panel displays a 24 hour clock and internal ambient temperature.

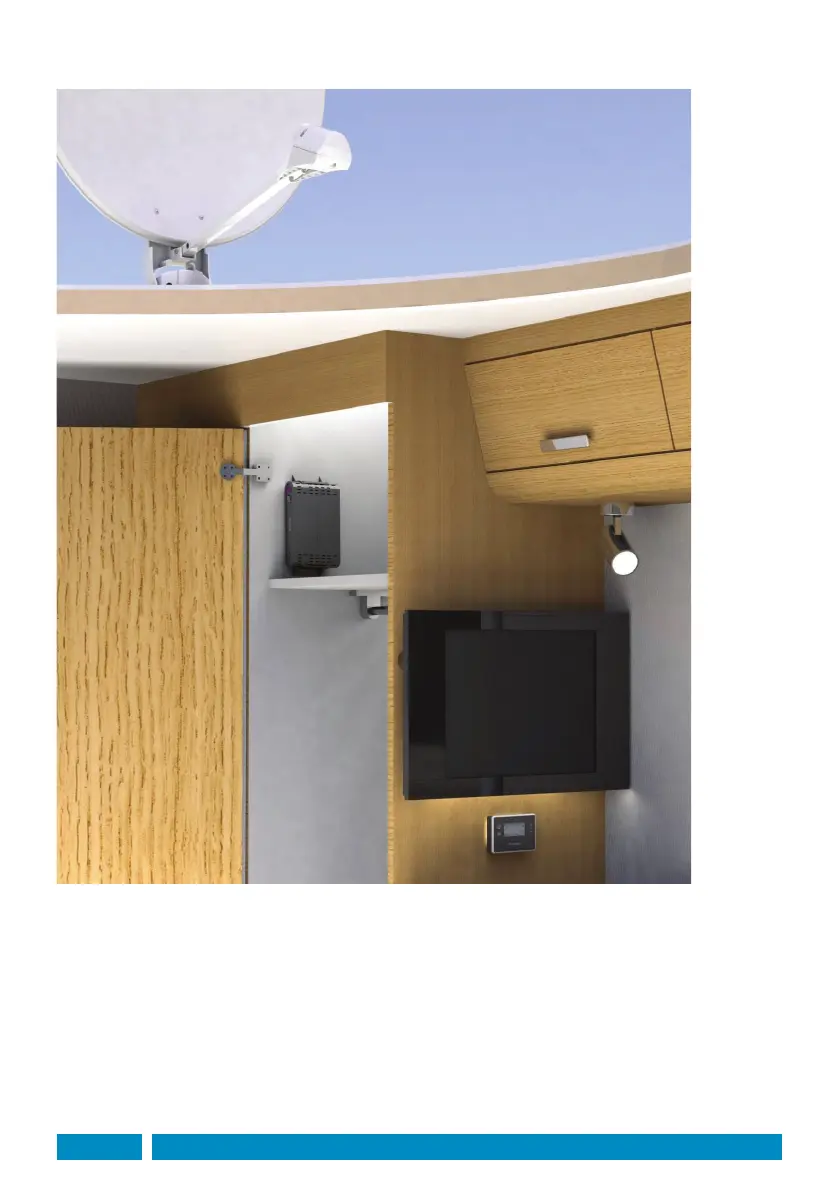

Application example:
A
B
C
