Maxwell Marine International Ltd – HRC10 Series 9

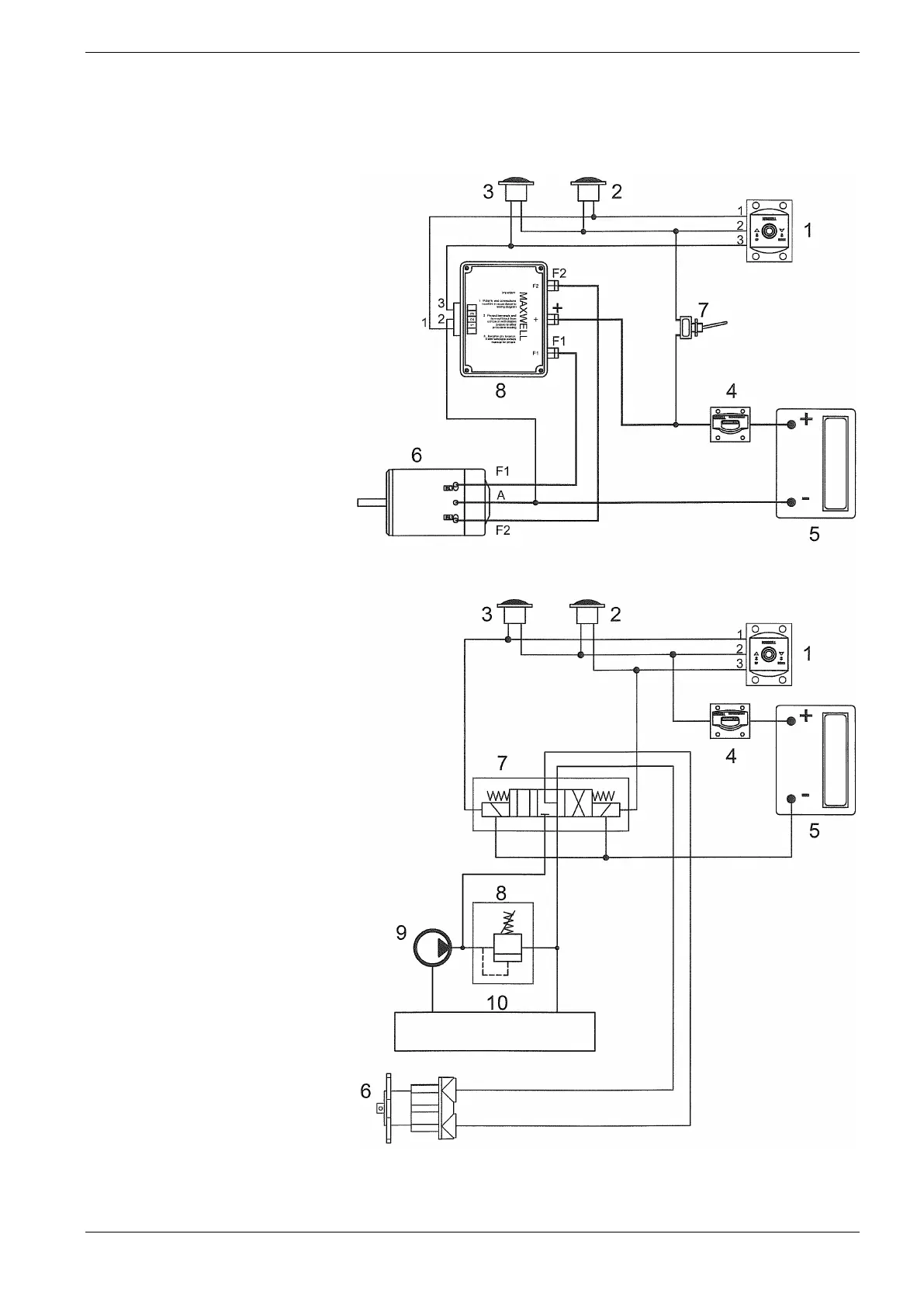

Electrical and Hydraulic Schematic
Series Wound Motor
1 Remote control panel
2 Down Foot Switch
3 Up Foot Switch
4 Breaker/Isolator
5 Battery
6 Motor
7 Manually resettable breaker
8 Solenoid Pack
Hydraulic Motor
1 Remote control panel
2 Down Foot Switch
3 Up Foot Switch
4 Breaker/Isolator
5 Battery
6 Motor
7 Duall direction solenoid
8 Relief Valve
9 Pump
10 Tank
