Maxwell HRC10 - Maintenance

4 Maxwell Marine International Ltd – HRC Series
MAINTENENCE
Every Trip
• Ensure clutch is adjusted correctly
• Wash down topworks with fresh water
• Spray motor and electrical connections with CRC
Soft Seal.
•
Check rope for wear and wash down with fresh
water
Every 3 Months
• Remove chainwheel. Strip and grease clutch

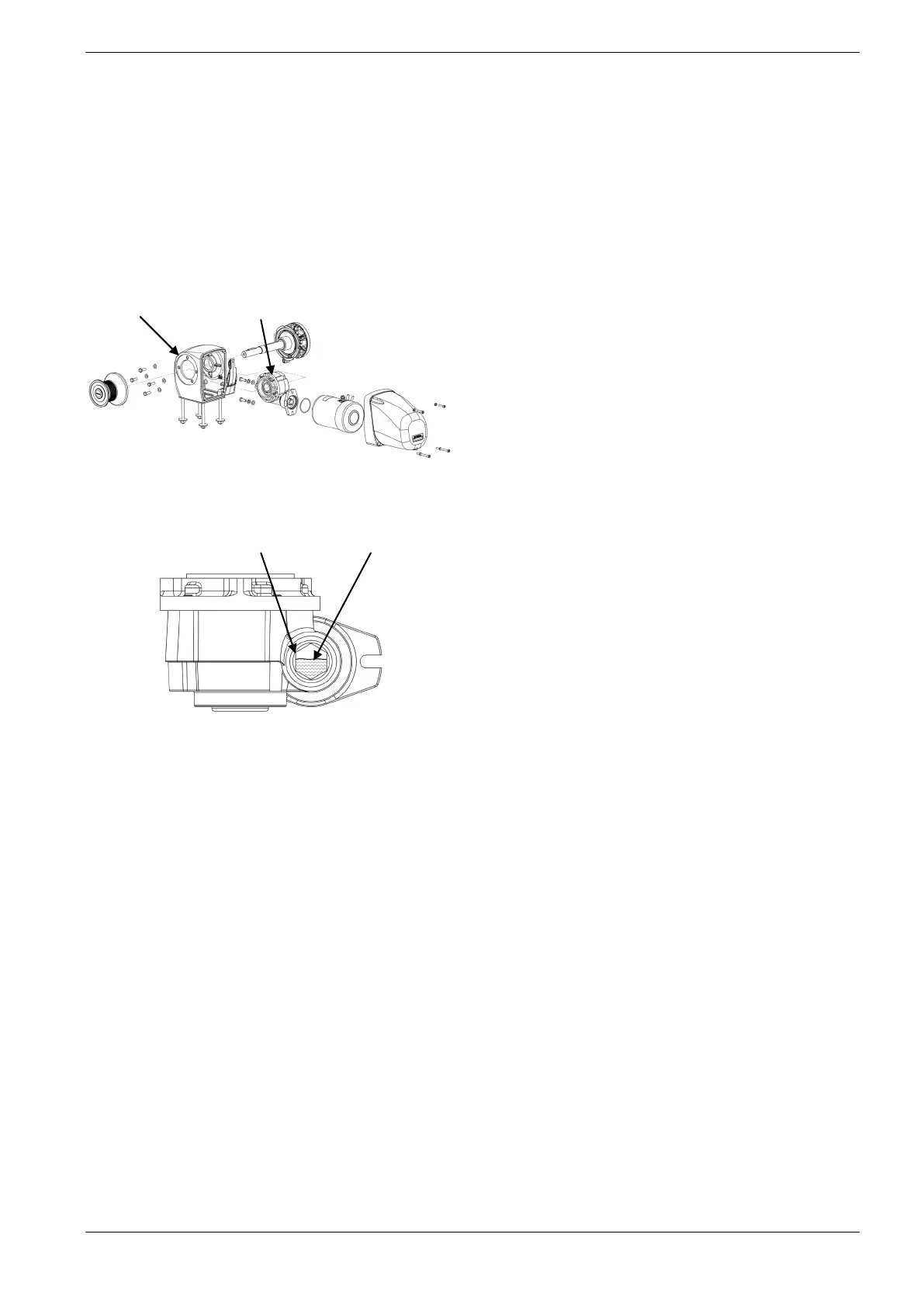

• Split gearbox (1) from main case (2), clean and re-
grease mating faces.
2 1
• Check level of oil in gearbox using the sight glass
(3). Oil level (4) should be above ½ and no more
than ¾ full. If necessary top up.
3 4
• Clean the Windlass with a cloth damp with
Kerosene (paraffin).
Spray preferably with
CRC3097 “Long Life” or alternatively, CRC6-66 or
WD40 (or alternative). Polish off with a clean non-
fluffy cloth.
Every Year
• The motor should be serviced by a qualified
technician.
• Remove any rust build up from the casing and paint
with a suitable coating
Every 3 Years
• The gearbox should be serviced by an authorised
service agent.
Specifications
Electric Motor : Direct Current motor
Voltage : 12 V DC or 24 V DC
Rated Output : HRC10-8: 1000W
: HRC10-10: 1200W
Hydraulic Motor:
Recommended Flow :20l/min 5.3gal/min
Relief Valve setting :2000 psi 138bar
Gear box ratio : 56:1
Max Pulling : HRC10-8: 700kg (1540 lbs)
Weight : HRC10-10: 850kg (1870 lbs)
Haulage speed : 20-24 m/min (65.6-78.7 ft/min)
(Dependant on the load)
Rope size : HRC10-8: 14-16mm (9/16”-5/8”)
: HRC10-10: 16mm (5/8”)
Chain size : HRC10-8: 8mm (5/16”) short link
: HRC10-10:10mm (3/8”) short link
Net weight : HRC10-8: 19kgs (42lbs)
: HRC10-10: 20kgs (44lbs)
