5. INSTALL THE FIXED STRIPS

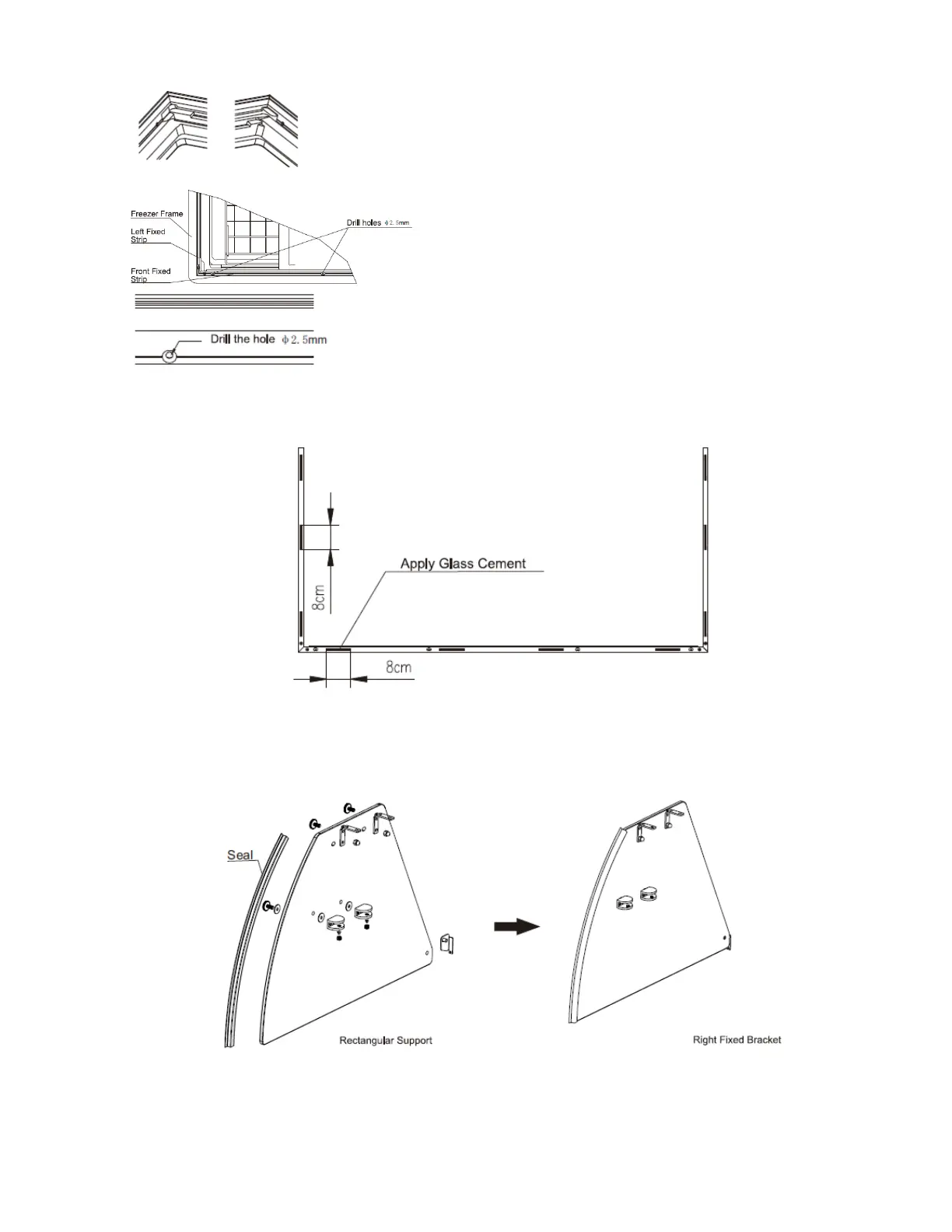

Place the sub-assembly on the top frame of the freezer and close to the inside
edge.
Dr
ill the hole and secure the LEFT side of the FRONT Fixed
Strip with Screw 4.2X13.
Drill the hole and secure the LEFT and RIGHT Fixed Strips with
Screw 3.5X14.
6. APPLY GLASS CEMENT
• Apply glass cement on the ten (10) slots of all three (3) fixed strips.
NOTE: Keep unused glass cement in a safe place and out of the reach of children.
7. INSTALL the GLASS SIDE PANELS
• As shown in the figure, you will need the glass clamp, rectangular support, flat head bolt M6x16, glass
cement, right and left fixed bracket, seal.
• Assemble the parts as shown in the figure.
