Maxx Ice MIM250 - Wiring Connections Diagram

8
surface of the cold evaporator where the purest water is converted to ice. The unfrozen water
returning to the trough. At the end of freeze cycle and during harvest, the water dump valve is
opened and the mineral laden remaining water is pumped down the drain.

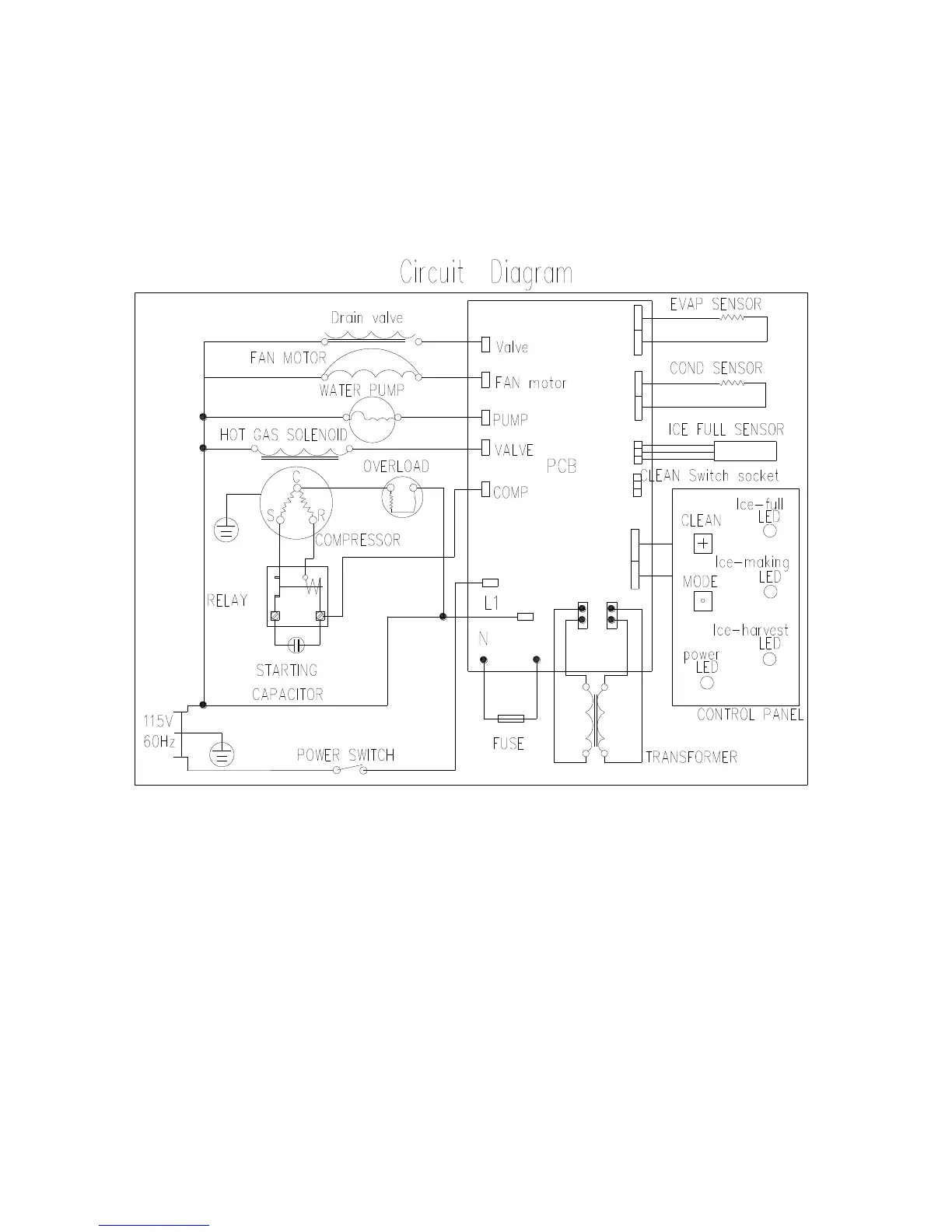

Wiring Connection :
