Maxx Ice MIM250 - Water System Operation

7

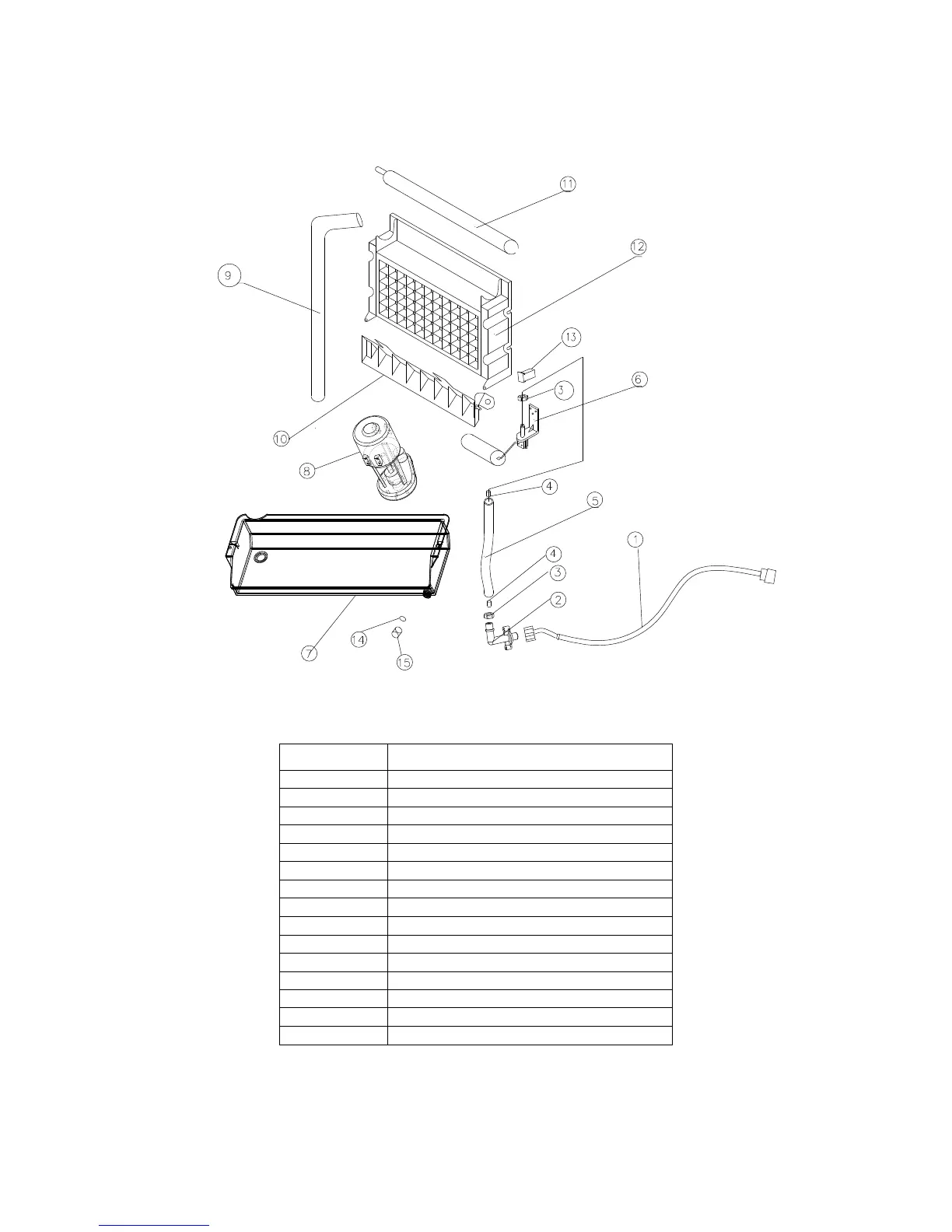

Water System
ITEM NO.
DESCRIPTION
1
Water supply tube
2
Water inlet connector
3
Nut of water inlet tube
4
Supporting tube
5
Water pump inlet tube
6
Floater valve
7
Water trough
8
Water pump
9
Water pump outlet tube
10
Ice slideway
11
Water distribution tube
12
Evaporator (Ice Mold)
13
Magnetism switch
14
Gasket
15
Screw cap
When the water inlet is connected with the main water supply, water will fill the trough through the
float valve until the water level in the trough closes the valve. During the icemaking stage, water is
pumped from the water trough to the water distribution tube. The distributed water flows over the
