C14
C15
A
P
E22
C05
E39
E22
C06
E39
B
B01
E22
A07
7
ENG

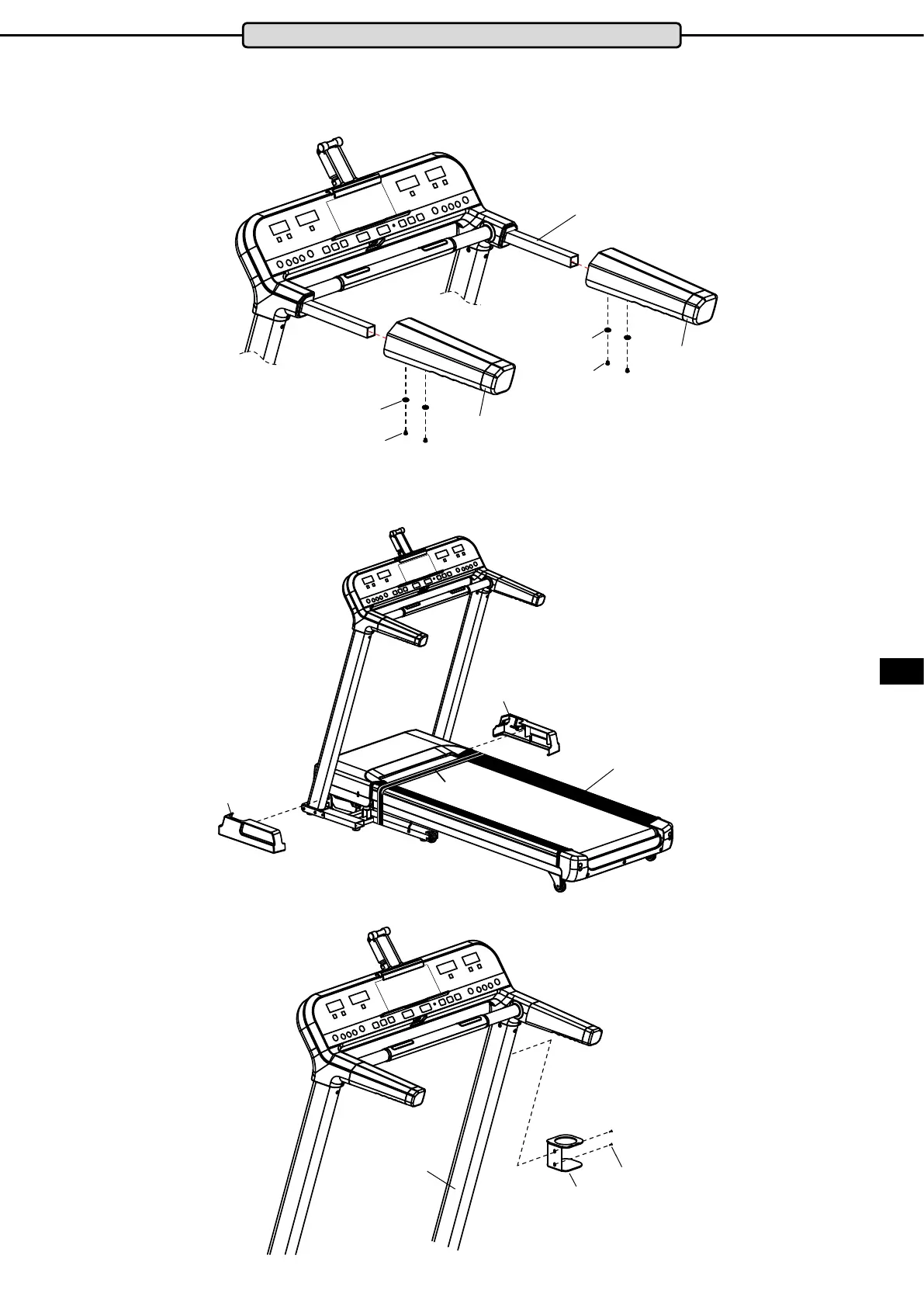

Step 4 - Assembly of the handrails
Insert the left handrail (C05) on the left side of the cockpit frame (B) and secure it from below using two M5x12
pan head screws (E22) and two Ø5xØ13T1.0 washers (E39). Now do the same with the right handrail (C06).
Step 5 - Mounting the side covers
Insert the left side cover (C14) into the main frame (A) and press rmly. Repeat with the right side cover (C15).
Step 6 - Mounting the cup holder
Attach the Cup Holder (B01) to the right side frame (A07) with two M5x12 pan head screws (E22).
Assembly
