Mayr ROBA-stop-S - Brake Illustrations and Parts List

Installation and Operational Instructions for
ROBA-stop
®
-S brake Type 856. _ _ _ . _
Sizes 8, 9 and 10 (B.8.3.GB)
03/11/2010 TK/KE/GC/SU Chr. Mayr GmbH + Co. KG Tel.: 08341 / 804-0
Eichenstraße 1 Fax: 08341 / 804-421
D-87665 Mauerstetten http://www.mayr.de
Page 5 of 14 Germany E-Mail: info@mayr.de

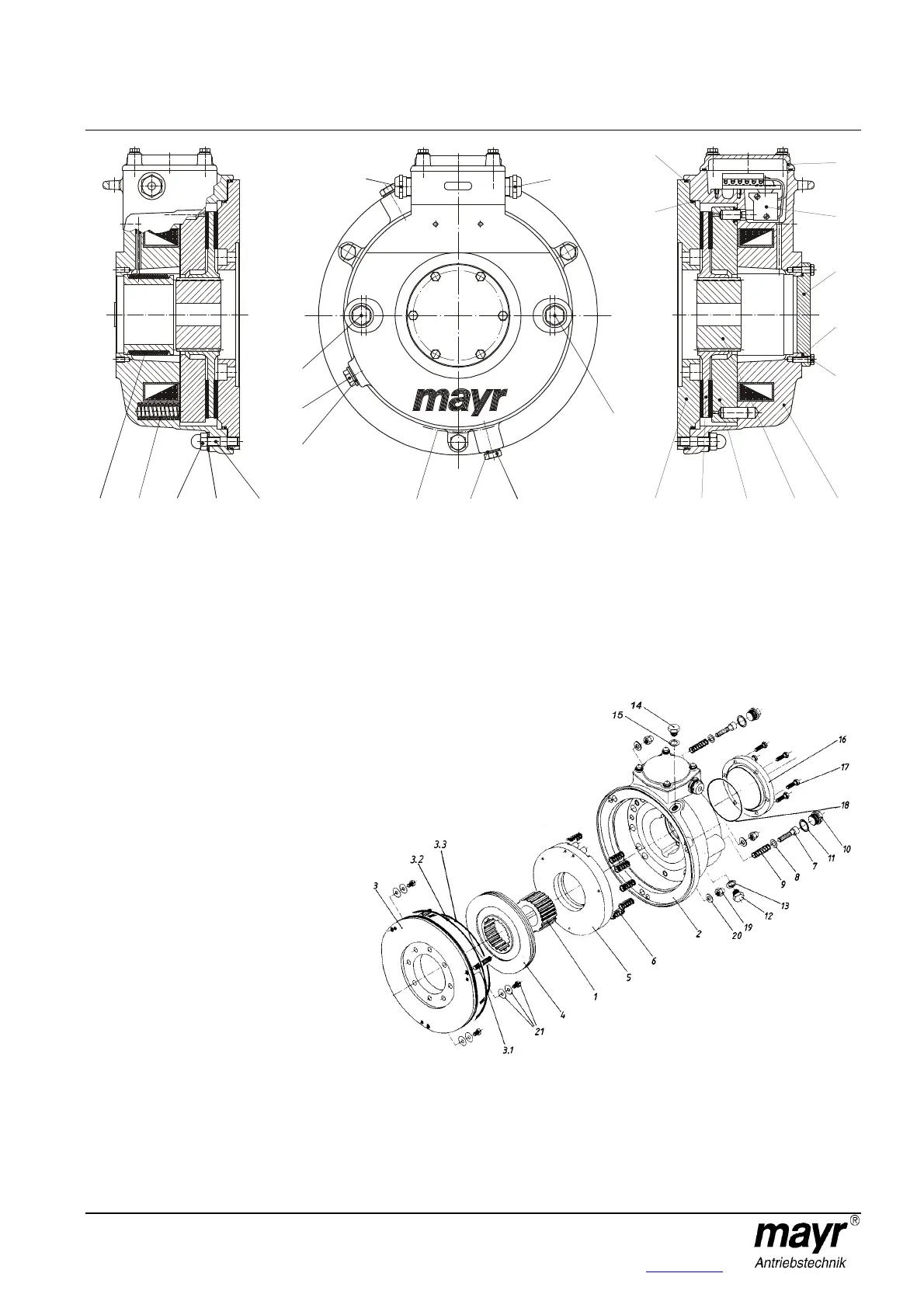

Fig. 1 Fig. 2 Fig. 3
Parts List (Only use mayr

original parts)
Item Name
1 Gear hub
2 Coil carrier assembly
3 Flange plate assembly
3.1 Stud screws
3.2 O-ring
3.3 O-ring
4 Rotor assembly
5 Armature disk assembly
6 Thrust spring
7 Cap screw
8 Washer
9 Thrust spring
10 Screw plug
11 Copper sealing ring
12 Screw plug
13 Copper sealing ring
14 Screw plug
15 Copper sealing ring
16 Sealing cover
17 Hexagon head screw
18 O-ring
19 Cap nut
20 Washer
21 Distance washer assembly
inc. cap screw
22 Microswitch assembly
23 Terminal box assembly
24 Heating assembly
25 Type tag
26 Cable screw connection
