Disassembly Procedures
To avoid the risk of electrical shock, personal injury or
death; disconnect power to oven and discharge
capacitors before following any disassembly procedure.
WARNI NG
!
©2005 Maytag Services 27 16026268
1. Disconnect power to unit and remove outer case, see
"Outer Case" procedure.
2. Disconnect wire terminal plug from light socket.
3. Remove light socket from air duct.
4. Remove light bulb.
5. Replace and reassemble in reverse order.
Turntable Motor
1. Disconnect power to oven.
2. Open the oven door, remove turntable, and gently pry
upward on turntable shaft.
3. Remove bottom plate cover by cutting metal tabs.
When reinstalling use screw provided.
4. Disconnect wire leads from turntable motor.
Wire leads
Turntable motor
5. Remove screws securing turntable to the oven cavity.
6. Replace and reassemble in reverse order.
Noise Filter
1. Disconnect power to unit and remove outer case, see
"Outer Case" procedure.
2. Remove screws securing noise filter to chassis.
3. Disconnect wire terminal plug and replace with new
filter.
4. Reassemble in reverse order.

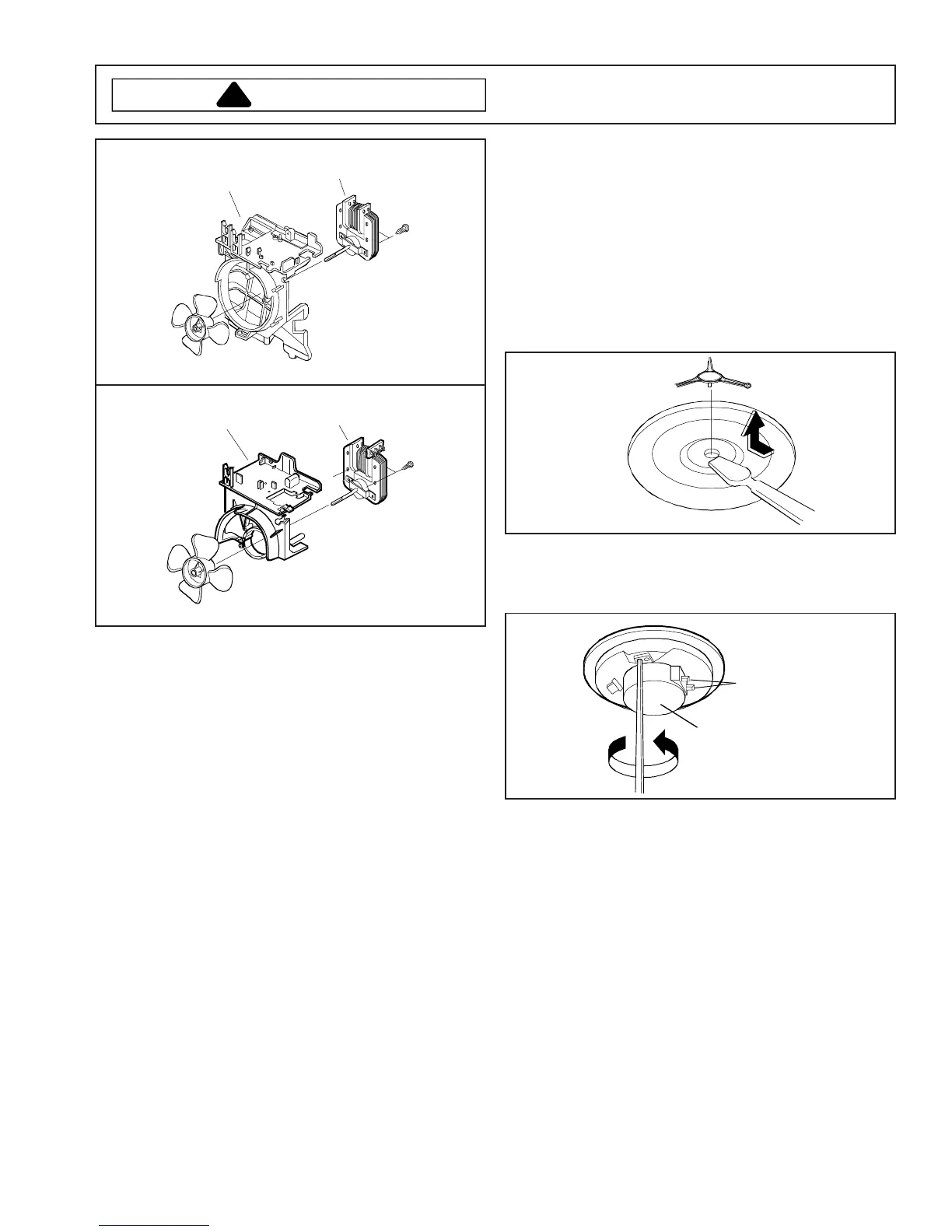

Suction
guide
Fan Motor
assembly
2001 Models
Suction
guide
Fan Motor
assembly
2002 Models
6. Remove screws securing fan motor assembly to
suction guide.
7. Reassemble in reverse order.
Humidity Sensor – ACM1460A* and
ACM2160A*
The sensor is a plug-in device located on the sensor
guide.
1. Disconnect power to unit and remove outer case, see
"Outer Case" procedure.
2. Remove screws securing sensor to sensor guide.
3. Disconnect wire terminal plug and replace with new
sensor.
4. Reassemble in reverse order.
Oven Thermostat
The oven thermostat is located on the top right side of
the oven cavity.
Thermostat is a resettable thermostat.
1. Disconnect power to unit and remove outer case,
see "Outer Case" procedure.
2. Disconnect wires from oven thermostat and replace
thermostat.
3. Remove screws securing oven thermostat.
4. Reassemble in reverse order.
Light Socket
