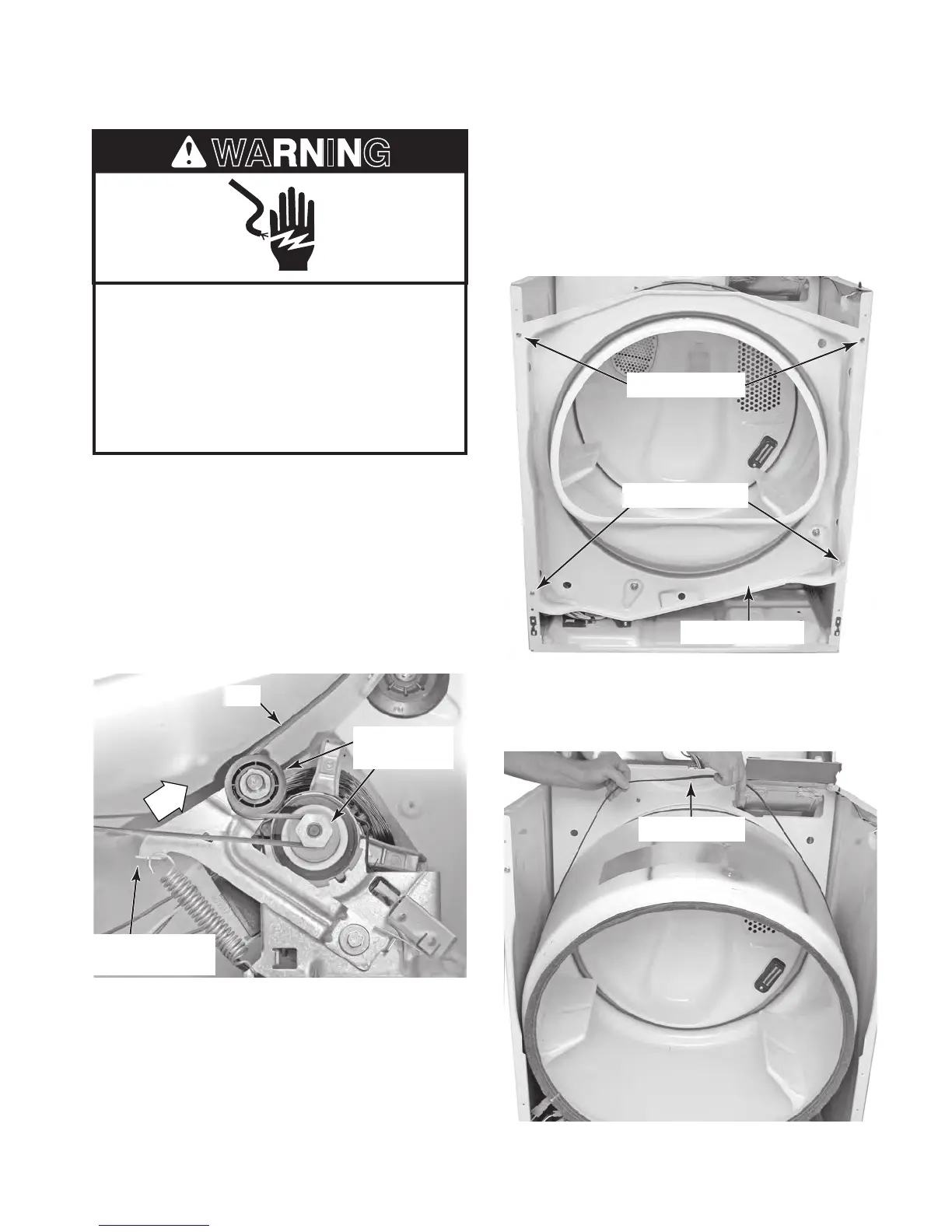

REMOVING THE BELT, DRUM, & ROLLERS

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before

operating.

Failure to do so can result in death or

electrical shock.

Slide Belt Off

Back Of Drum

1. Unplug dryer or disconnect power.

2. Turn off gas supply to dryer.

3. Remove the cabinet front from the dryer

(see page 4-5 for the procedure).

Reach under the drum to the drive motor

and push the idler wheel arm to relieve the

spring tension on the belt, then slide the

belt off the idler and motor pulleys.

Loosen Screws

Remove Screws

Front Bulkhead

5. Loosen the two top and remove the two

bottom 5/16˝ hex-head screws from the

front bulkhead.

Lift and unhook the two top bulkhead key-

hole slots from the screws, and remove

the bulkhead from the dryer.

Remove Belt

From Pulleys

Push To Relieve

Spring Tension

Belt

Push

7. To remove the belt and drum:

a) Slide the belt off the back of the drum

and remove it.

Remove Belt

Continued on the next page.
