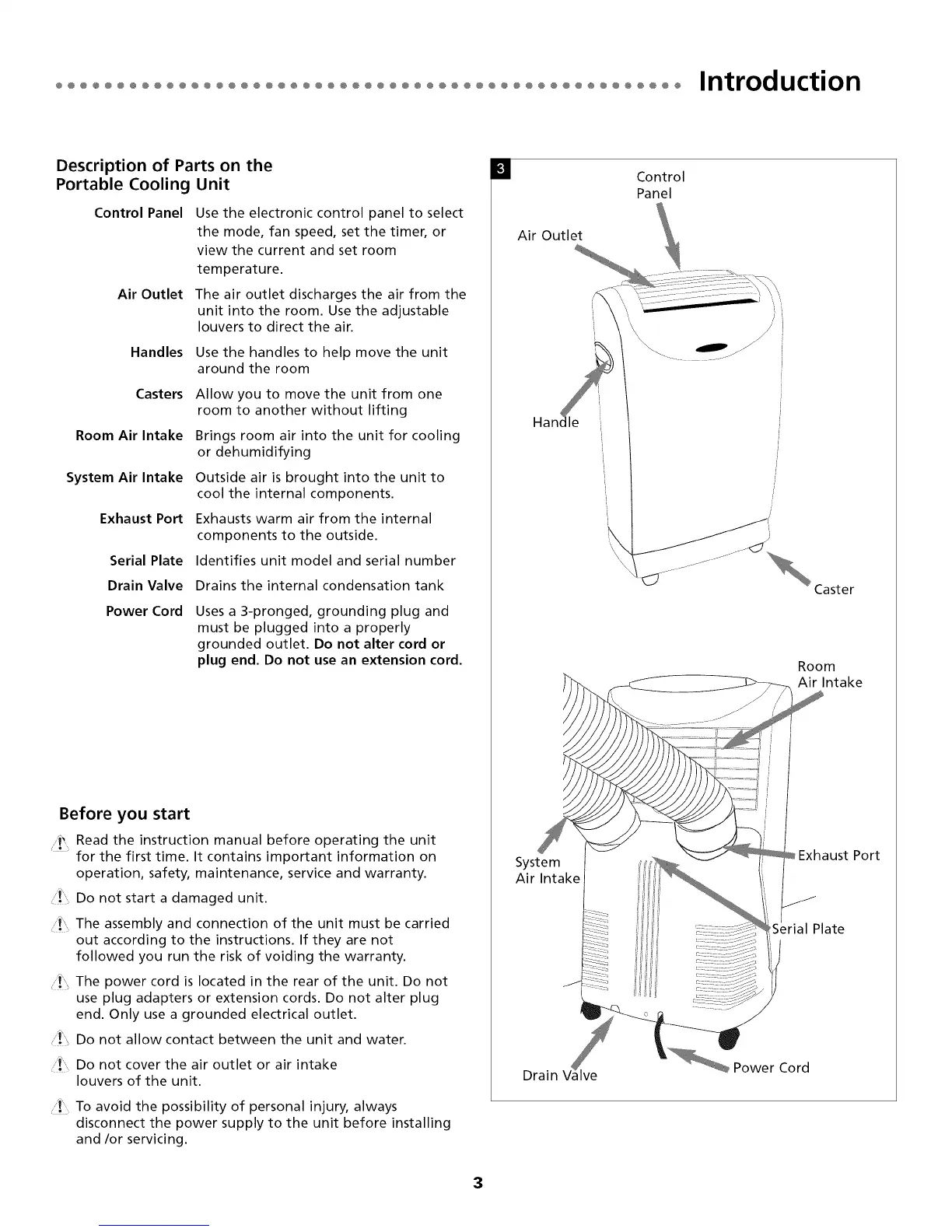

oooooooooooooooooooooooooooooooooooooooooooooooooooIntroduction
Description of Parts on the
Portable Cooling Unit
Control Panel
Air Outlet
Handles
Casters
Room Air Intake
System Air Intake
Exhaust Port
Serial Plate
Drain Valve
Power Cord
Use the electronic control panel to select
the mode, fan speed, set the timer, or
view the current and set room
temperature.
The air outlet discharges the air from the
unit into the room. Use the adjustable
louvers to direct the air.
Use the handles to help move the unit
around the room
Allow you to move the unit from one
room to another without lifting
Brings room air into the unit for cooling
or dehumidifying
Outside air is brought into the unit to
cool the internal components.
Exhausts warm air from the internal
components to the outside.
Identifies unit model and serial number
Drains the internal condensation tank
Uses a 3-pronged, grounding plug and
must be plugged into a properly
grounded outlet. Do not alter cord or
plug end. Do not use an extension cord.
Before you start
Read the instruction manual before operating the unit
for the first time. It contains important information on
operation, safety, maintenance, service and warranty.
.......Do not start a damaged unit.
......._, The assembly and connection of the unit must be carried
out according to the instructions. If they are not
followed you run the risk of voiding the warranty.
The power cord is located in the rear of the unit. Do not
use plug adapters or extension cords. Do not alter plug
end. Only use a grounded electrical outlet.
Do not allow contact between the unit and water.
.......Do not cover the air outlet or air intake
louvers of the unit.
To avoid the possibility of personal injury, always
disconnect the power supply to the unit before installing
and/or servicing.
u
Control
Panel
Air Outlet
J
i
/
System
Air Intake
Drain
Power Cord
Room
Air Intake
Exhaust Port
Plate
3
