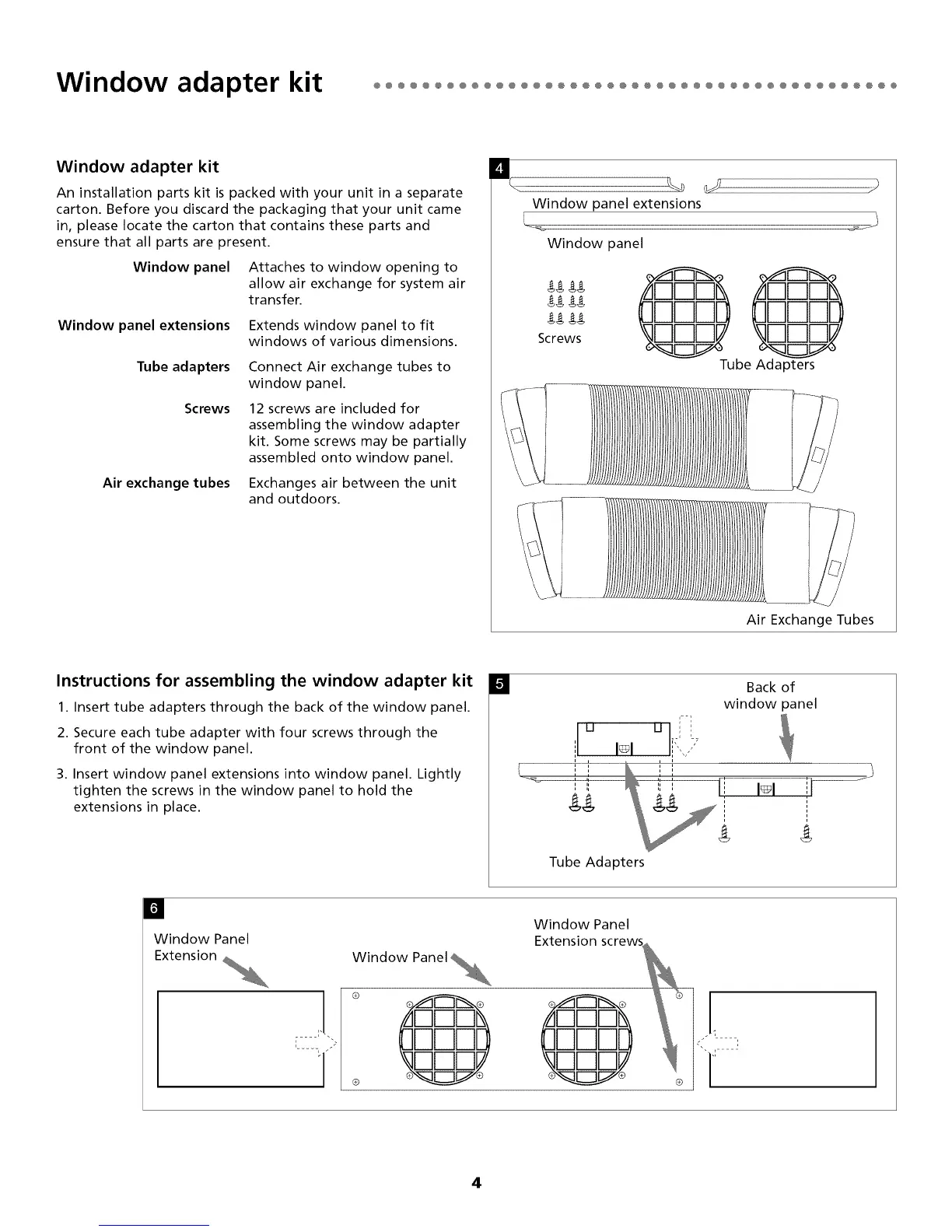

Window adapter kit
An installation parts kit is packed with your unit in a separate
carton. Before you discard the packaging that your unit came
in, please locate the carton that contains these parts and
ensure that all parts are present.
Window panel Attaches to window opening to
allow air exchange for system air
transfer.
Window panel extensions Extends window panel to fit
windows of various dimensions.
Tube adapters
Screws
Air exchange tubes
Connect Air exchange tubes to
window panel.
12 screws are included for
assembling the window adapter
kit. Some screws may be partially
assembled onto window panel.
Exchanges air between the unit
and outdoors.
Window panel extensions
Window panel
Screws
@@
Tube Adapters
Air Exchange Tubes
[] Back of
window panel
Instructions for assembling the window adapter kit
1. Insert tube adapters through the back of the window panel.
2. Secure each tube adapter with four screws through the
front of the window panel.
3. Insert window panel extensions into window panel. Lightly
tighten the screws in the window panel to hold the
extensions in place.
Tube Adapters
!1
Window Panel
Extension Window Panel
Window Panel
Extension screws ._ .[
@ ......
4
