*OptionB,Nowastedisposer-noairgap
IMPORTANT:Thedrainhoseconnectionofthedisposerora
wasteteemustbemadebeforethedraintrapandatleast
20"(50.8cm)abovethefloorwherethedishwasherwillbe
installed.
HelpfulTip:Toreducevibrationofthehose,keepthehoseaway
fromthefloor.

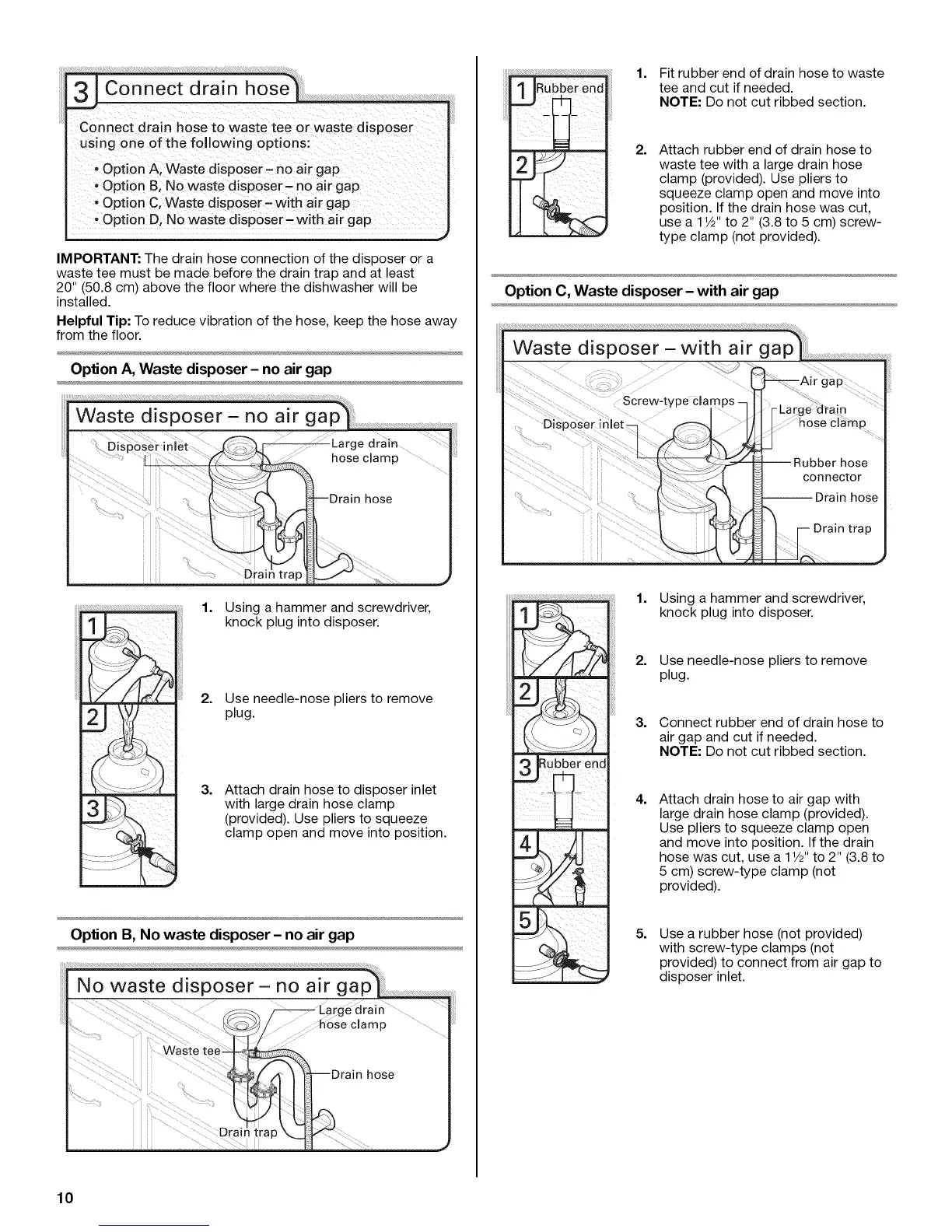

Option A, Waste disposer - no air gap
..... 1 •
2.
3.
Using a hammer and screwdriver,
knock plug into disposer.
Use needle-nose pliers to remove
plug.
Attach drain hose to disposer inlet
with large drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
Option B, No waste disposer - no air gap
i!il i
1. Fit rubber end of drain hose to waste
tee and cut if needed.
NOTE: Do not cut ribbed section.
2• Attach rubber end of drain hose to
waste tee with a large drain hose
clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut,
use a 1V2" to 2" (3.8 to 5 cm) screw-
type clamp (not provided).
Option C, Waste disposer - with air gap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
4•
Attach drain hose to air gap with
large drain hose clamp (provided).
Use pliers to squeeze clamp open
and move into position. If the drain
hose was cut, use a 11/2"to 2" (3.8 to
5 cm) screw-type clamp (not
provided).
5•
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap to
disposer inlet.
10
