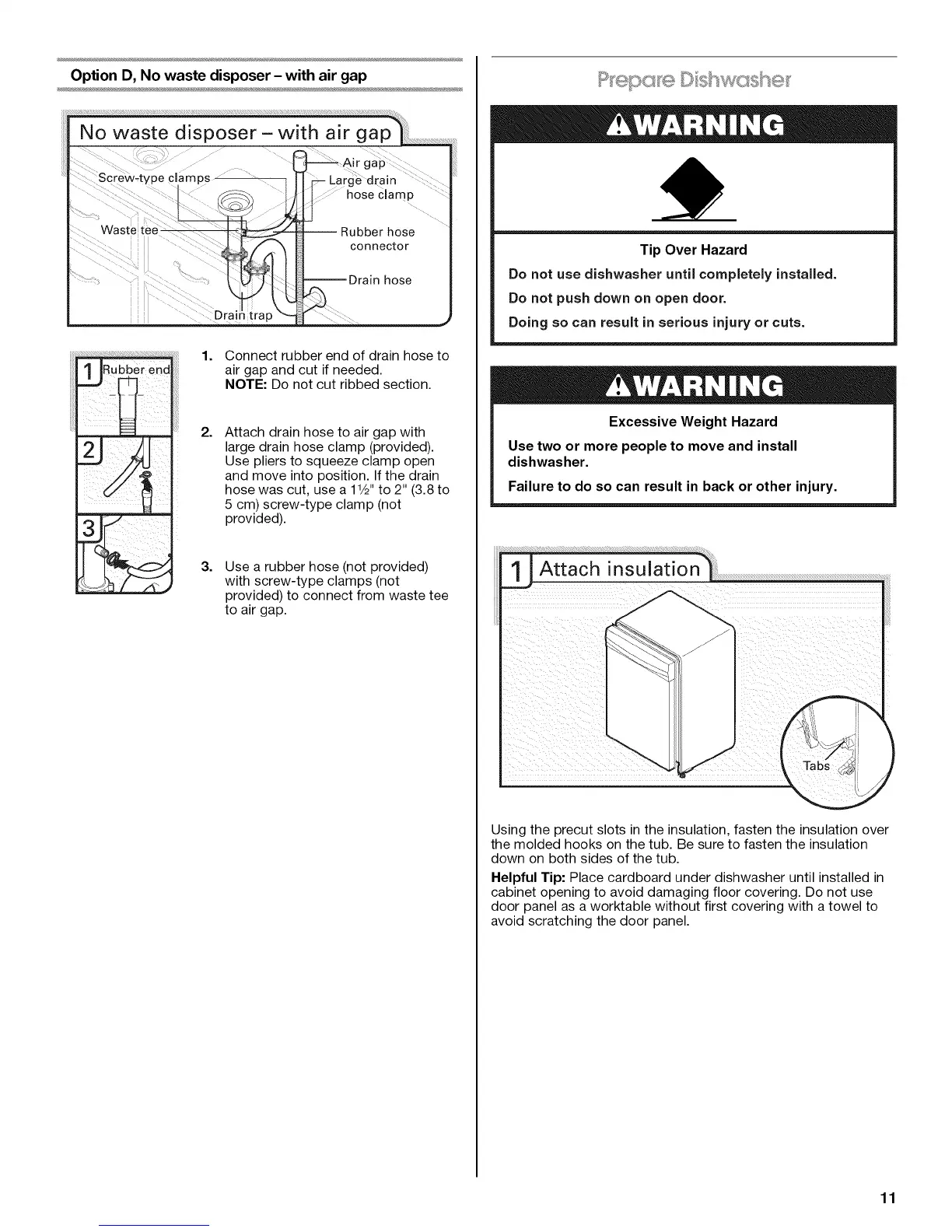

Option D, No waste disposer - with air gap
1. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
2=
Attach drain hose to air gap with
large drain hose clamp (provided).
Use pliers to squeeze clamp open
and move into position. If the drain
hose was cut, use a 11/2'' to 2" (3.8 to
5 cm) screw-type clamp (not
provided).
3=
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from waste tee
to air gap.
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Using the precut slots in the insulation, fasten the insulation over
the molded hooks on the tub. Be sure to fasten the insulation
down on both sides of the tub.
Helpful Tip: Place cardboard under dishwasher until installed in
cabinet opening to avoid damaging floor covering. Do not use
door panel as a worktable without first covering with a towel to
avoid scratching the door panel.
