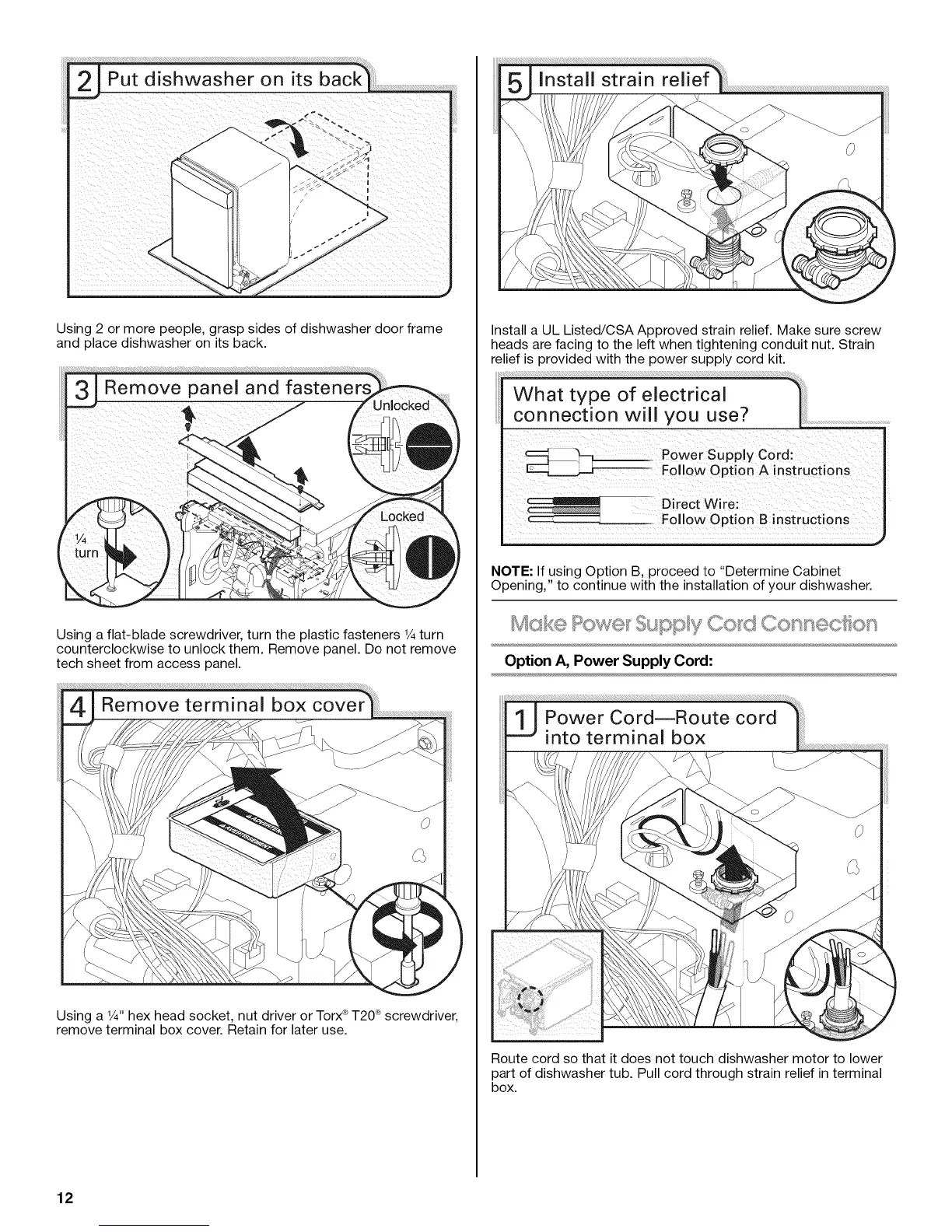

Using 2 or more people, grasp sides of dishwasher door frame
and place dishwasher on its back.
Removea di!asten
iiiii!iiiII ! iiiiiiiiiiI!iiiiiiiiiill_ @_
_!tun Q
Using a flat-blade screwdriver, turn the plastic fasteners 1/4turn
counterclockwise to unlock them. Remove panel. Do not remove
tech sheet from access panel.
® ®
Using a 1/4"hex head socket, nut driver or Torx' T20 screwdriver,
remove terminal box cover. Retain for later use.
Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
........... /
connection will you use?
Direct Wire:
: Follow Option B instructions
NOTE: If using Option B, proceed to "Determine Cabinet
Opening," to continue with the installation of your dishwasher.
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor to lower
part of dishwasher tub. Pull cord through strain relief in terminal
box.
