CABINET CUTOUT DIMENSIONS
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Page 2 of 2

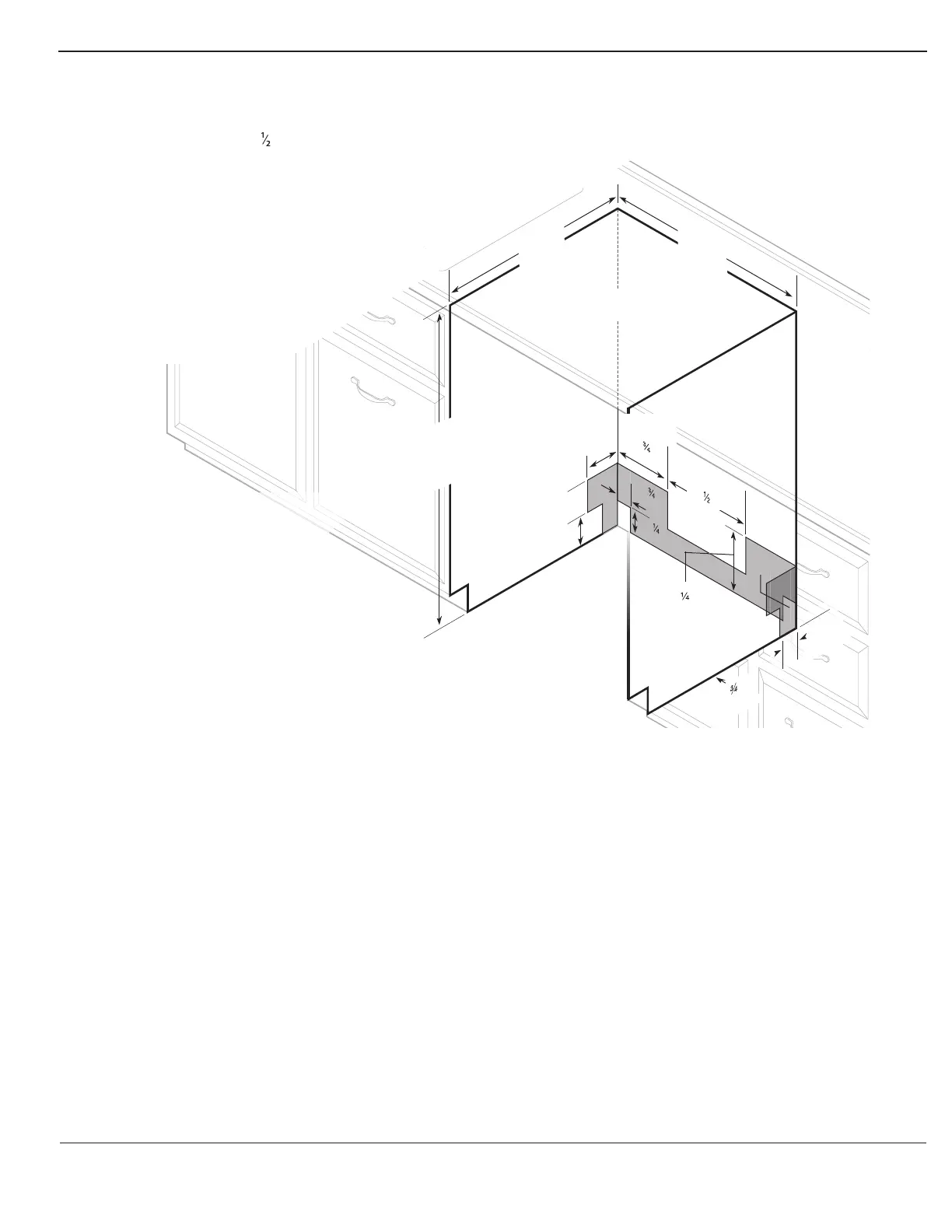

NOTE: Shaded areas of cabinet walls show where utility
connections may be installed.
**Measure from the lowest point on the underside of the
countertop. May be reduced to 33 "
(85.1 cm) by
removing the rear leveling legs from dishwasher.
**Minimum, measured from narrowest point of opening.
Check that all surfaces have no protrusions
that would prohibit dishwasher installation.
Clear
Area
34"
(86.4 cm)
min
D
4"
(10.2 cm)
3"
(7.6 cm)
6
"
(17.2 cm)
10
"
(26.7 cm)
2"
(5.1 cm)
1
"
(4.4 cm)
1
"
(4.4 cm)
2
"
(6.4 cm)
6 "
(15.9 cm)
24 "
(61 cm)
24 "
(61 cm)
E
W10741197A-D-MT
05/2016
