Maytag MDE18MNAY - Electric Dryer Electrical Connections

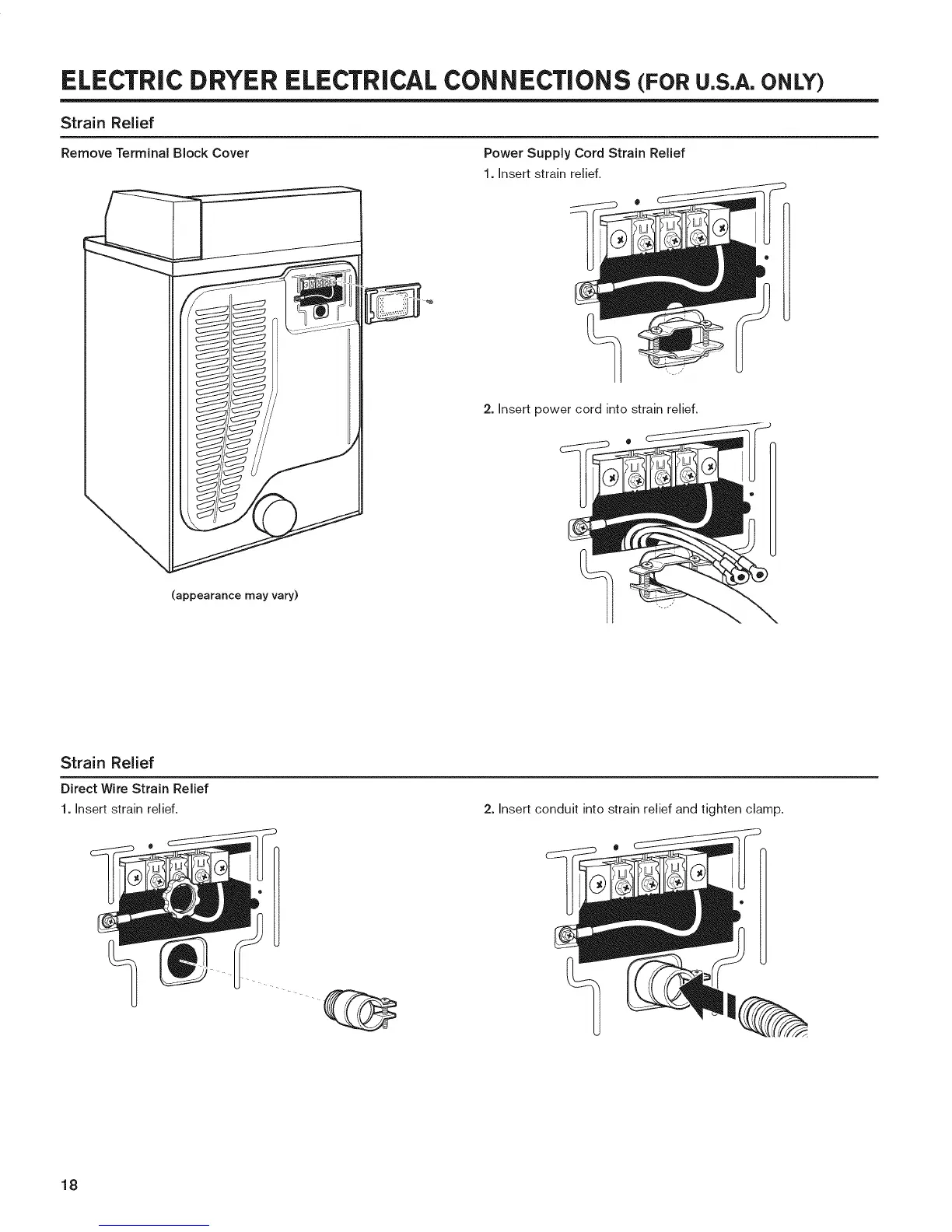

ELECTRIC DRYER ELECTRICALCONNECTIONS (FORU.S.A.ONLY)
Power Supply Cord Strain Relief
1. Insert strain relief.
Strain Relief
RemoveTerminal Block Cover
N
(appearance may vary)
2. Insert power cord into strain relief.
0
Strain Relief
Direct Wire Strain Relief
1. Insert strain relief.
2. Insert conduit into strain relief and tighten damp.
1
18
