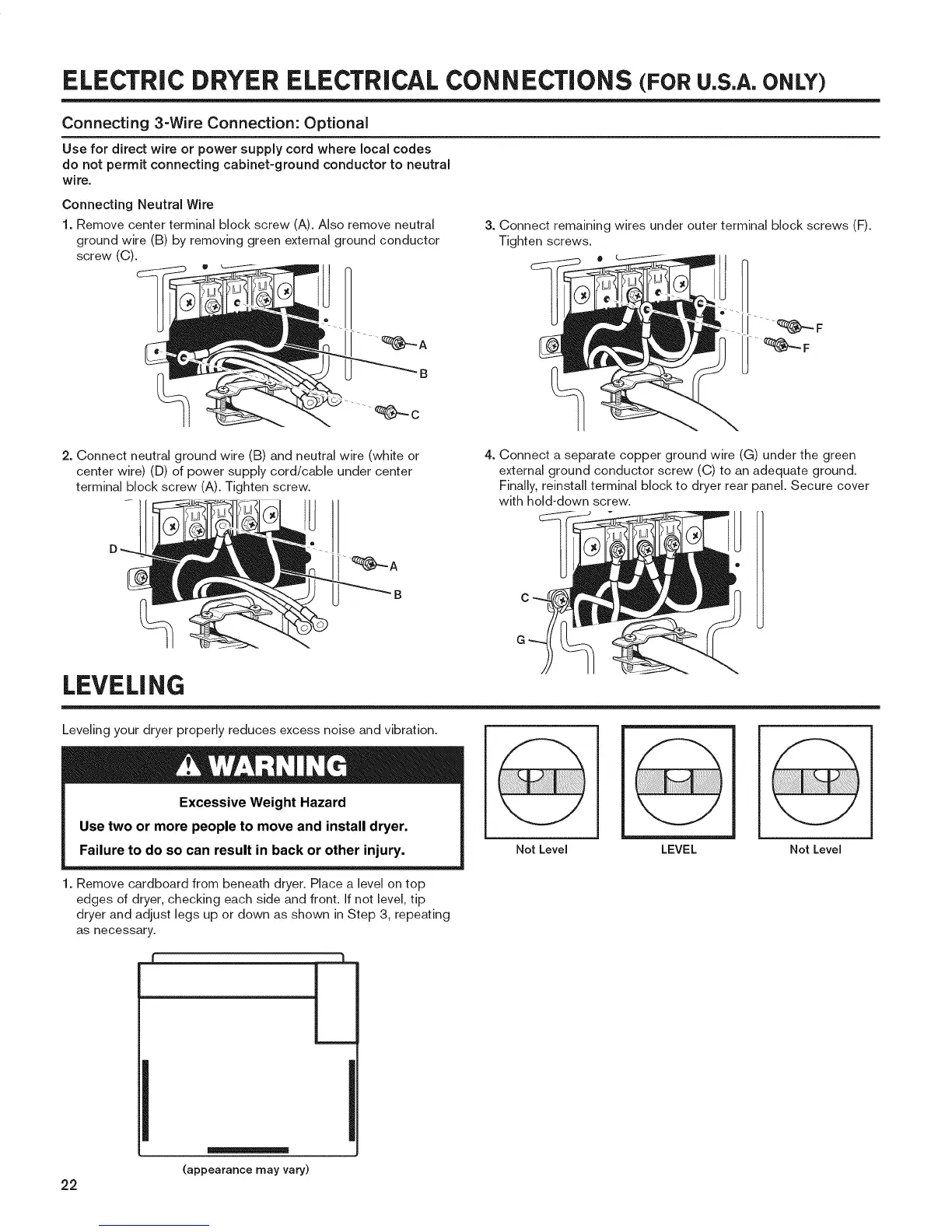

ELECTRIC DRYER ELECTRICALCONNECTIONS (FORU.S.A.ONLY)
Connecting 3-Wire Connection: Optional
Use for direct wire or power supply cord where local codes
do not permit connecting cabinet-ground conductor to neutral
wi re.
Connecting Neutral Wire
1. Remove center terminal block screw (A). Also remove neutral
3. Connect remaining wires under outer terminal block screws (F).
ground wire (B) by removing green external ground conductor
screw (C).
.
Tighten screws.
2. Connect neutral ground wire (B) and neutral wire (white or
center wire) (D) of power supply cord/cable under center
terminal block screw (A). Tighten screw.
4. Connect a separate copper ground wire (G) under the green
external ground conductor screw (C) to an adequate ground.
Finally, reinstall terminal block to dryer rear panel. Secure cover
with hold-down screw.
LEVELING
Leveling your dryer properly reduces excess noise and vibration.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury. Not Level LEVEL Not Level
1. Remove cardboard from beneath dryer. Place a level on top
edges of dryer, checking each side and front. If not level, tip
dryer and adjust legs up or down as shown in Step 3, repeating
as necessary.
f
(appearance may vary)
22
