16

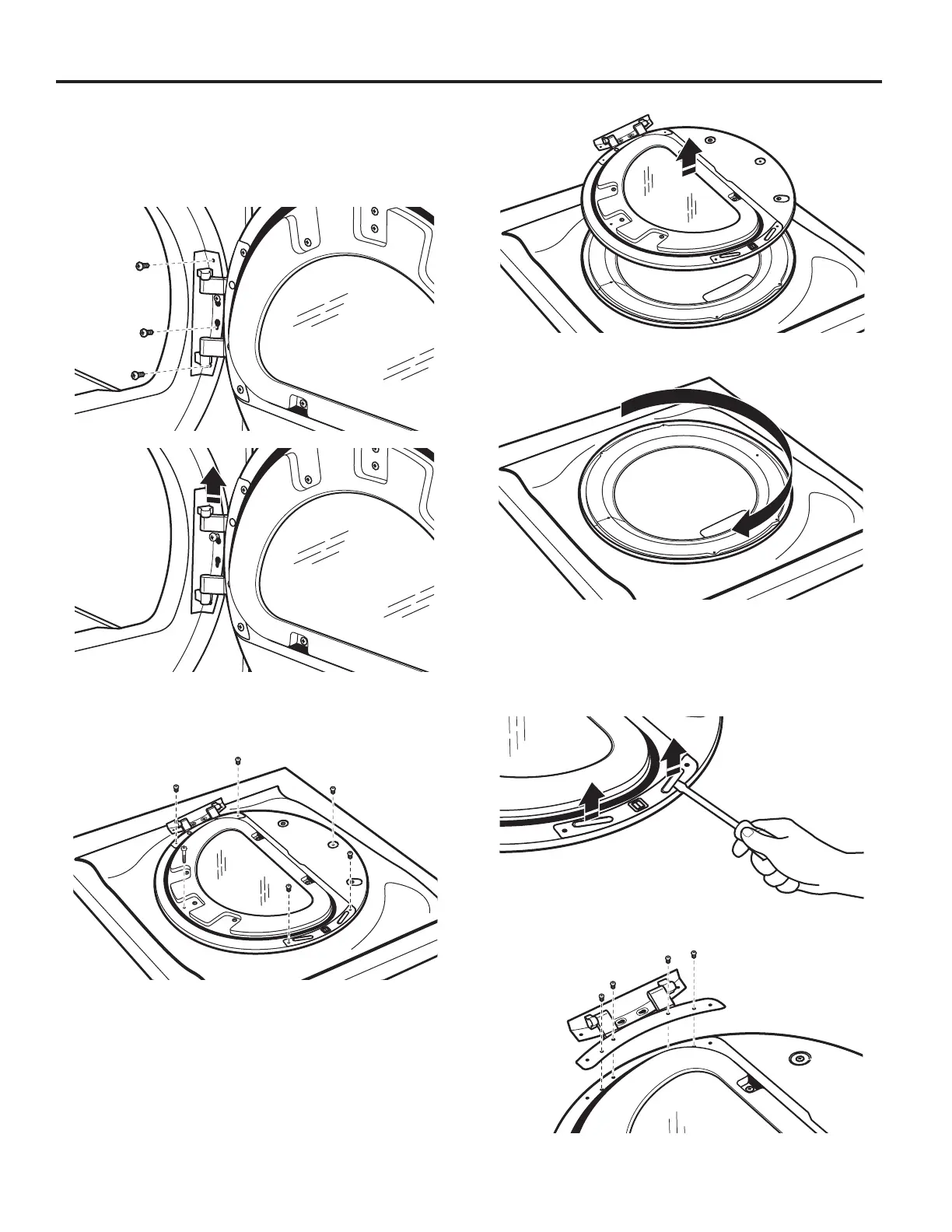

REVERSING DOOR SWING (OPTIONAL)
Remove the Door Assembly
1. Place a towel or soft cloth on top of dryer or workspace
to avoid scratching of the surface.
2. Remove 3 of the 4 screws that hold the door hinge on the
front panel of the dryer. Partially loosen the remaining screw
with keyhole opening and lift the door off the screw.
3. Lay the door assembly on a previously prepared at surface
with the inside (inner door assembly) facing up, and remove
6 Phillips-head screws to release outer door assembly from
inner door assembly.
NOTE: It is important that you remove only 6 indicated screws.
4. Lift the inner door assembly off outer door assembly.
5. Rotate outer door 180°.
Reverse Hinge
1. Use a small at-blade screwdriver to remove 2 plug strips
from the inner door. Slide the head of the screwdriver under
the plugs, without scratching inner door surface, and lift
up strip.
2. Remove the 4 screws that attach to inner door hinge.
To Next Page
