Maytag MDE9700A Series User Manual

Component Testing Information
!
WARNING
To avoid risk of electrical shock, personal injury or death, disconnect power to unit before servicing, unless testing
requires power.
©2005 Maytag Services 16025911 Rev. 0 15
Function 1M 2M 3M 5M 6M
Start
Run
= Contact closed
123
45

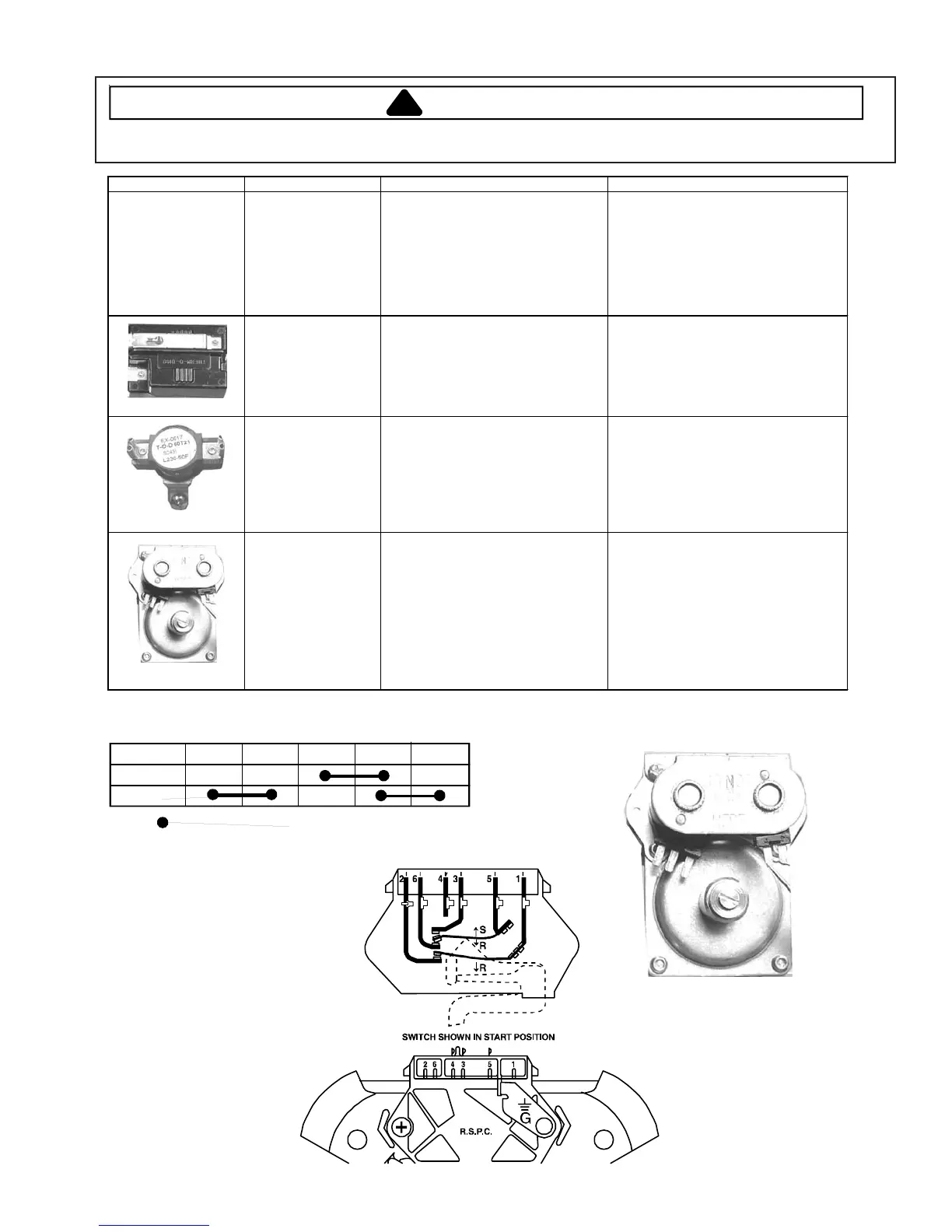

Illustration Component Test Procedure Results
Sensor Bars Unplug harness connector and test
from wire insertion side.
Pin #4 to Pin # 5 of CN6
Infinity dry load 190ohms
±
10% wet
load
Radiant Sensor Unplug connectors and test sensor
terminals.
Closed
TH2 Safety
Thermostat
Unplug connectors and test
Thermostat terminals. Less than 1ohm
Gas Valve Unplug connectors and test valve
terminals.
Check across terminals #1 and #3
(Booster Coil).
Check across terminals #1 and #2
(Holding Coil).
Check across terminals #2 and #3
(Both coils in series). Check across
terminals #4 and #5 (Secondary Coil).
550ohms
1350ohms
1900ohms
1300ohms
Motor Contacts
Centrifugal Switch (Motor)
Gas Valve
