To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING

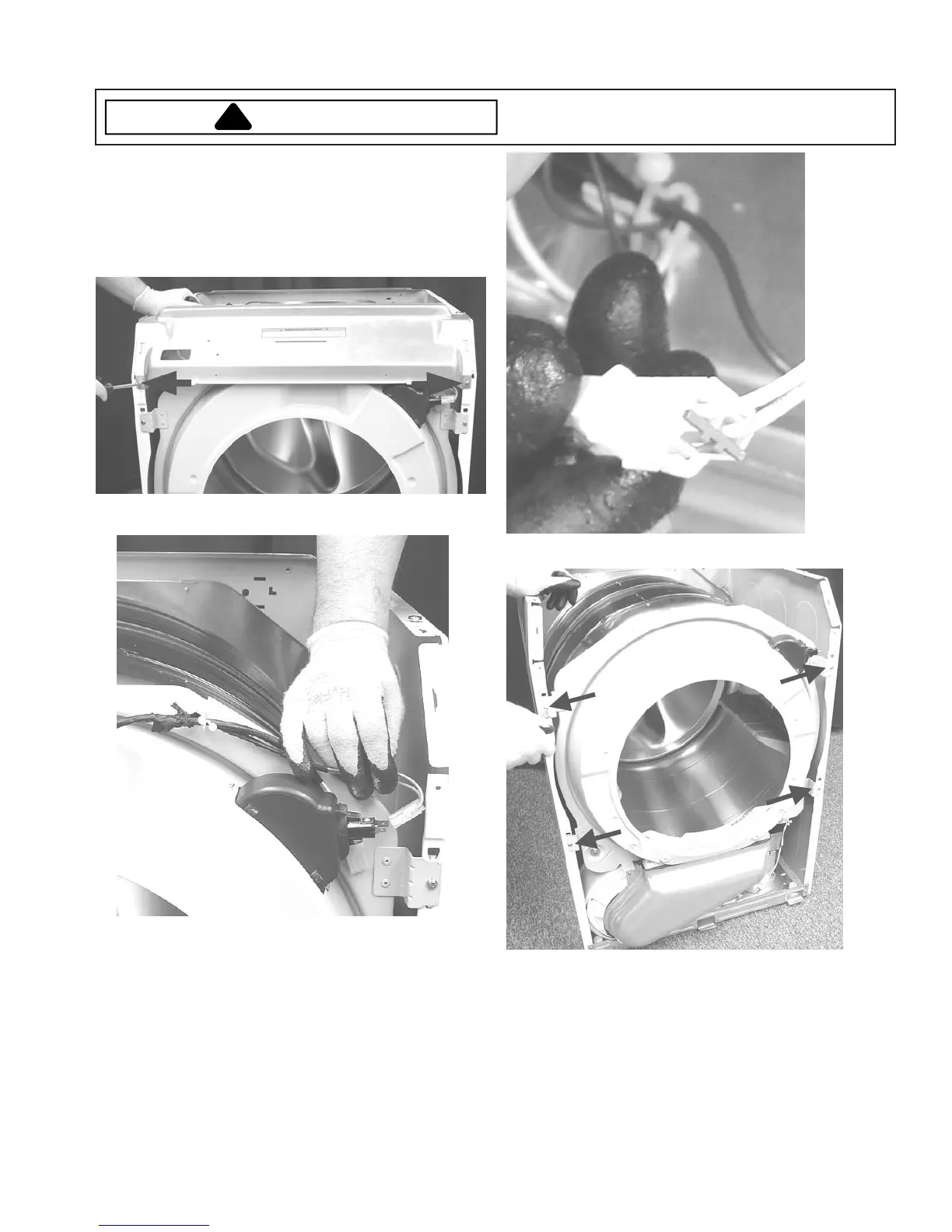

Front Bulkhead Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove screws retaining Console Back Cover.
6. Disconnect Interior Light wiring harness.
7. Disconnect Moisture Sensor wiring harness.
8. Remove four Bulkhead retaining screws
To Next Page
