©2005 Maytag Services 16025911 Rev. 0 23
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

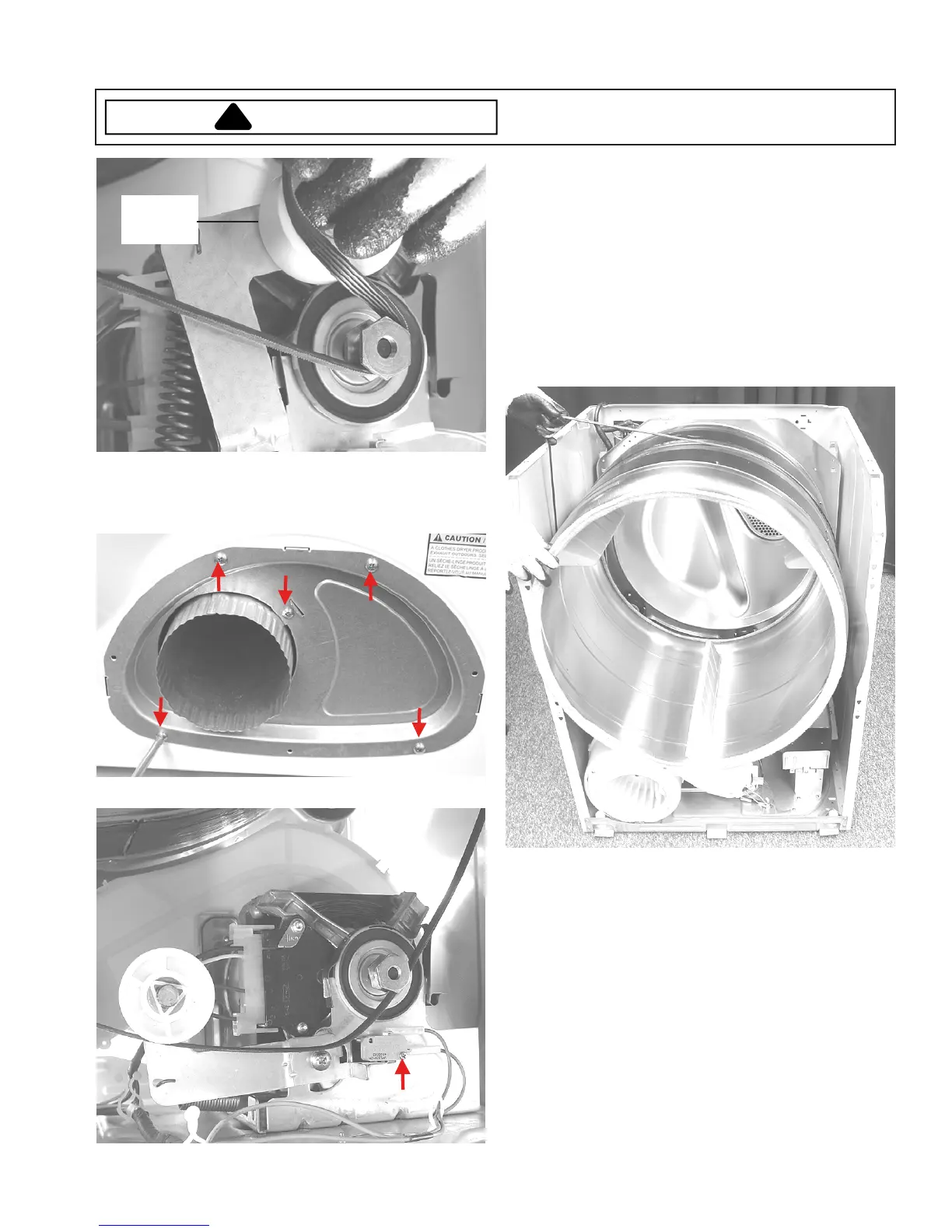

Disassembly Procedures
WARNING
!
Belt Switch Removal
1. Disconnect power supply to unit.
2. Remove five screws retaining Vent Tube cover.
3. Remove Belt Switch mounting screw.
Drum Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove Console Back Cover.
6. Remove Front Bulkhead.
7. Remove belt from Idler Pulley.
8. Grasp the Drum with one hand and the belt with the
other. Lift the Drum and slide out the front. Carefully
spread the cabinet as needed to gain additional
clearance.
Motor/Blower Assembly Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove Console Back Cover.
6. Remove Belt from Idler Pulley.
7. Remove Drum.
8. Remove the two screws securing the Blower Intake
Panel to the Blower Housing. Remove Blower Intake
Panel.
Pull Idler
Pulley
Belt
Switch
To Next Page
