Connect neutral ground wire (E) and neutral wire (white or
center wire) (C) of power supply cord or cable under center,
terminal block screw (B). Tighten screw.
Place ends of remaining wires under outer terminal block
screws. Tighten screws.
Connect a separate copper ground wire (G) under the green
external ground conductor screw (A) to an adequate ground.
Finally, reinsert tab of terminal block cover into slot of dryer
rear panel. Secure cover with hold-down screw. Now, go to
“Venting Requirements.”

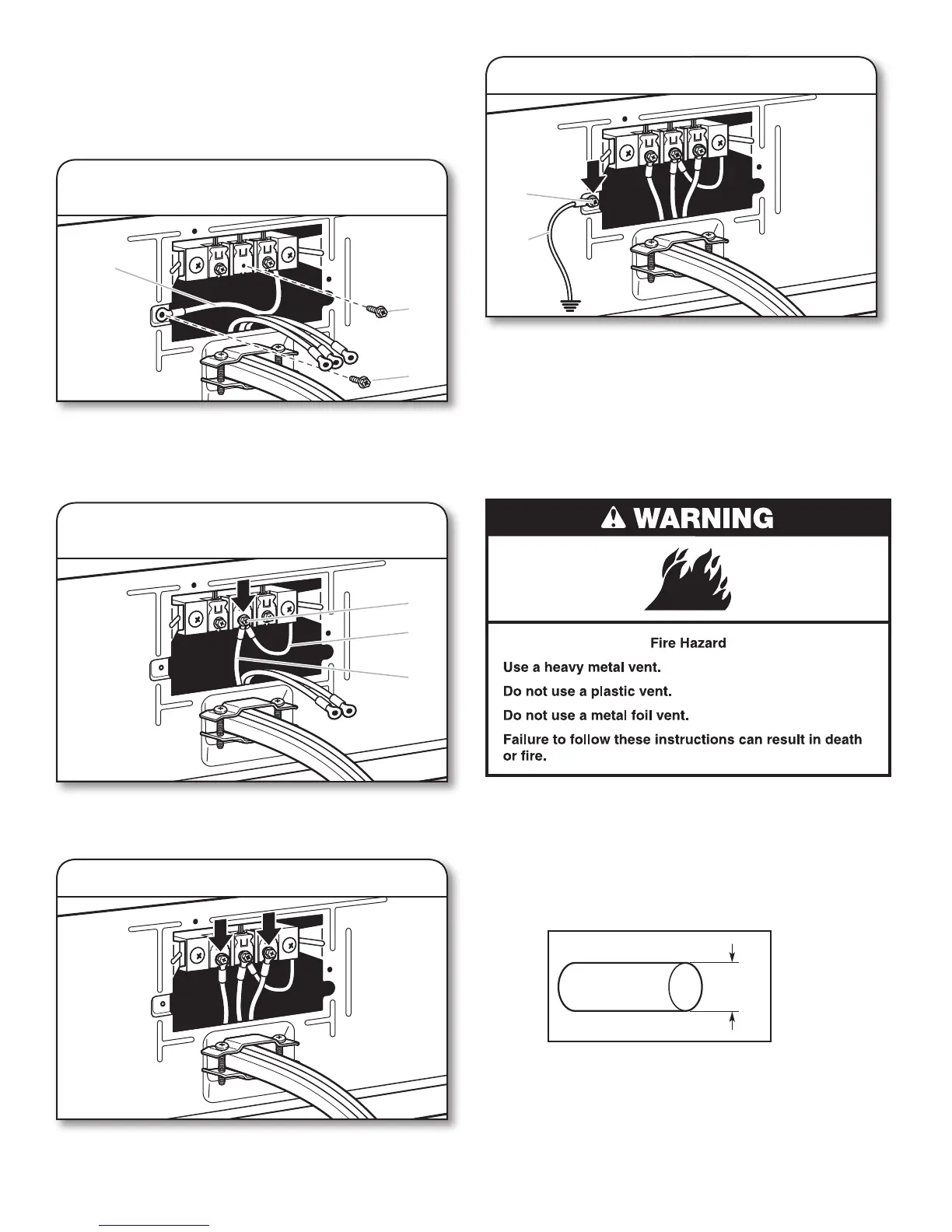

Optional External Ground for 3-Wire
Connection (Power Supply Cord Shown)
IMPORTANT: You must verify with a qualied electrician
that this grounding method is acceptable before connecting.
2. Connect neutral ground wire and
neutral wire
C
E
B
1. Prepare to connect neutral ground
wire and neutral wire
E
B
A
3. Connect remaining wires
4. Connect external ground wire
G
A
Install the correct strain relief for your electrical connection
method, as shown on page 8 or 10.
Remove center terminal block screw (B). Remove neutral ground
wire (E) from green external ground conductor screw (A).
VENTING
Venting Requirements
WARNING: To reduce the risk of re, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
Dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, attic, crawlspace, or a concealed space
of a building. Only rigid or exible metal vent shall be used for
exhausting.
4"
(102 mm)
4" (102 mm) heavy metal exhaust vent
■ Only a 4" (102 mm) heavy metal exhaust vent and clamps
may be used.
■ Do not use plastic or metal foil vent.
To Next Page
