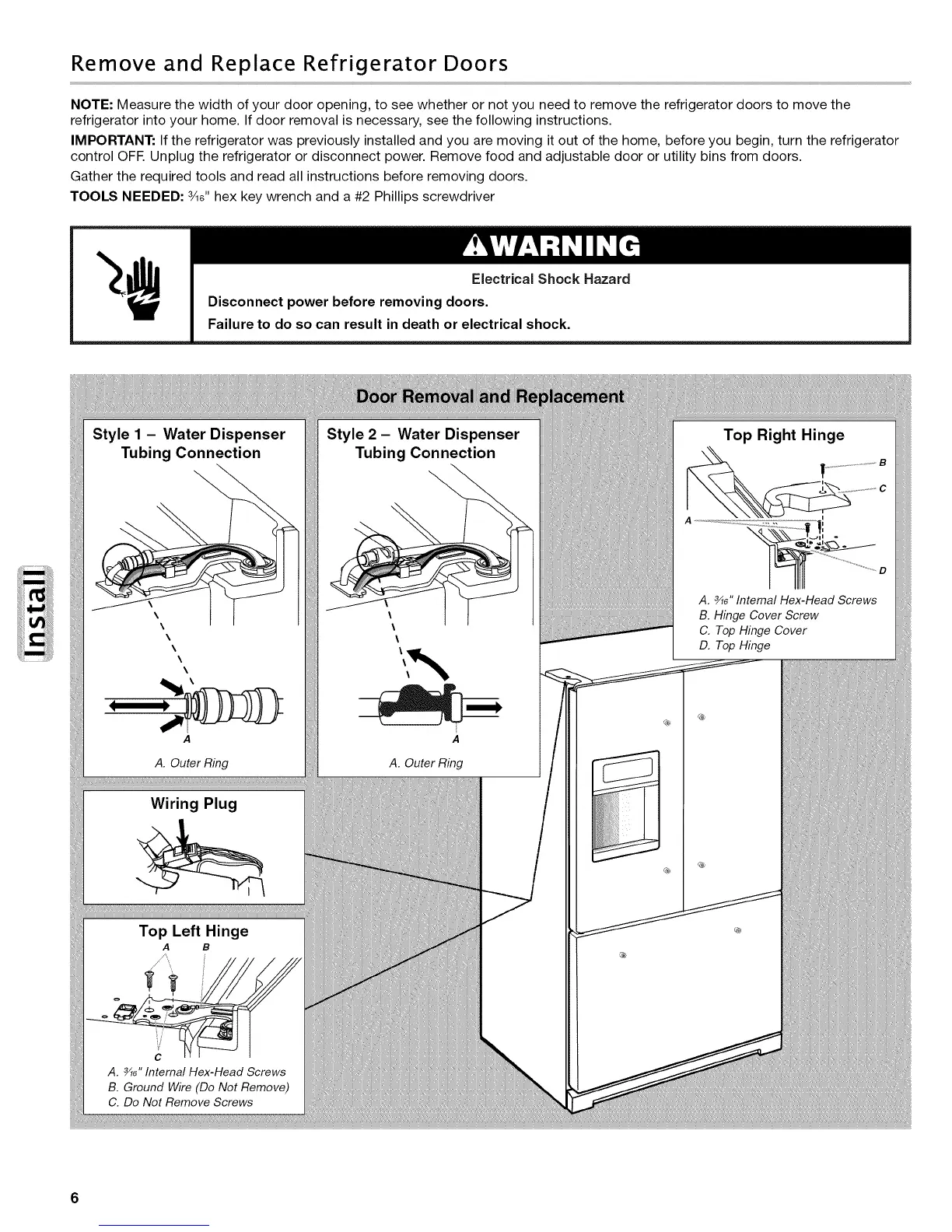

Remove and Replace Refrigerator Doors
NOTE: Measure the width of your door opening, to see whether or not you need to remove the refrigerator doors to move the
refrigerator into your home. If door removal is necessary, see the following instructions.
IMPORTANT: If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator
control OFE Unplug the refrigerator or disconnect power. Remove food and adjustable door or utility bins from doors.
Gather the required tools and read all instructions before removing doors.
TOOLS NEEDED: 3/le" hex key wrench and a #2 Phillips screwdriver
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
!
iiiiiiiilil i!iiiiiii
Style 1 - Water Dispenser
Tubing Connection
\
\
\
\
\
\
\
\
A. Outer Ring
Wiring Plug
Top Left Hinge
A B
C
A. _6" Internal Hex-Head Screws
B. Ground Wire(Do Not Remove)
C. Do Not RemoveScrews
Style 2 - Water Dispenser
Tubing Connection
\
\
\
\
A
A. Outer Ring
Top Right Hinge
.......................... B
N
A. _8" Internal Hex-Head Screws
B. Hinge Cover Screw
C. Top Hinge Cover
D. TopHinge
6
To Next Page
