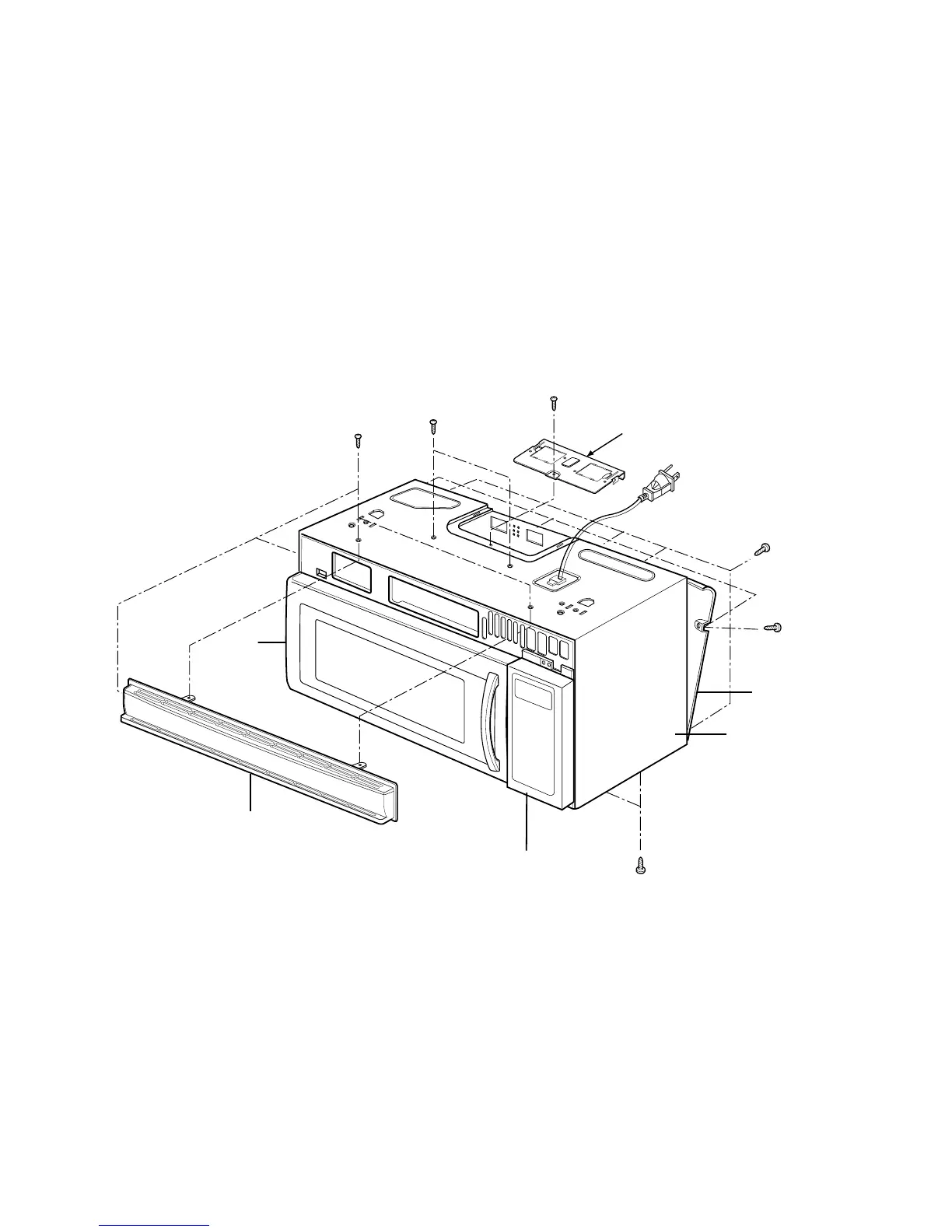

B. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the out case.
(2) Remove two screws securing it to the air duct.
(3) Remove the mounting plate by turning the screws
(1 or 2 screws) securing it to the out case.
(4) Remove two screws on the left central edge and
one screws on the right central edge of Base
plate. Remove the Mount, All from the out case by
removing one screw securing it to the out case.
(5) Remove the outcase with disconnecting power
cord connector.
7-6
