H. ASSEMBLING DOOR
(1) When mounting the door assembly to the oven
assembly, be sure to adjust the door assembly
parallel to the chassis. Also adjust so the door has no
play between the inner door surface and oven frame
assembly. If the door assembly is not mounted
properly, microwaves may leak from the clearance
between the door and the oven.
I. REMOVING THE VENTILATION MOTOR
(1) Remove the mounting plate by loosening
mounting plate screws (1 or 2 screws)
securing it to the back plate.
(See Figure 18)
(2) Remove MOUNT ALL loosening one screw
loosening one screw securing the ventilation Motor
and back plate. (See Figure 19-a)
(3) Carefully pull the ventilation motor ASS'Y out of
the microwave oven. (See Figure 19-b)
J. REPLACING THE HUMIDITY SENSOR
(For sensor model only)
(1) Remove the sensor by removing two screws
securing it to the air duct. (See Figure 19-c)
(2) Mount the new humidity sensor to the air duct.
K. REMOVING GRILL HEATER (Figure 20)
(1) Remove the out case.
(2) Remove the air duct by removing six screws
securing it to the oven front plate, guide air and
glasswool-L cover.
(3) Disconnect the wire leads of air duct.
(4) Remove the upper insulator by removing one
screw.
(5) Remove four screws securing the heater terminal
and two net screws securing the heater barrier.
(6) Remove the heater holding bracket and remove the
grill heater from the cavity.
7-10
Space
(1 or 2 screws)
MOUNT, ALL

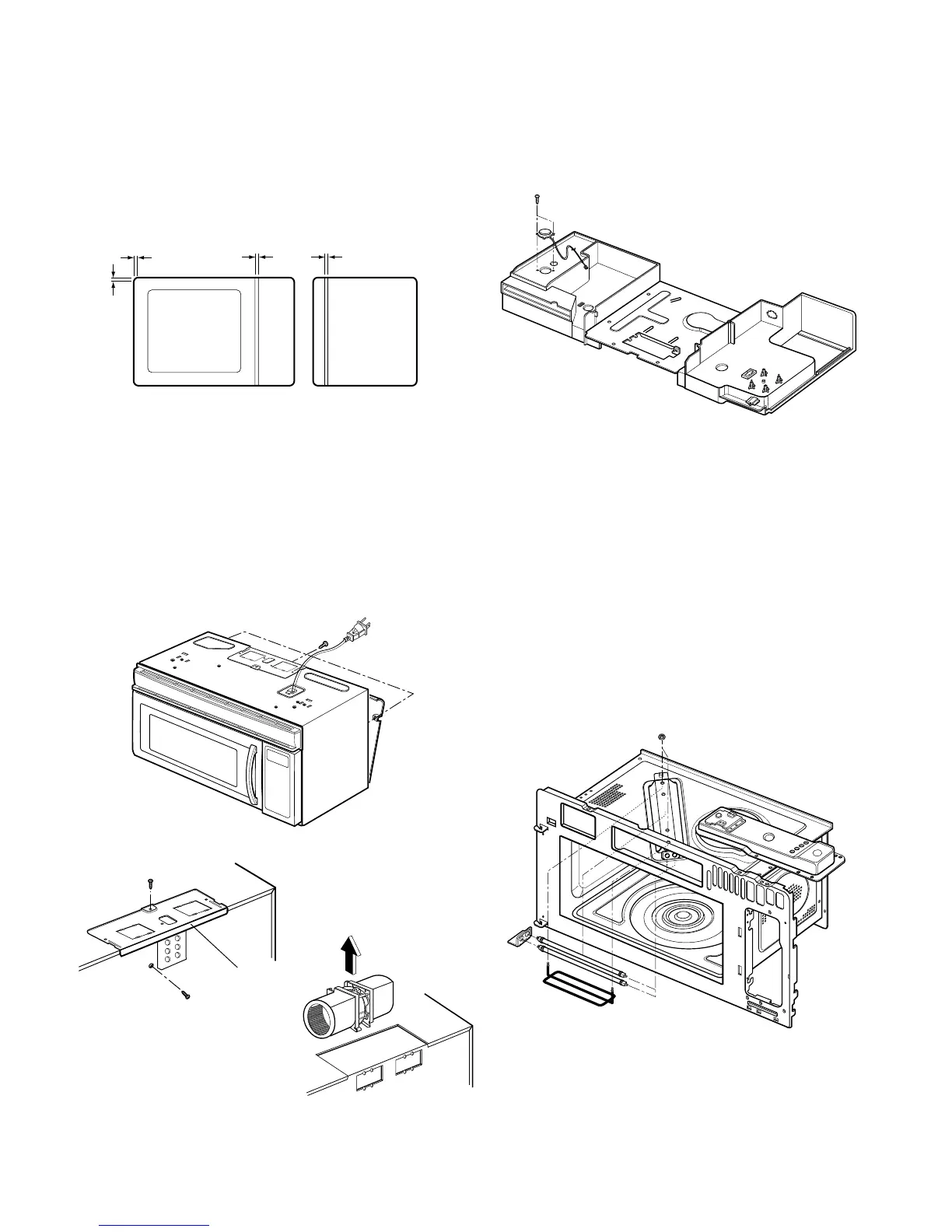

Figure 18
Figure 19-a
Figure 19-b
Figure 20
Figure 19-c
