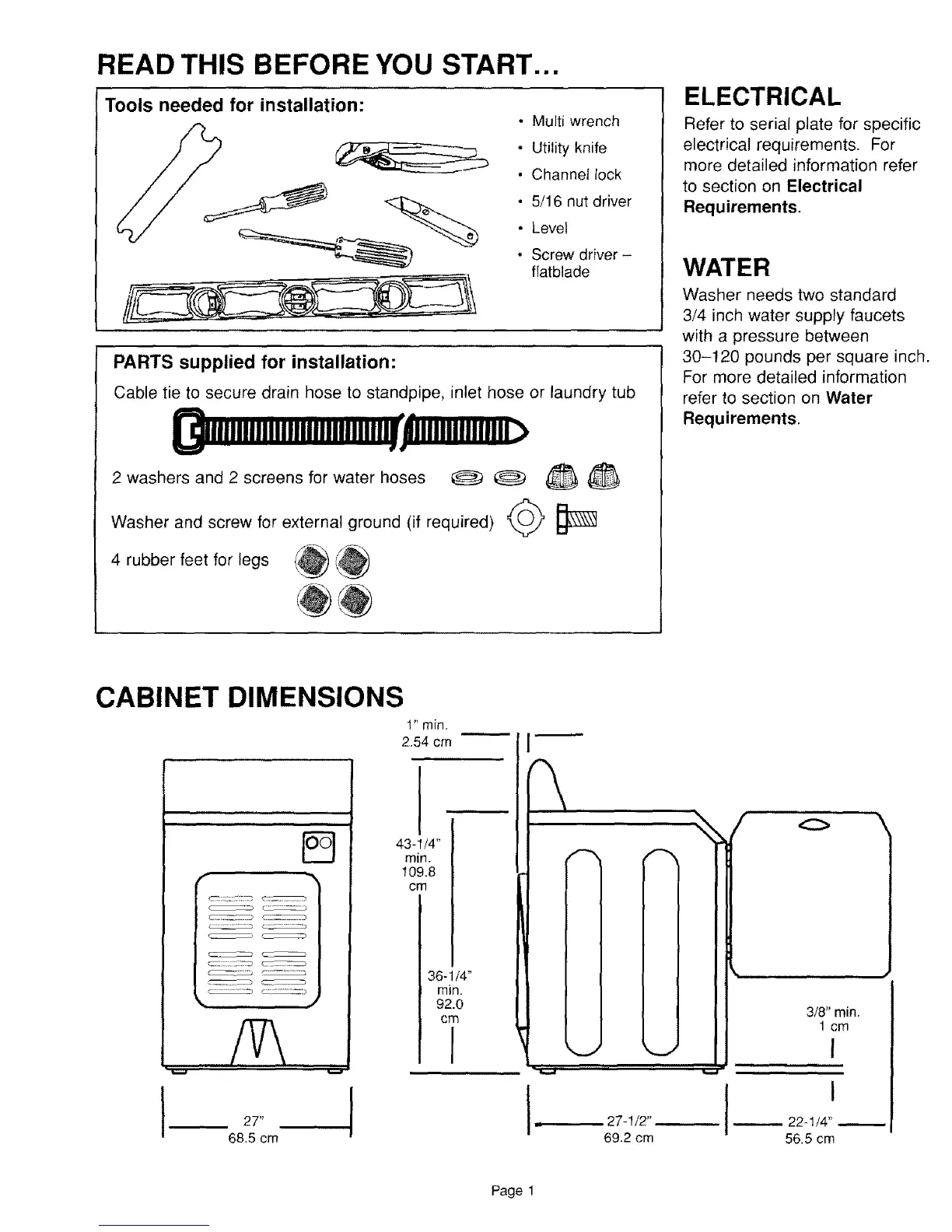

READ THIS BEFORE YOU START...
Tools needed for installation:
• Multi wrench
• Utility knife
• Channel lock
• 5/16 nut driver
• Level
• Screw driver-
fiatblade
PARTS supplied for installation:
Cable tie to secure drain hose to standpipe, inlet hose or laundry tub
mm,m.=,.ii,l,,Ii.m jUUUl=l=
2 washers and 2 screens for water hoses @ @
Washer and screw for external ground (if required) _ _]
4 rubber feet for legs _ _ ....
ELECTRICAL
Refer to serial plate for specific
electrical requirements. For
more detailed information refer
to section on Electrical
Requirements.
WATER
Washer needs two standard
3/4 inch water supply faucets
with a pressure between
30-120 pounds per square inch.
For more detailed information
refer to section on Water
Requirements.
CABINET DIMENSIONS
27"
68.5 cm
I
1" min,
2.54 cm
I
43-1/4"
min.
109.8
cm
36-1/4"
rain.
92.0
cm
I
3/8" min.
1 cm
I
I '
22q/4" _
56.5 cm
Page 1
