12
3-wire receptacle (NEMA
type 10-30R)
3-prong plug
Spade terminals with
upturned ends
Ring terminals
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.

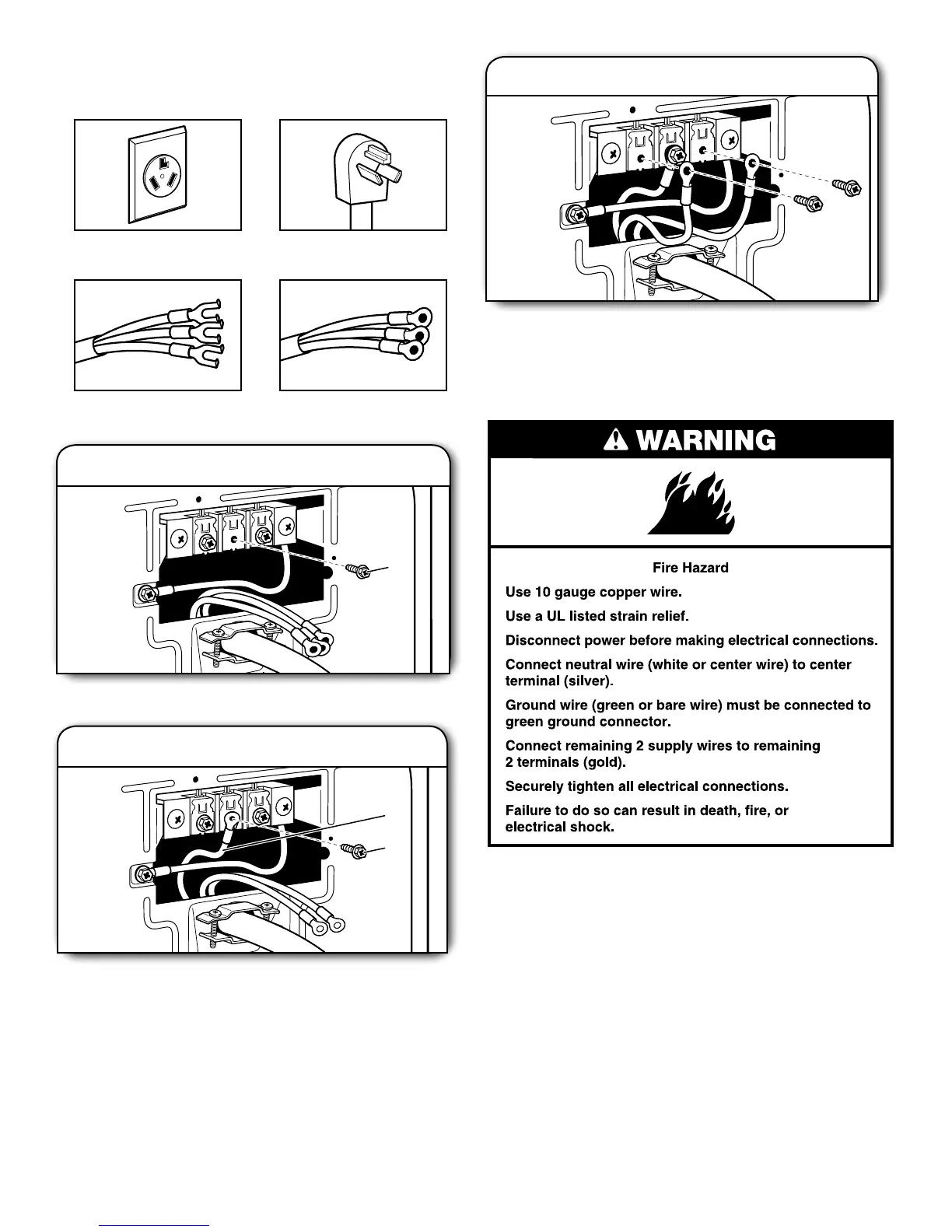

3-wire Power Supply Cord Connection
3. Connect remaining wires
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to “Venting Requirements.”
2. Connect neutral wire
Connect neutral wire (white or center) (C) of power supply cord
to center terminal block screw (B). Tighten screw.
B
C
Remove center terminal block screw (B).
B
1. Remove center screw
DIRECT WIRE CONNECTION
To Next Page
