23

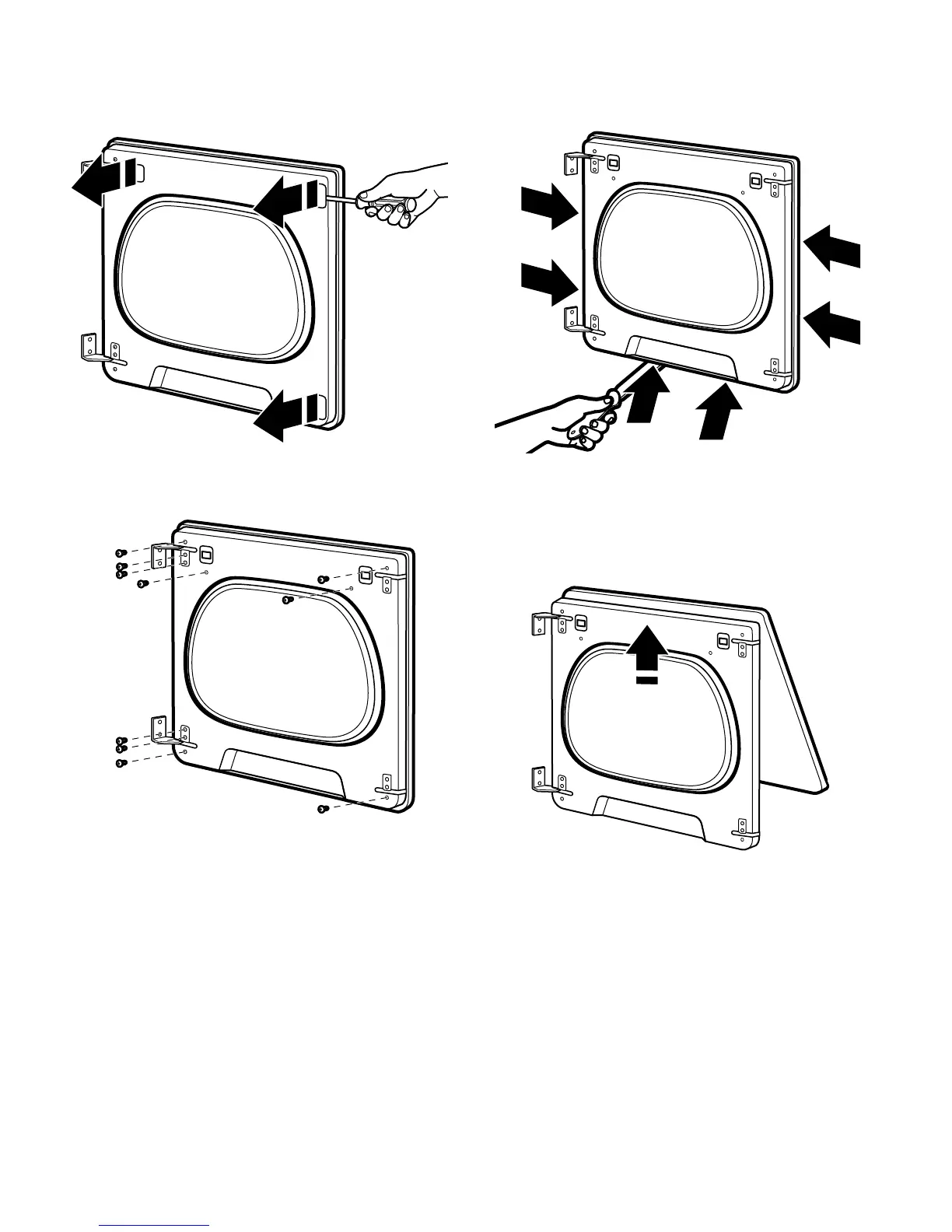

Remove the door assembly
1. Remove the 3 plugs with a at head screw driver. There
is a cut out to stick the screwdriver under to pop out.
2. Remove the 10 screws from the dryer door and set
screws off to the side.
3. Remove the inner door by taking a plastic putty knife to
separate the sides and bottom of the dryer door and trim.
There are 2 snaps on left, right, and bottom of door. Insert
the putty knife next to the snaps.
4. When you have the door separated from the frame use a putty
knife and lift up in the center tab and then pull door towards
you and out. Lay the door on a at, covered surface, with the
inside of the door facing up.
To Next Page
